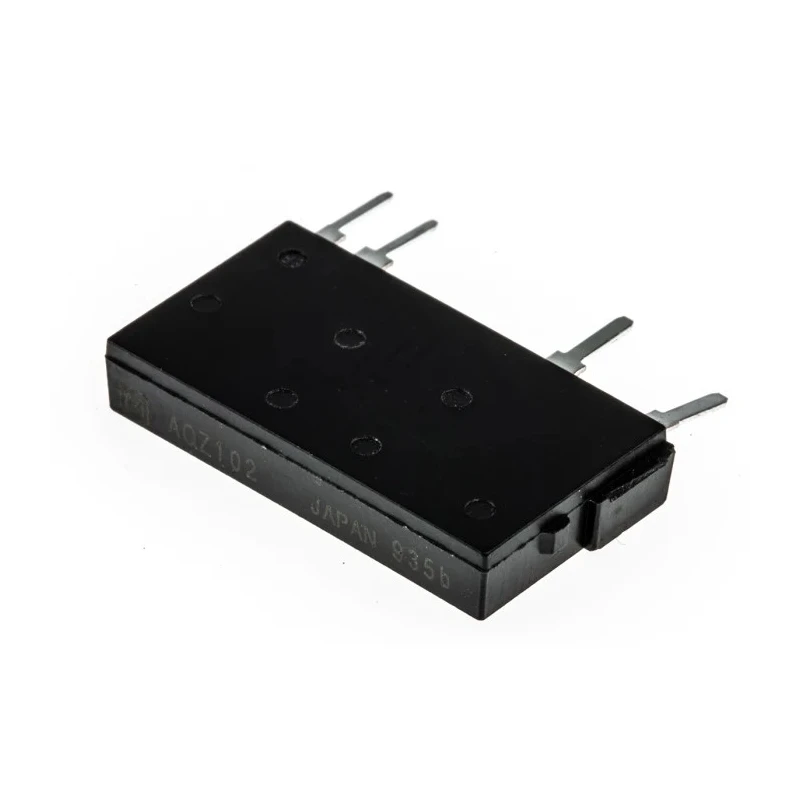

Panasonic PhotoMOS AQZ Series Solid State Relay 4 A Load 60 V PCB Mount AQZ102
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 12.5mm |
| Length | 21mm |
| Model | AQZ102 |
| Width | 3.5mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | PhotoMOS AQZ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | SIL-4 |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Maximum Load Current | 4A |
| Standards/Approvals | VDE, cUL, UL, RoHS |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | 0V |
| Minimum Control Voltage | 1.5V dc |
| Maximum Control Voltage | 5V dc |
| Off State Leakage Current | 10μA |
| On State Resistance | 90mΩ |
Key Features
- The device features a PhotoMOS AQZ series design suitable for high-density mounting.
- Rated for a maximum load current of 4 A and maximum load voltage of 60 V.
- Operates with a control voltage range of 1.5 V dc minimum to 5 V dc maximum.
- Equipped with low on-state resistance of 90 milliohms ensuring efficient conduction.
- Compact SIL-4 package with dimensions W 3.5 mm x D 21 mm x H 12.5 mm.
- Operates reliably within temperature range from -40°C to 85°C.
- Output type is MOSFET with single-pole single-throw (SPST) contact configuration.
- Ideal for applications including industrial machines, railway systems, and traffic signal control.
Product Description
Panasonic AQZ102 PhotoMOS AQZ Series solid state relay is a PCB mount device designed for use in industrial machines, railroad systems, traffic lights, and measuring instruments. This relay supports a maximum load current of 4 A and maximum load voltage of 60 V, controlled by a low-level DC voltage between 1.5 V and 5 V, making it suitable for precise control applications.
The slim SIL-4 package (3.5 mm width, 21 mm length, 12.5 mm height) enables high-density PCB mounting. With its MOSFET output and SPST contact configuration, the relay provides low on-state resistance (90 milliohms) for efficient power handling and minimal heat dissipation.
Designed to operate reliably across a wide temperature range from -40°C to 85°C, the AQZ102 maintains excellent electrical performance with an off-state leakage current as low as 10 μA. This solid state relay meets international standards including UL, cUL, VDE, and RoHS, ensuring compliance for industrial safety and environmental requirements.
Manufactured in Japan, the AQZ102 offers assured quality and durability, making it highly suitable for demanding industrial automation and control environments. Typical applications include use in railroad systems, traffic lights, measuring instruments, and various industrial machines requiring compact, reliable solid-state switching.
The PhotoMOS AQZ series provides slim and high-density PCB mounting options. Supports up to 4 A maximum load current and 60 V maximum load voltage. Features low control voltage requirement from 1.5 V to 5 V dc. Low on-state resistance of 90 milliohms ensures efficient operation.
Compact SIL-4 package improves board space utilization. Wide operating temperature range from -40°C to 85°C. MOSFET output with SPST configuration for reliable switching. Certified to UL, cUL, VDE, and RoHS standards. Low off-state leakage current of 10 μA reduces power loss.
Ideal for industrial automation and traffic control applications.
Navigate EnvMart's Electronics & Electricals category for more quality Panasonic Solid State Relays and industrial automation components to find optimal solutions for your industrial control and signal conditioning needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AQZ102 supports a maximum load current of 4 A and a maximum load voltage of 60 V.
It operates with a control voltage range of 1.5 V dc minimum to 5 V dc maximum.
This model features a MOSFET output with a single-pole single-throw (SPST) contact configuration.
The dimensions of the AQZ102 are 3.5 mm in width, 21 mm in length, and 12.5 mm in height.
It has a low on-state resistance of 90 milliohms, ensuring efficient conduction.
The AQZ102 operates reliably within a temperature range from -40°C to 85°C.
The off-state leakage current is as low as 10 μA, which helps reduce power loss.
This relay is designed for PCB mounting, utilizing a compact SIL-4 package.
It meets several international standards including UL, cUL, VDE, and RoHS.
This solid state relay is ideal for applications in industrial machines, railway systems, and traffic signal control.
The terminal type for this model is a PCB terminal, suitable for direct mounting on printed circuit boards.
It is part of the PhotoMOS AQZ series, which is designed for high-density mounting.
