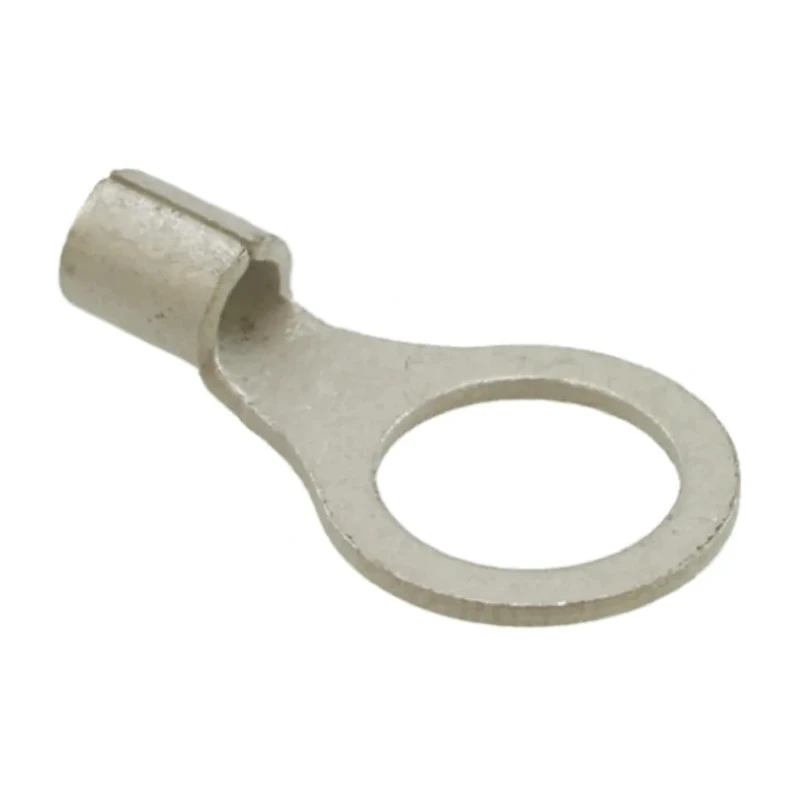

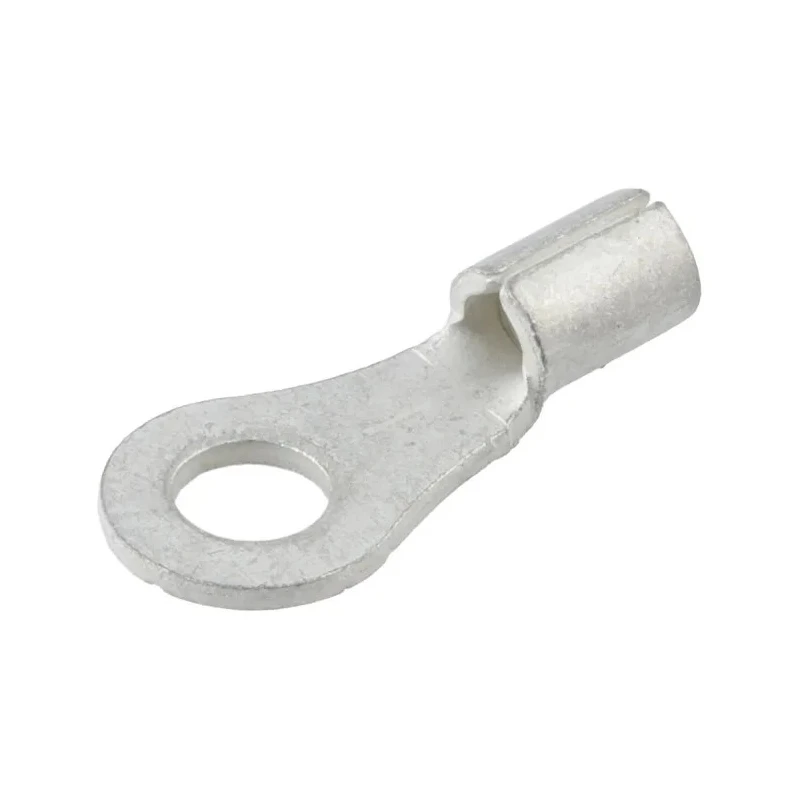

Molex Versakrimp Uninsulated Ring Terminal M10 Stud Size 13 AWG 9 AWG Wire Size, Grey 19323-0016
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Grey |
| THICKNESS | 1.02mm |
| Insulation | Uninsulated |
| Overall Length | 21.5mm |
| Contact Material | Copper Alloy |
| Series | Versakrimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 13AWG |
| Maximum Wire Size AWG | 9AWG |
| Outer Ring Diameter | 14.94mm |
| Inner Ring Diameter | 10.63mm |
| Stud Size | M10 |
Key Features
- Copper alloy contact material ensures high conductivity and corrosion resistance.
- Tin plating provides excellent protection against oxidation and extends product lifespan.
- Uninsulated design allows versatile application and easier installation.
- Compatible with wire sizes from 2.5mm² to 6mm² supporting a range of electrical wiring needs.
- Suitable for industrial, automotive, and electrical panel wiring applications.
- Operates reliably across a temperature range from -55°C to 105°C.
- Grey color finish for easy identification and consistent application.
Product Description
The Molex 19323-0016 Versakrimp Uninsulated Ring Terminal is a high-quality electrical connector designed to facilitate secure connections for wires and studs. Featuring a copper alloy contact material and tin plating, this terminal offers excellent electrical conductivity with superior corrosion resistance, making it a reliable choice for long-term use.
Its uninsulated design provides flexibility for various industrial applications including automotive wiring projects, industrial machinery wiring, and electrical panel installations where robust and dependable connections are essential.
The ring terminal fits M10 studs and accommodates wire sizes from 13 AWG to 9 AWG (2.5mm² to 6mm²), enabling compatibility with a wide range of wire gauges required in electrical circuits.
Copper alloy construction ensures optimal conductivity and durability. Tin plating protects against corrosion for outdoor and harsh environment use. Grey color coding simplifies identification in wiring systems. Operating temperature range from -55°C to 105°C supports both low and high temperature environments.
Compact overall length of 21.5mm and thickness of 1.02mm for efficient space utilization.
This uninsulated ring terminal is a dependable component for electrical engineers and technicians, offering performance that meets demanding industrial standards. It is particularly valuable in automotive and manufacturing settings where safe and secure wire terminations are necessary.
Choose the Molex Versakrimp series for your connection requirements to ensure quality, safety, and durability in your electrical assemblies. Explore the full range of power connectors and Ring Terminals at EnvMart to support your technical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This uninsulated ring terminal accommodates wire sizes from 13 AWG to 9 AWG, which corresponds to 2.5mm² to 6mm² in metric measurements.
The maximum operating temperature for this ring terminal is 105°C, making it suitable for high-temperature environments.
The terminal is made of a copper alloy contact material and features tin plating, which provides excellent conductivity and corrosion resistance.
The overall length of this ring terminal is 21.5mm, and its thickness is 1.02mm, allowing for efficient space utilization in electrical assemblies.
This model is designed to fit M10 studs, making it compatible with a variety of applications requiring secure connections.
The minimum operating temperature for this ring terminal is -55°C, allowing it to function in low-temperature environments.
This ring terminal has a grey color finish, which aids in easy identification and consistent application in wiring systems.
This terminal is suitable for industrial, automotive, and electrical panel wiring applications, where secure connections are essential.
The inner ring diameter is 10.63mm, and the outer ring diameter is 14.94mm, which are important dimensions for ensuring proper fitment.
No, this model is uninsulated, which allows for versatile application and easier installation in various electrical setups.
The ring terminal is manufactured in the United States, ensuring adherence to specific quality standards.
This terminal is part of the Versakrimp series, which is known for its reliable electrical connections in various applications.
