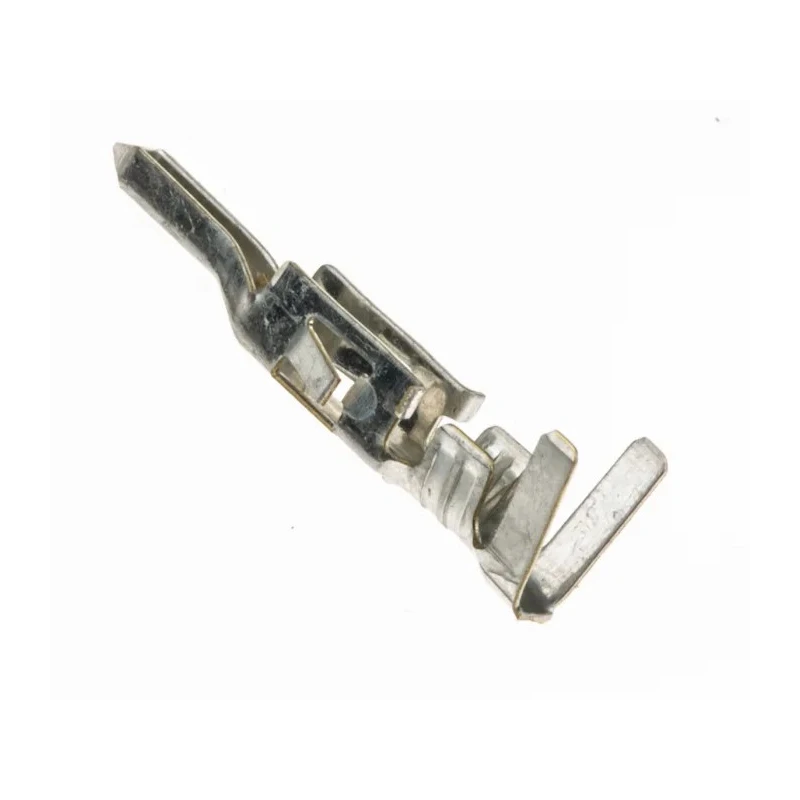

Molex 5558 Series Male Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max 39-00-0041
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr. Plug Housing, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from brass material for durability and conductivity.
- Contact plating is tin, ensuring corrosion resistance.
- Supports current rating up to 9A for efficient power transmission.
- Features locking tangs for secure connection within connector housings.
- Operates reliably within a temperature range of -40°C to 105°C.
- Designed as crimp termination type for ease of use in wire harnesses.
- Maximum contact resistance is 10 milliohms to maintain signal integrity.
- Ideal for automotive, industrial automation, communications, and consumer electronics.
Product Description
Molex 39-00-0041 5558 Series Male Crimp Terminal is a high-quality brass connector contact engineered for use with Mini-Fit Jr. plug housings, Mini-Fit TPA, and Mini-Fit BMI connector housings. It supports wire sizes from 24 AWG minimum to 18 AWG maximum, providing flexible wiring options for robust electrical connections.
Featuring multiple points of contact and locking tangs, this crimp terminal ensures a secure and reliable connection, essential for high current capacity applications rated up to 9 amperes. The tin plating on the contact enhances corrosion resistance and durability, making it suitable for demanding environments.
This crimp contact operates safely within a broad temperature range from -40°C up to 105°C, making it ideal for harsh industrial and automotive conditions. Its maximum contact resistance of 10 milliohms guarantees minimal signal loss.
Applications range widely, including automotive assembly, industrial automation equipment, medical devices, communications systems, and consumer electronics, where dependable connector performance is critical.
Constructed from brass material for durability and conductivity. Contact plating is tin, ensuring corrosion resistance. Supports current rating up to 9A for efficient power transmission. Features locking tangs for secure connection within connector housings.
Operates reliably within a temperature range of -40°C to 105°C. Designed as crimp termination type for ease of use in wire harnesses. Maximum contact resistance is 10 milliohms to maintain signal integrity. Compatible with Mini-Fit Jr. plug and receptacle housings.
Manufactured in the United States, this Molex male crimp terminal meets stringent quality standards for connectors in industrial and commercial applications. For further product design needs, Molex provides comprehensive technical documentation and modeling support.
Explore EnvMart’s Electronics Components catalog for a complete selection of high-performance Crimp Terminals and connectors from leading manufacturers like Molex.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a maximum current rating of 9A, ensuring efficient power transmission in various applications.
It operates reliably within a temperature range of -40°C to 105°C, making it suitable for harsh environments.
The terminal is constructed from brass for durability and conductivity, with a tin plating that enhances corrosion resistance.
It is designed for use with wire sizes from 24 AWG minimum to 18 AWG maximum, providing flexibility in wiring options.
This model features a crimp termination type, allowing for ease of use in wire harnesses.
The maximum contact resistance is 10 milliohms, which helps maintain signal integrity during operation.
It is compatible with Mini-Fit Jr. plug housings, Mini-Fit TPA, and Mini-Fit BMI connector housings.
This terminal is suitable for automotive assembly, industrial automation, medical devices, communications systems, and consumer electronics.
It features multiple points of contact and locking tangs that ensure a secure and reliable connection within connector housings.
This product is manufactured in the United States, adhering to stringent quality standards for connectors.
This crimp terminal is designed with a male gender, suitable for specific connector applications.
Molex provides comprehensive technical documentation and modeling support for this crimp terminal to assist with product design.
