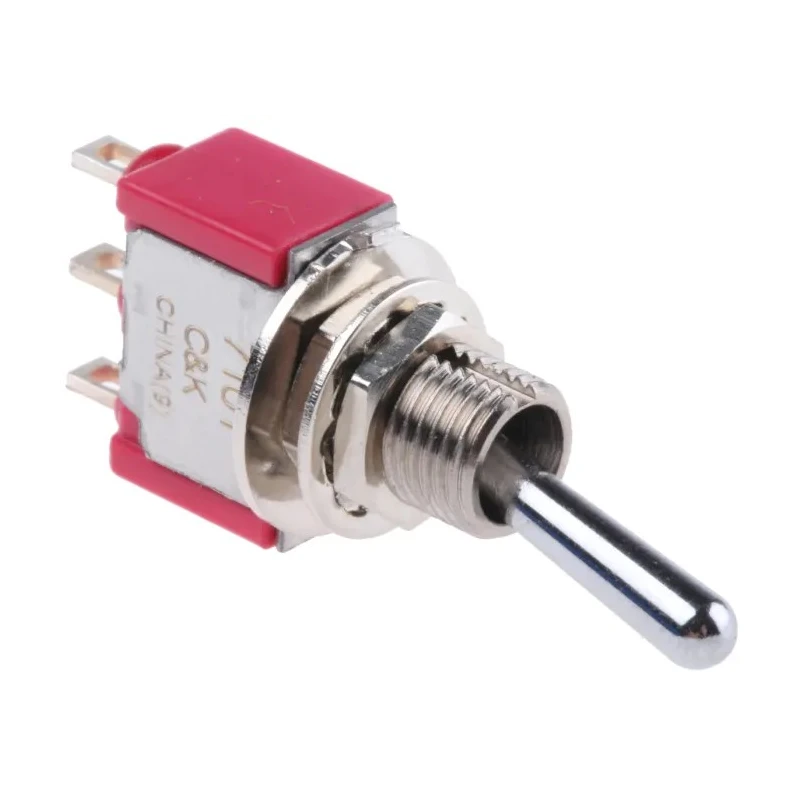

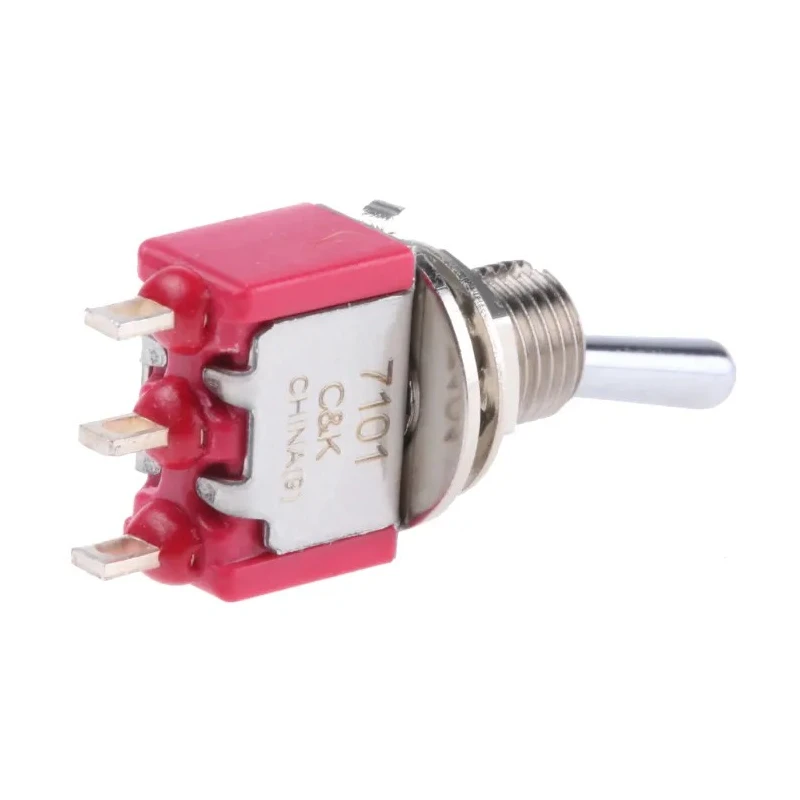

C & K Toggle Switch PCB Mount On-None-On SPDT Solder Terminal Chrome Plated Brass Actuator IP67 28V DC 120V AC 7101SYZQE
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Model | 7101SYZQE |
| IP Rating | IP67 |
| Mount Type | PCB |
| Series | 7000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS, CSA |
| Switch Operation | On-None-On |
| Actuator Length | 11.43mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 120V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- Operates with a switching contact current of 5A at 28V DC and 120V AC.
- Features IP67 rating ensuring protection against dust and water ingress.
- Actuator length measures 11.43mm for precise control operation.
- Built with epoxy sealed terminals suitable for bottom wash cleaning processes.
- Designed for operating temperatures from -30°C to 85°C.
- Constructed from durable materials including a nylon 6.6 case with UL 94 V-0 flame resistance.
- Silver contacts ensure reliable conductivity and long switch life.
- Compact panel cut-out size of 9 mm enables versatile mounting.
Product Description
The C & K 7101SYZQE toggle switch is a miniature PCB mount On-None-On SPDT switch engineered for industrial and electronic applications requiring reliable switching at 28V DC and 120V AC voltages. It features a chrome plated brass actuator with an 11.43 mm length providing tactile control for precise operation within control panels or circuit boards.
Its epoxy sealed terminals offer durability and protection against environmental factors, making it suitable for bottom wash cleaning in manufacturing processes. The switch operates at a rated contact current of 5A, delivering high performance within thermal limits from -30°C minimum to 85°C maximum operating temperatures.
The robust construction includes a nylon 6.6 case rated UL 94 V-0 for flame resistance and silver contacts to ensure excellent conductivity and longevity. The compact design with a 9 mm panel cut-out facilitates easy installation on printed circuit boards.
Rated IP67, this toggle switch resists dust ingress and water exposure, making it ideal for harsh and demanding environments. Its On-None-On configuration is valuable in applications requiring a middle off position between two active states.
Operates switch contact current of 5A at 28V DC and 120V AC. Chrome plated brass actuator of 11.43mm length. Epoxy sealed terminals suitable for bottom wash cleaning. Nylon 6.6 case with UL 94 V-0 flame resistant rating.
Silver contact materials for reliable conductivity. IP67 rated for dust and water resistance. Operating temperature range from -30°C to 85°C. 9 mm panel cut-out panel mounting compatible. Compliant with RoHS and CSA standards.
This switch finds applications in electronics, automation, instrumentation, control panels, and various industrial environments. It offers reliable switching performance in harsh conditions where sealing and material durability are critical. Choose the C & K 7101SYZQE toggle switch for dependable On-None-On SPDT PCB mounting switching solutions.
Explore more Toggle Switch options and high-quality components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This toggle switch has an IP67 rating, ensuring protection against dust and water ingress.
The contact configuration of this switch is SPDT (Single Pole Double Throw).
It operates at 28V DC and 120V AC.
The actuator length measures 11.43 mm.
This model features solder terminals.
The minimum operating temperature is -30°C.
It is constructed with a nylon 6.6 case and a chrome plated brass actuator.
It complies with RoHS and CSA standards.
The rated contact current is 5A.
This model requires a compact panel cut-out size of 9 mm for installation.
It is suitable for applications in electronics, automation, instrumentation, and control panels.
