Kraus & Naimer 6-Pole Front Panel Isolator Switch IP65, 40A Switching Current, 15 kW Power Rating KG41B.T206/GBA010.VE

Kraus & Naimer KG41B.T206/GBA010.VE is a 6-pole front panel isolator switch designed for industrial electrical applications requiring secure disconnection and isolation. It supports a switching current of 40A and a motor switching power rating of 15 kW, suitable for 3-phase AC electrical systems up to 690V. The device features an IP65 rated enclosure ensuring protection against dust and water ingress, enabling its use in demanding environments.

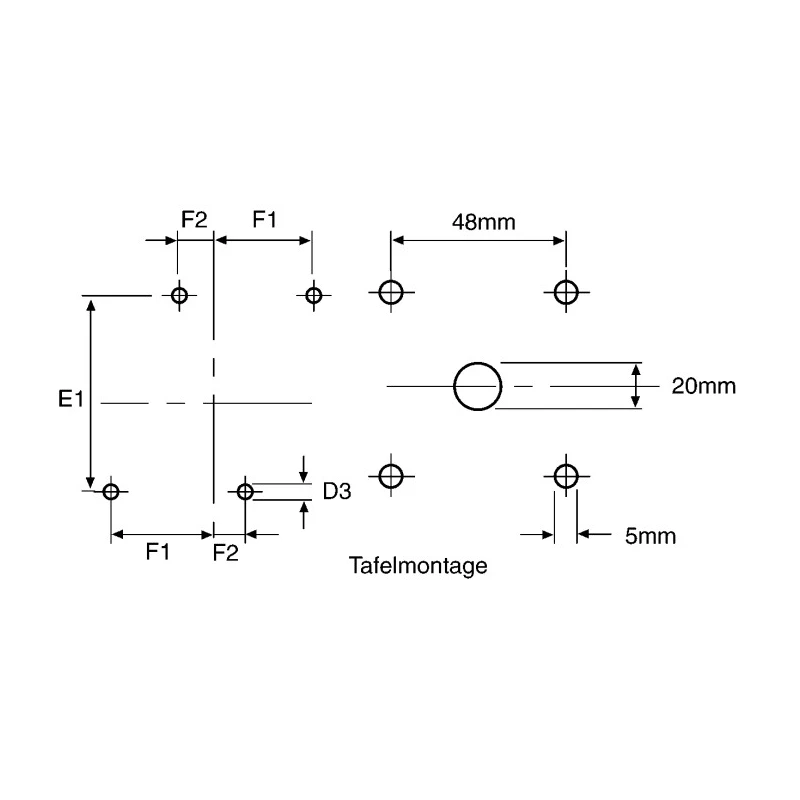

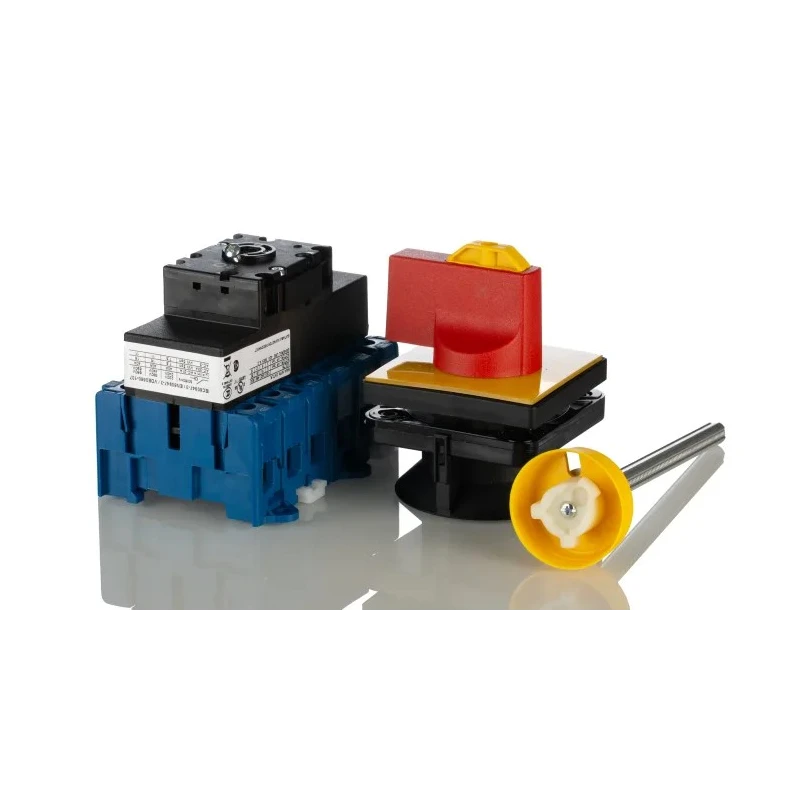

This isolator switch is equipped with a red handle for high visibility and offers padlock compatibility with four lock positions in the OFF state, enhancing safety during maintenance. The interlock mechanism in the ON position prevents accidental panel door opening while energized, providing an additional safety layer. Installation versatility is ensured through front panel mounting via DIN rail or screw fixings to the back of the panel, with adjustable shafts for convenient fitting.

The device supports auxiliary contacts on the side for enhanced control options, except for the 125A version, which is not applicable here. It complies with international standards such as BS EN 60204, BS EN 60947, IEC 60204, IEC 60947, and RoHS, backed by UL and CSA approvals. The operational temperature range from -55°C to +55°C allows reliable performance in diverse industrial, commercial, and manufacturing settings.

Manufactured in Ireland, this isolator switch is an ideal component for electrical automation, control panels, and switchgear assemblies. It contributes to safe electrical isolation and disconnection in industrial power distribution systems.

Suitable for front panel mounting with DIN rail or screw fixings. Complies with BS EN and IEC standards ensuring reliable industrial operation. Red handle provides high visibility and is padlock compatible for security. 3-phase device rated for 690V AC with auxiliary contacts available.

Operating temperature range from -55°C to +55°C supports diverse environments. Interlocked ON position prevents panel door opening during operation. Adjustable shaft length provides installation flexibility. Made in Ireland with RoHS compliance and UL, CSA approvals.
