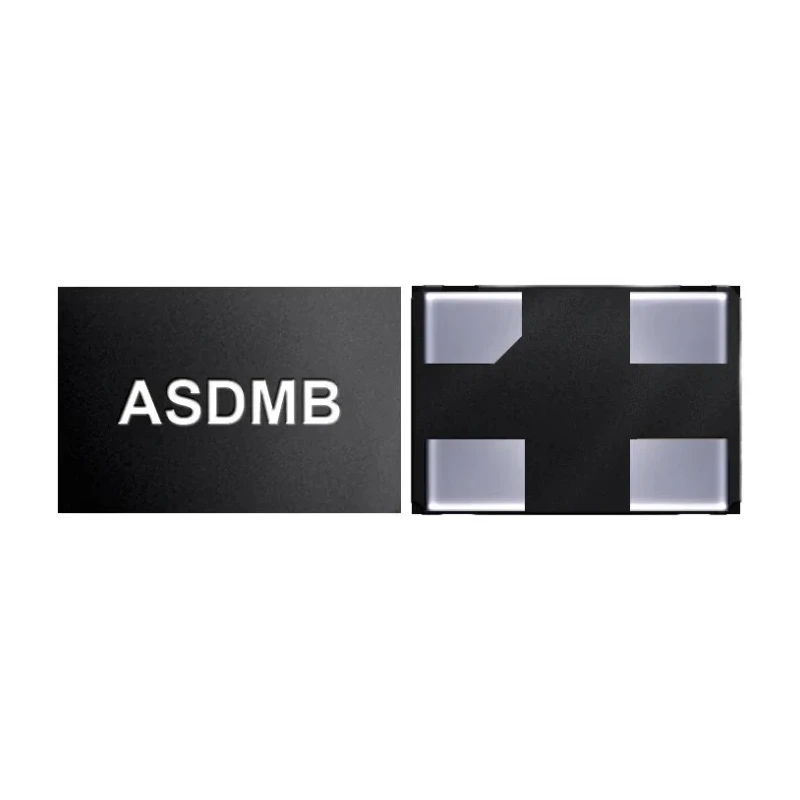

Abracon 24 MHz MEMS Oscillator 4-Pin QFN Surface Mount ±50 ppm ASDMB-24.000MHZ-LC-T

Abracon ASDMB-24.000MHZ-LC-T is a 24 MHz MEMS Oscillator that comes in an ultra-miniature 4-pin QFN package designed for surface mount technology. It features second-generation MEMS technology which provides reduced jitter compared to traditional oscillators, making it suitable for applications requiring precise timing and frequency stability.

This oscillator operates at a maximum supply voltage of 4 volts and supports a minimal supply voltage of -0.3 volts. It maintains frequency stability within ±50 ppm across a wide temperature range from -40°C to 85°C, enabling reliable performance in harsh industrial, electronic, and commercial environments.

The compact dimensions of 2.5 mm length, 2 mm width, and 0.85 mm height allow integration in highly space-constrained circuit boards. Its tape and reel packaging is optimized for automated pick-and-place assembly processes, enhancing manufacturing efficiency.

However, it is not compliant with automotive standards, making it ideal for general electronics, consumer, and industrial applications outside automotive use.

Use cases include telecommunications equipment, embedded systems, instrumentation, computers, and other timing-sensitive devices that benefit from low jitter and stable frequency output. Its surface mount design suits modern PCB assembly techniques in manufacturing.

Operates with maximum 4 V supply voltage and minimum -0.3 V. Stable frequency output of 24 MHz with ±50 ppm tolerance. Compact 4-pin QFN package measuring 2.5 x 2 x 0.85 mm. Wide operating temperature range from -40°C to 85°C.

Tape and reel packaging for automated assembly. Second generation MEMS technology ensures reduced jitter. RoHS compliant for eco-friendly manufacturing. Not suitable for automotive standard applications. Explore more MEMS Oscillators and precision timing solutions in the Electronics Components category on EnvMart.
