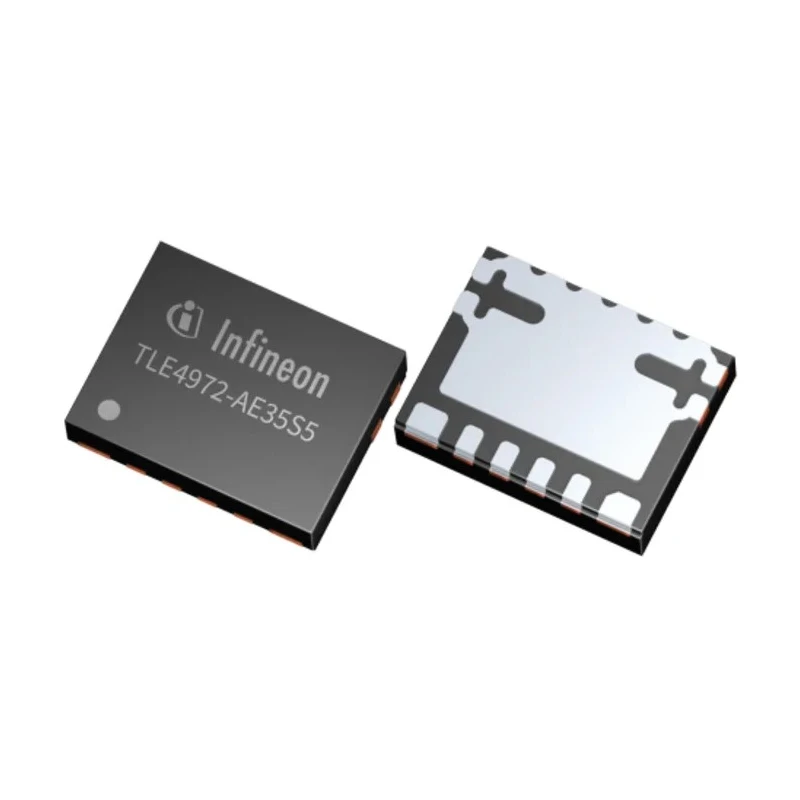

Infineon Current Sensor IC PG-VSON-6 7-Pin Surface Mount 3.1-3.5 V 1.65 V Offset Bandwidth 48.2 kHz TLE4972AE35S5XUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 900μm |
| Length | 3.5mm |
| Model | TLE4972AE35S5XUMA1 |
| Mount Type | Surface |
| Bandwidth | 48.2kHz |
| Series | TLE4972 |
| Maximum Operating Temperature | 160°C |
| Package Type | PG-VSON-6 |
| Minimum Operating Temperature | -40°C |
| Offset Voltage | 1.65 V |
| Standards/Approvals | AEC Q100 and ISO 26262, RoHS |
| Pin Count | 7 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.5V |
| Minimum Supply Voltage | 3.1V |
Key Features
- Features a low offset voltage of 1.65 V for accurate current sensing.
- Operates within supply voltages of 3.1 V minimum and 3.5 V maximum.
- Supports a high bandwidth of 48.2 kHz for fast signal response.
- Compact surface mount design measuring 3.5 mm length and 900 μm height.
- Certified to automotive standards including AEC-Q100 and ISO 26262.
- Wide operating temperature range from −40°C to 160°C for harsh environments.
- Integrated self-diagnostics enhance operational safety and reliability.
- Supports various output modes including differential and single-ended configurations.
Product Description
Infineon TLE4972AE35S5XUMA1 is a high precision Current Sensor IC designed for automotive applications requiring reliable and accurate current measurement. This device utilizes coreless Hall technology to provide linear and stable measurements of both AC and DC currents, minimizing sensitivity error across varying temperatures and fast response times with minimal phase delay.
Housed in a compact PG-VSON-6 7-pin surface mount package with dimensions of 4.5 × 3.5 × 0.9 mm, it is suitable for integration in space-constrained automotive electronics. The sensor operates efficiently within a supply voltage range of 3.1 to 3.5 V and functions reliably across an extended temperature range from −40°C up to 160°C. This ensures continuous and dependable performance under harsh automotive conditions.
The TLE4972AE35S5XUMA1 includes integrated self-diagnostic features which enhance electrical safety by enabling early detection of faults. It supports configurable output modes - fully differential, semi-differential, and single-ended - to accommodate varying measurement needs in automotive powertrain systems.
This sensor is ideal for monitoring electrical drives, onboard chargers, battery switches, and for detecting overload and over-current conditions, thereby facilitating improved power supply monitoring in high-voltage automotive environments. The product fully complies with key automotive industry standards including AEC-Q100 and ISO 26262, ensuring suitability for critical safety-related applications.
Low offset voltage and high accuracy current sensing. Wide bandwidth supporting fast transient detection. Compact and surface mount package suitable for automotive PCBs. Automotive qualification and RoHS compliance for trusted performance.
Robust operation in extreme temperature conditions. Integrated diagnostics for increased operational safety. Configurable output modes tailored for versatile applications. Coreless Hall sensor technology providing precise AC/DC current measurements.
Applications include electrical drive monitoring and battery management in vehicles. Contributes to optimized powertrain and charger performance in automotive systems. Explore the Electronics & Electricals semiconductors category at EnvMart for further automotive sensor IC solutions from trusted brands like Infineon.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current sensor IC operates within a supply voltage range of 3.1 V minimum to 3.5 V maximum.
This model can operate at a maximum temperature of 160°C.
The offset voltage for this current sensor IC is 1.65 V, which aids in accurate current sensing.
It supports a bandwidth of 48.2 kHz, allowing for fast signal response.
The dimensions of the PG-VSON-6 package are 4.5 mm in length, 3.5 mm in width, and 0.9 mm in height.
The sensor is certified to automotive standards including AEC-Q100 and ISO 26262, ensuring its suitability for critical safety-related applications.
This model supports various output modes, including fully differential, semi-differential, and single-ended configurations.
The minimum operating temperature for this sensor is -40°C, making it suitable for harsh environments.
It includes integrated self-diagnostic features that enhance electrical safety by enabling early detection of faults.
The TLE4972AE35S5XUMA1 provides linear and stable measurements of both AC and DC currents.
It is ideal for monitoring electrical drives, onboard chargers, battery switches, and detecting overload and over-current conditions in automotive systems.
This current sensor IC features a pin count of 7.
