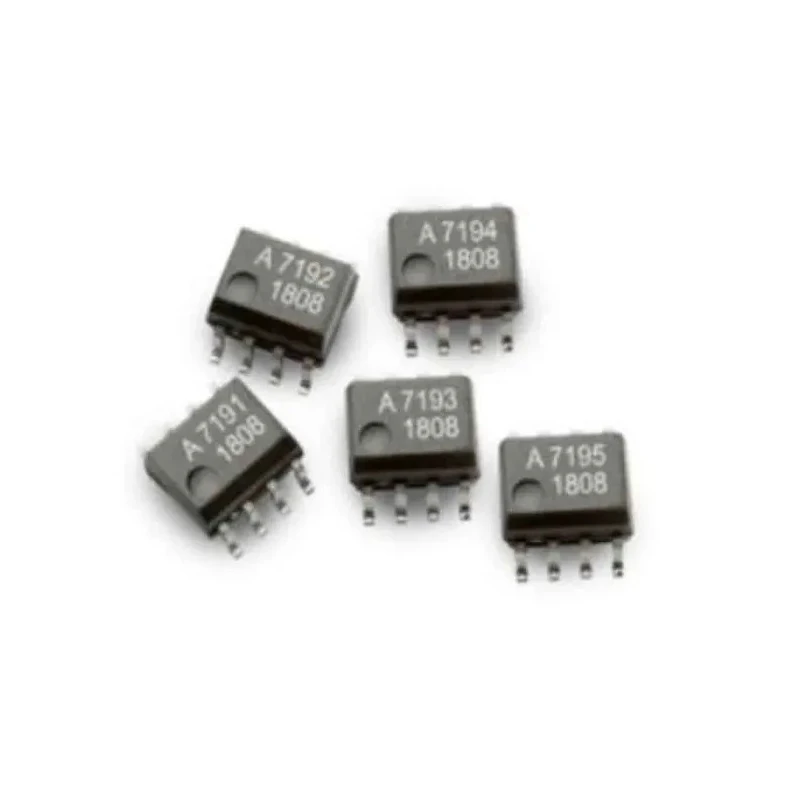

Broadcom Current Sensor IC, 8-Pin SO Package, Bandwidth 80kHz, Surface Mount AEC-Q100 ACHS-7195-000E
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Height | 1.9mm |
| Length | 5.08mm |
| Model | ACHS-7195-000E |
| Mount Type | Surface |
| Bandwidth | 80kHz |
| Series | ACHS-719x |
| Maximum Operating Temperature | 110°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 500mV |
| Minimum Supply Voltage | -0.5V |
Key Features
- Fully integrated Hall-effect based isolated linear current sensor IC.
- 8-pin Surface Mount SO package suitable for compact PCB layouts.
- High bandwidth of 80 kHz enabling fast response monitoring.
- Wide operating temperature range from -40°C to 110°C for industrial use.
- Supports supply voltages from -0.5V minimum to 500mV maximum.
- Compliant with RoHS and automotive AEC-Q100 standards for reliability.
- Ideal for industrial, commercial, and communication system current sensing.
Product Description
Broadcom ACHS-7195-000E is a high-performance Current Sensor IC featuring a fully integrated Hall-effect based technology for isolated linear sensing of AC and DC currents. Packaged in an 8-pin SO surface mount package, this sensor offers reliable and precise measurement capabilities suitable for demanding industrial, commercial, and communication applications.
The device offers a high bandwidth of 80 kHz, ensuring rapid response times for dynamic current measurements. It supports a broad operating temperature range from -40°C to 110°C, making it robust against harsh environmental conditions commonly encountered in industrial settings.
Operating supply voltage range spans from -0.5 V to a maximum of 500 mV, providing flexibility for varied power environments. The sensor features extremely stable output offset voltage and near-zero magnetic hysteresis for accurate performance over time.
Broadcom's ACHS-7195-000E complies with the automotive-grade AEC-Q100 standard, attesting to its high reliability and suitability for automotive electronics applications. Additionally, it meets RoHS requirements, ensuring environmental compliance.
Compact package dimensions (5.08 mm length and 1.9 mm height) facilitate its use in space-constrained PCB designs, important for modern electronic equipment. Fully integrated Hall-effect based isolated linear current sensor.
8-pin SO surface mount package for compact design. 80 kHz bandwidth for fast current sensing. Wide temperature range: -40°C to 110°C. Operating voltage from -0.5V to 500mV. AEC-Q100 automotive qualified. RoHS compliant for environmental safety.
Compact dimensions support flexible board layout.
This sensor is widely used in industrial automation, communications, and commercial equipment for efficient and reliable current monitoring. It offers an excellent solution for engineers looking to integrate precise current measurement capabilities in their electronic designs.
Explore a broad range of sensor ICs at EnvMart to complement your engineering requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bandwidth of this current sensor is 80 kHz, allowing for fast response monitoring of current measurements.
It operates within a wide temperature range from -40°C to 110°C, making it suitable for various industrial applications.
The sensor supports a supply voltage range from -0.5 V to a maximum of 500 mV.
This model has a length of 5.08 mm and a height of 1.9 mm, making it compact for PCB layouts.
Yes, it complies with RoHS and is automotive-grade AEC-Q100 qualified, ensuring reliability in automotive applications.
It is packaged in an 8-pin SO (Surface Mount) package, suitable for compact designs.
This sensor is widely used in industrial automation, communications, and commercial equipment for efficient current monitoring.
It features fully integrated Hall-effect based technology for isolated linear sensing of AC and DC currents.
The ACHS-7195-000E has a pin count of 8, which is standard for its package type.
The sensor features extremely stable output offset voltage and near-zero magnetic hysteresis for accurate performance over time.
This model belongs to the ACHS-719x series of current sensor ICs.
The country of origin for this current sensor is the Philippines.
