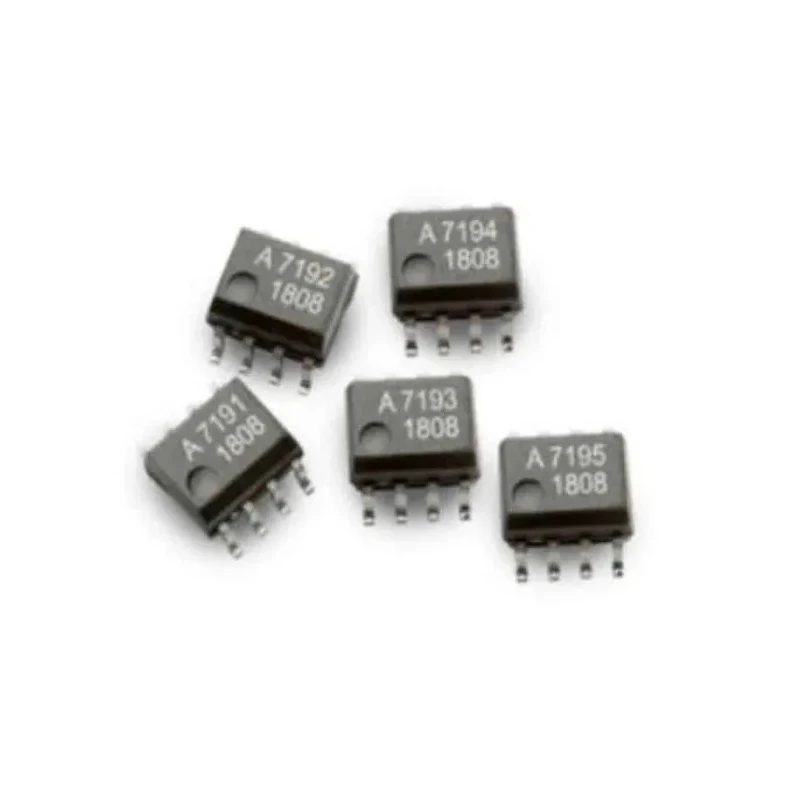

Broadcom Fully Integrated Hall-Effect Based Isolated Linear Current Sensor 8-Pin SO Package ACHS-7191-000E
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Height | 1.9mm |
| Length | 5.08mm |
| Model | ACHS-7191-000E |
| Mount Type | Surface |
| Bandwidth | 80kHz |
| Series | ACHS-719x |
| Maximum Operating Temperature | 110°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 500mV |
| Minimum Supply Voltage | -0.5V |
Key Features
- Comes in a compact 8-pin SO package suitable for surface mounting.
- Features wide bandwidth of 80kHz for responsive current detection.
- Operates within supply voltage range from -0.5V to 500mV for versatile power conditions.
- Functions reliably in extreme temperatures from -40°C up to 110°C.
- Ensures near-zero magnetic hysteresis for accurate and stable current measurement.
- Complies with RoHS standards and automotive AEC-Q100 certification ensuring quality and automotive-grade performance.
- Measures only 5.08mm in length and 1.9mm in height, facilitating compact system designs.
- Manufactured in the Philippines, guaranteeing consistent build quality.
Product Description
The Broadcom ACHS-7191-000E is a fully integrated Hall-effect based isolated linear current sensor designed for precision AC and DC current sensing. Presented in an 8-pin SO package with a compact footprint measuring 5.08mm length and 1.9mm height, this sensor supports surface mount applications requiring minimal board space.
This device offers a substantial bandwidth of 80kHz, enabling fast and responsive current detection suited for industrial automation, commercial equipment, and communication systems.
Operating over a supply voltage range from -0.5V to 500mV and capable of enduring temperatures from -40°C to 110°C, the ACHS-7191-000E performs reliably under varied and demanding environmental conditions.
Key features include a ratiometric output proportional to the supply voltage, extremely stable output offset voltage, and near-zero magnetic hysteresis that delivers accurate and consistent current measurements without drift.
The product complies with RoHS environmental standards and meets the automotive AEC-Q100 qualification, underscoring its quality and robustness for automotive and industrial applications.
Compact 8-pin SO package for surface mounting ease. 80kHz bandwidth for precise current sensing. Wide supply voltage range supporting diverse power inputs. Extensive operating temperature range from -40°C to 110°C. Near-zero magnetic hysteresis ensures stability.
RoHS and AEC-Q100 certified for environmental and automotive standards. Compact dimensions of 5.08mm x 1.9mm for versatile integration.
Ideal for industrial, laboratory, telecommunications, and automotive sectors requiring reliable, linear, isolated current sensors. This component supports designs where precision, compact size, and certification standards are critical for system reliability and performance.
Explore a wide range of semiconductor and sensor products available on EnvMart to complement this current sensor, suitable for advanced electronics engineering projects and manufacturing needs.
Explore more products in our Current Sensor IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ACHS-7191-000E features a bandwidth of 80kHz, allowing for responsive current detection.
This model measures 5.08mm in length and 1.9mm in height, making it suitable for compact system designs.
It operates within a supply voltage range from -0.5V to 500mV, accommodating diverse power conditions.
This sensor functions reliably within an operating temperature range of -40°C to 110°C.
The current sensor is designed for surface mounting, facilitating easy integration into various applications.
It complies with RoHS standards and meets the automotive AEC-Q100 certification, ensuring quality for automotive applications.
This model has a pin count of 8, which is standard for its package type.
Near-zero magnetic hysteresis ensures accurate and stable current measurement without drift, enhancing measurement reliability.
This current sensor is suitable for industrial automation, commercial equipment, and telecommunications applications.
It is manufactured in the Philippines, ensuring consistent build quality.
The sensor provides a ratiometric output that is proportional to the supply voltage, allowing for flexible integration into various systems.
This model is part of the ACHS-719x series of current sensors.
