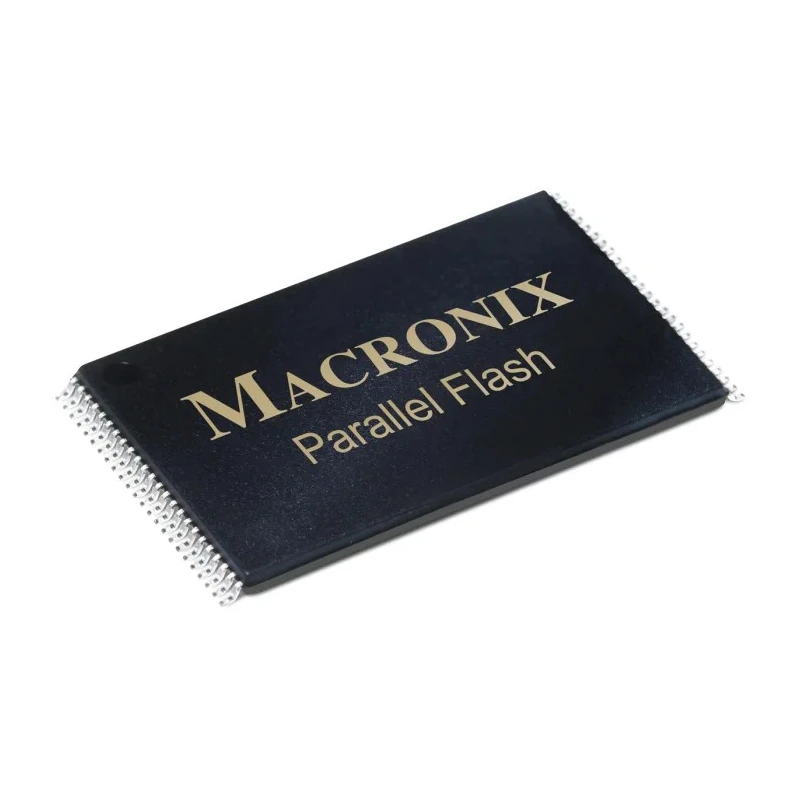

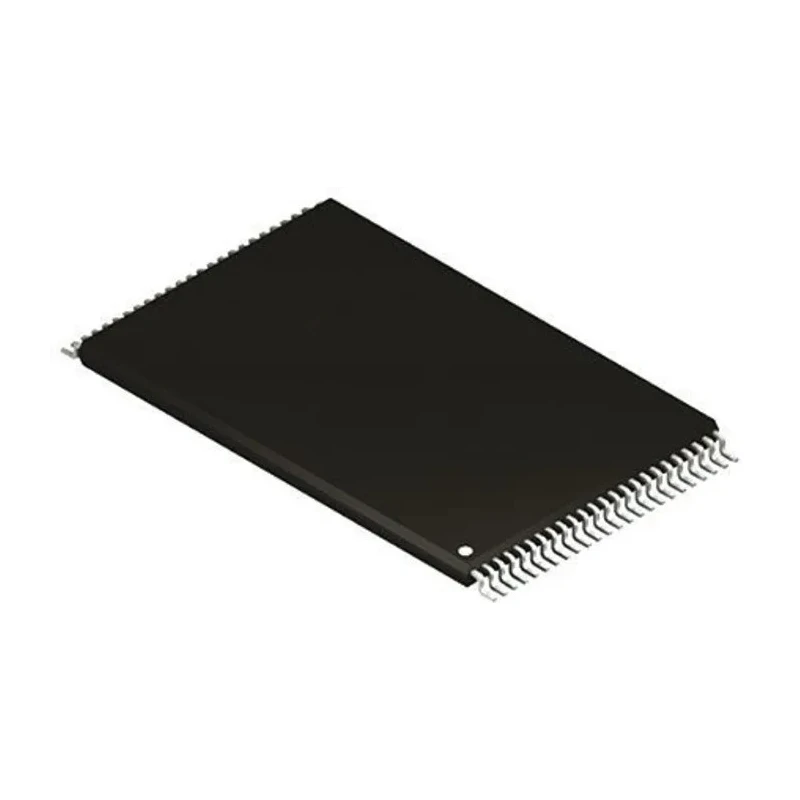

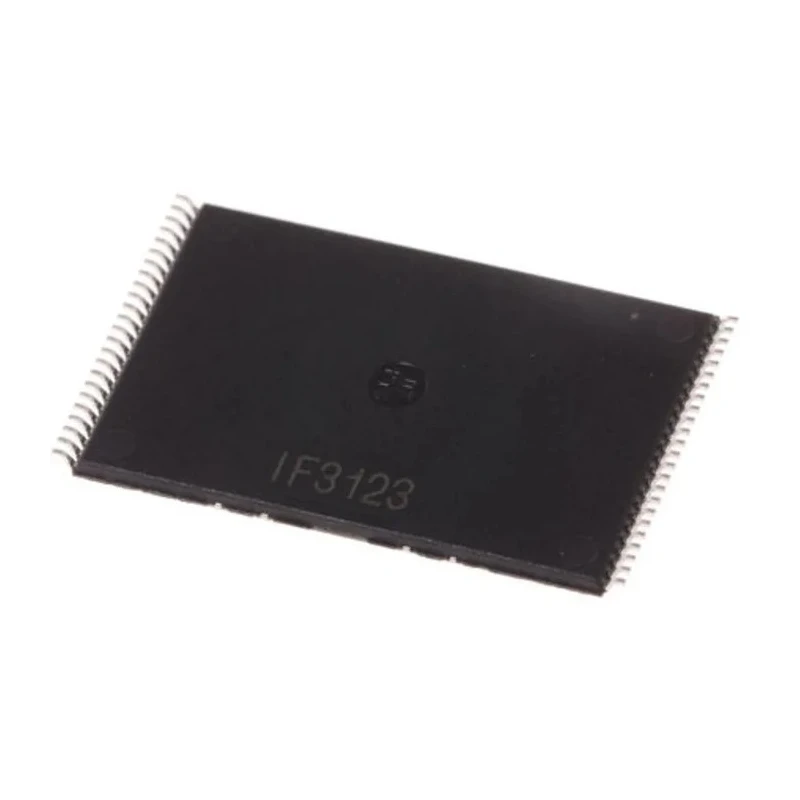

Macronix NOR 8 MB Parallel Flash Memory 48-Pin TSOP MX29LV800CBTI-70G

Macronix MX29LV800CBTI-70G is a high-performance 8 MB Parallel NOR Flash Memory designed with a 48-pin Thin Small Outline Package (TSOP) for surface mount applications. Operating within a voltage range of 2.7 to 3.6 volts, this memory component is engineered to meet demanding industrial and electronic system requirements.

This device features a parallel interface that facilitates rapid data access and fast operating speeds, with a maximum random access time of 70 nanoseconds. The chip organization of 512k x 16 Bit and 16 bits per word supports efficient data handling and storage across its 4 memory banks, enabling 1 million and 512 thousand words memory architecture.

Its robust operating temperature range between -40°C and 85°C ensures reliable performance in harsh environments common to industrial, automotive, and embedded electronics applications. The compact physical footprint with dimensions of 12.1 mm length, 12 mm width, and 1.05 mm height allows for flexible PCB layout and integration.

Macronix’s MX29LV800CBTI-70G NOR flash memory utilizes proven NOR flash cell technology, providing reliable, high-density storage ideal for boot code and embedded firmware storage. Its surface mount design simplifies manufacturing processes and aids in mass production of electronic assemblies.

This flash memory offers a memory size of 8 MB suitable for various electronic applications. It features a parallel interface type for fast data access. The package type is TSOP with 48 pins, compatible with surface mount technology.

Chip organization is 512k x 16 Bit providing a 16-bit word size. Operating voltage ranges from 2.7V minimum to 3.6V maximum for flexible power usage. Temperature range is -40°C to 85°C for industrial temperature tolerance.

Dimensions are compact with a length of 12.1 mm, width of 12 mm, and height of 1.05 mm. Maximum random access time is 70 nanoseconds to support high-speed operation. This device has 4 banks and supports 1M, 512K words for memory segmentation.

Designed for surface mount with NOR cell type technology ensuring reliability.

Macronix flash memories are widely used in industrial, automotive electronics, embedded systems, and consumer electronics that require reliable and fast non-volatile storage solutions. The MX29LV series represents a mature and proven series of 3V and 5V industry-standard NOR flash memory devices that support boot and uniform sector architectures.

For users seeking a dependable flash memory for PCB assembly and embedded applications, the MX29LV800CBTI-70G provides an ideal solution with robust specs, industrial-grade temperature tolerance, and compact packaging.
