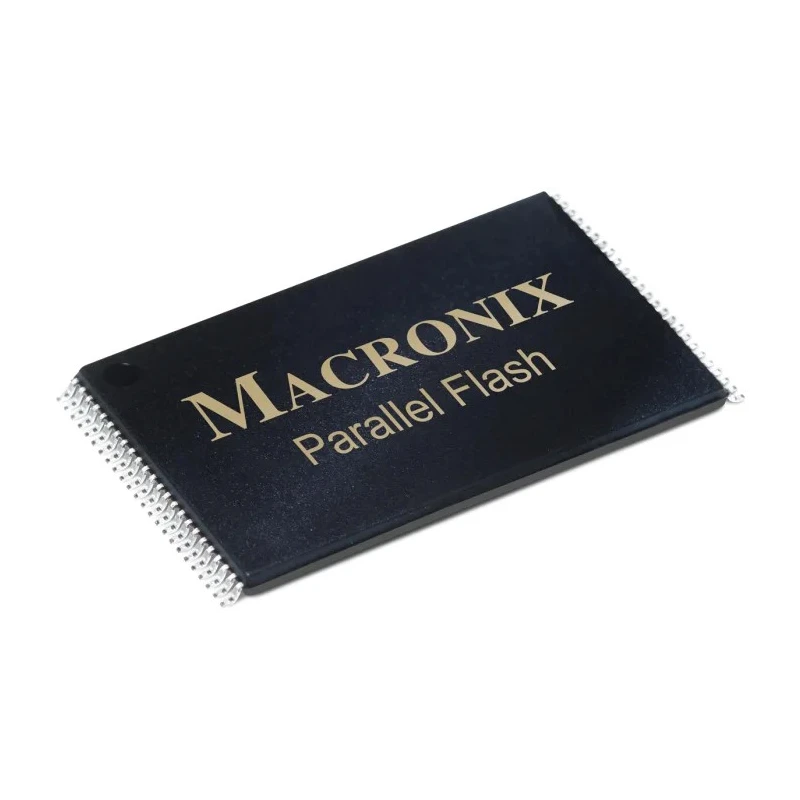

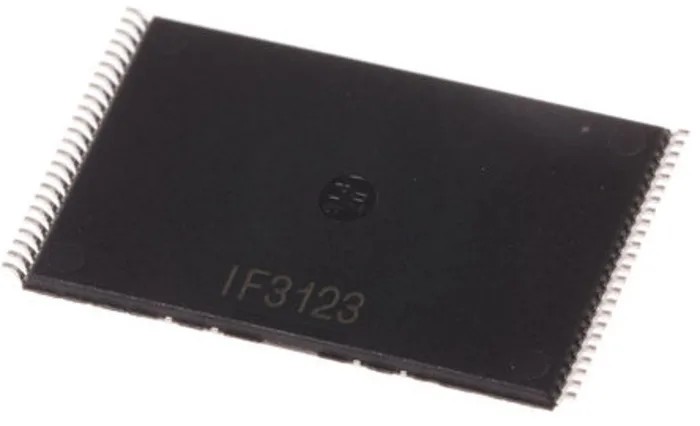

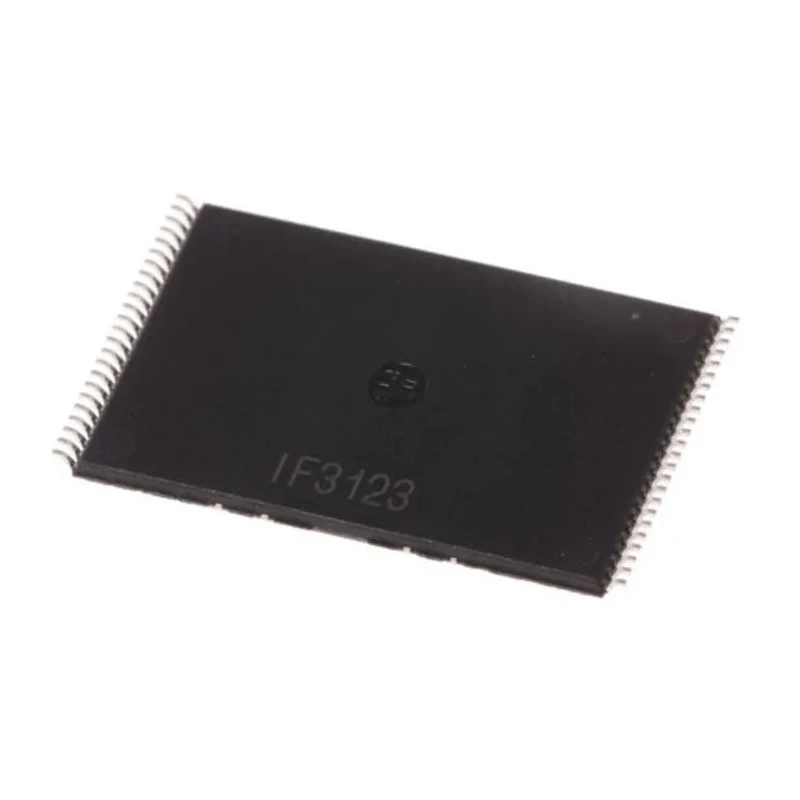

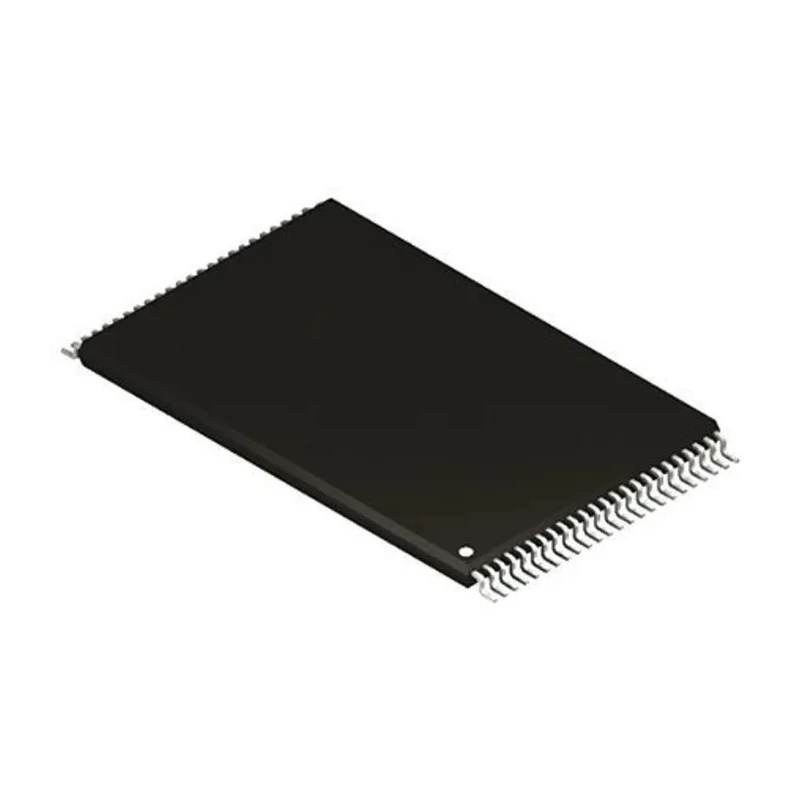

Macronix NOR 16MB Parallel Flash Memory 48-Pin TSOP MX29LV160DTTI-70G

Macronix MX29LV160DTTI-70G is a high-performance NOR Flash Memory device featuring a 16MB storage capacity with a parallel interface and 48-pin TSOP package. It is designed for surface mounting on PCBs and offers reliable, high-speed non-volatile storage ideal for embedded systems and industrial electronics requiring stable memory solutions.

This product operates within a supply voltage range of 2.7 to 3.6 volts, which allows compatibility with various power systems. Its operating temperature range of -40°C to 85°C makes it suitable for harsh environmental conditions typically found in automotive, industrial control, and consumer electronics applications.

The memory organization supports configurations of 2M x 8 or 1M x 16 bits with 4 internal banks and a word length of 16 bits, facilitating flexible memory management and data handling. The device supports a maximum random access time of 70 nanoseconds, ensuring quick data retrieval and efficient system performance.

Physically, the device measures 12.1mm in length, 12mm in width, and 1.05mm in height, enabling compact and efficient circuit board layouts without sacrificing performance. The TSOP packaging also aids in surface mount technology assembly processes.

Features a parallel interface suitable for high-speed data processing. Manufactured with NOR cell technology ensuring reliable non-volatile storage. Operates within a voltage range of 2.7V to 3.6V for flexible power requirements.

Supports a temperature range from -40°C to 85°C, suitable for industrial environments. Compact dimensions of 12.1mm length, 12mm width, and 1.05mm height enable efficient PCB layout. Maximum random access time of 70 nanoseconds for fast read operations.

Organized as 2M x 8 or 1M x 16 bit with 4 banks and 16 bits per word. RoHS compliant and designed for reliable surface mounting on printed circuit boards. Originates from Taiwan, Province Of China, ensuring quality manufacturing standards.

This Macronix memory chip is widely used in industrial control systems, automotive electronics, embedded devices, and communication equipment due to its robust performance and long-term data retention capabilities. The reliable NOR flash architecture ensures efficient code execution and storage of critical firmware.
