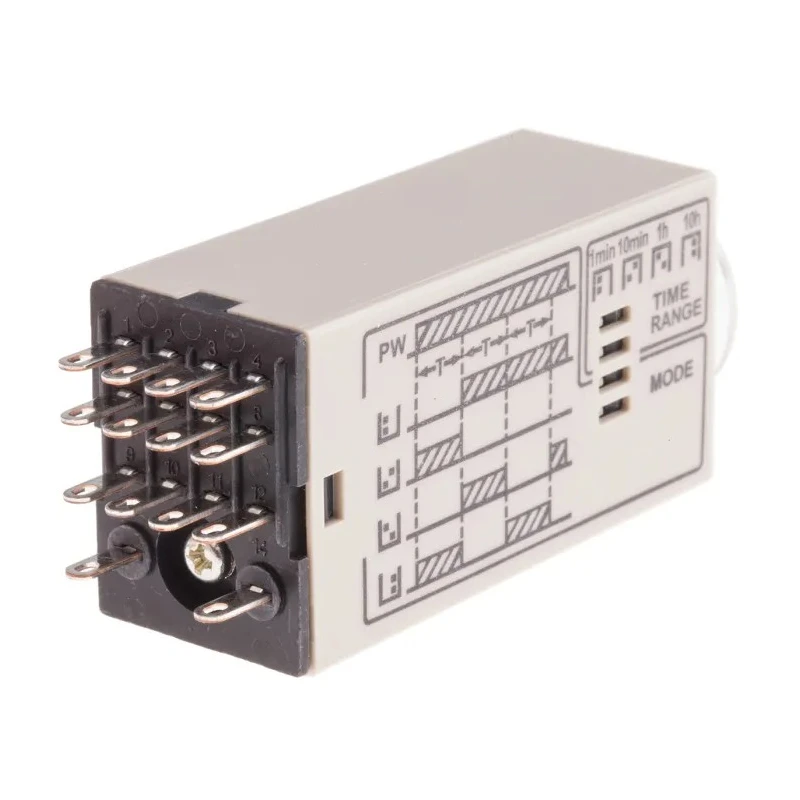

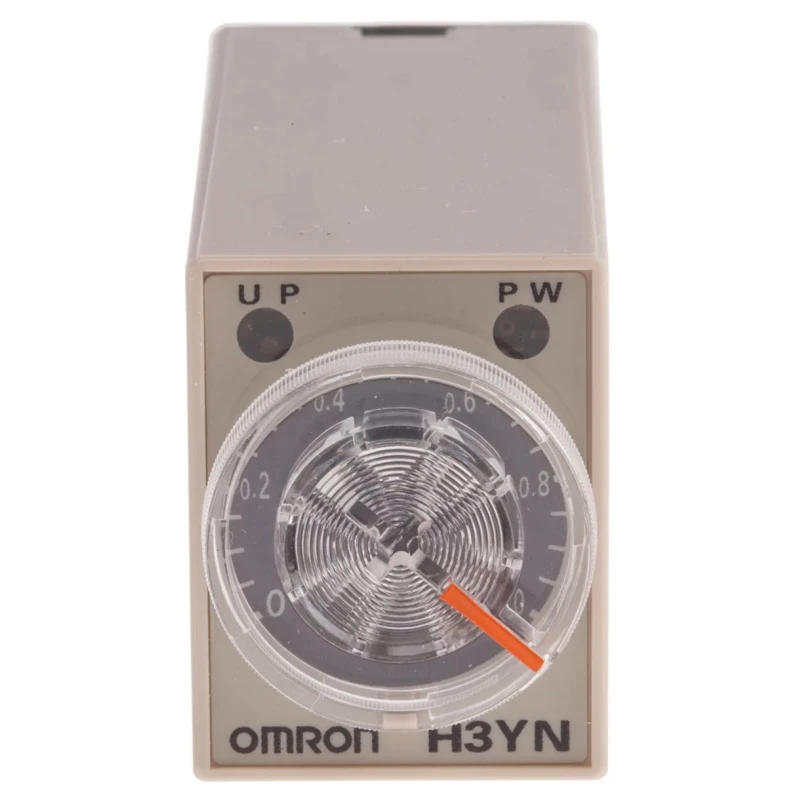

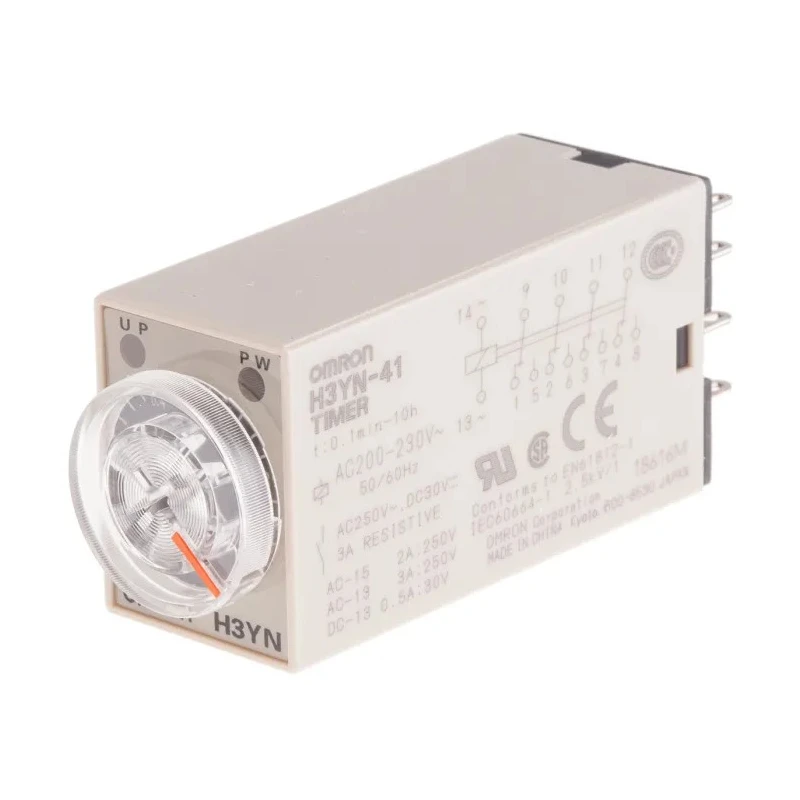

Omron H3YN Series Multifunction 4-Contact DIN Rail Panel Mount Timer Relay 200 to 230 V AC, 0.1 min to 10 h

Free Delivery in India | Lowest Global Shipping Charges

Omron H3YN Series Multifunction 4-Contact DIN Rail Panel Mount Timer Relay 200 to 230 V AC, 0.1 min to 10 h

Name: Omron H3YN Series Multifunction 4-Contact DIN Rail Panel Mount Timer Relay 200 to 230 V AC, 0.1 min to 10 h
Brand: Omron
SKU: 232968
Price: 87.19 USD
Availability: InStock



Category Timer Relay Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	63mm
Length	28mm
Model	H3YN
IP Rating	IP40
Mode	Multifunction
Width	21.5mm
Mount Type	DIN Rail, Panel Mount
Series	H3YN
Maximum Operating Temperature	50°C
Contact Configuration	4PDT
Minimum Operating Temperature	-10°C
Time Range	0.1 min to 10 h
Terminal type	Socket
Standards/Approvals	EN, UR, CSA
Number of Contacts	4
Number of Timer Functions	Multifunction
Contact Current	3A
Supply DC Voltage	200 to 230 V ac
Supply AC Voltage	200, 230V ac

Key Features

Supports DIN rail and panel mounting for flexible installation.
Four-pole double-throw (4PDT) contact configuration.
IP40 protection rating suitable for standard industrial environments.
Operates reliably within -10°C to 50°C temperature range.
User-selectable time settings via DIP switches for ease of use.
Socket terminal type allows straightforward wiring and replacement.
Complies with EN, UR, and CSA standards ensuring safety and quality.
Rated contact current of 3A for diverse electrical loads.

Product Description

Omron H3YN-41 AC200-230 is a multifunction 4-contact timer relay designed for industrial and automation applications requiring precise time control. It operates on a supply voltage of 200 to 230 V AC and offers a wide adjustable time range from 0.1 minutes up to 10 hours. This device supports both DIN rail and panel mounting, providing versatile installation options for control panels and automation systems.

The 4-pole double-throw (4PDT) contacts allow switching of various circuit types including micro loads, with a contact current rating of 3A. Featuring IP40 protection, the relay is suitable for standard industrial environments while operating reliably across temperatures from -10°C to 50°C. DIP switch selection enables users to easily adjust the timing settings to meet specific operational requirements.

The socket terminal type simplifies wiring and replacement tasks, enhancing maintenance efficiency. This timer relay complies with key industry standards including EN, UR, and CSA, ensuring high safety and performance. Its compact form factor with dimensions of 21.5mm (W) x 63mm (H) x 28mm (L) fits neatly in control assemblies and DIN rails.

Supports multifunction timer operations for enhanced control versatility. Designed for industrial automation, process control, and production line timing. Suitable for switching micro loads with optimal performance when matched with appropriate model variations.

Flicker ON/OFF start options to cater to diverse timing applications. Conforms to low voltage and electromagnetic compatibility directives. Easy integration with existing control circuits due to socket terminal design. Compact size ideal for saving space within control panels.

Robust build quality for reliable long-term use in industrial environments.

This timer relay is an essential component for industrial, laboratory, manufacturing, and HVAC automation systems requiring precise and reliable timed control of electrical circuits. For additional information and similar products, explore the Timer Relay offerings available on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model offers an adjustable time range from 0.1 minutes to 10 hours, allowing for precise time control in various applications.

The relay features a 4-pole double-throw (4PDT) contact configuration, suitable for switching various circuit types including micro loads.

It has compact dimensions of 21.5mm in width, 63mm in height, and 28mm in length, making it suitable for space-saving installations in control panels.

The timer relay operates reliably within a temperature range of -10°C to 50°C, making it suitable for standard industrial environments.

This unit has a rated contact current of 3A, allowing it to handle diverse electrical loads effectively.

It supports both DIN rail and panel mounting, providing flexibility for installation in various control systems.

The relay has an IP40 protection rating, suitable for standard industrial environments where dust and moisture exposure is minimal.

This model complies with EN, UR, and CSA standards, ensuring it meets safety and quality requirements for industrial applications.

The socket terminal type allows for straightforward wiring and easy replacement, enhancing maintenance efficiency for users.

It is designed for use in industrial automation, process control, and production line timing, making it versatile for various timing needs.

The H3YN operates on a supply voltage range of 200 to 230 V AC, making it compatible with standard industrial power systems.

This timer relay supports multifunction operations, allowing users to select different timing functions as needed for their applications.
