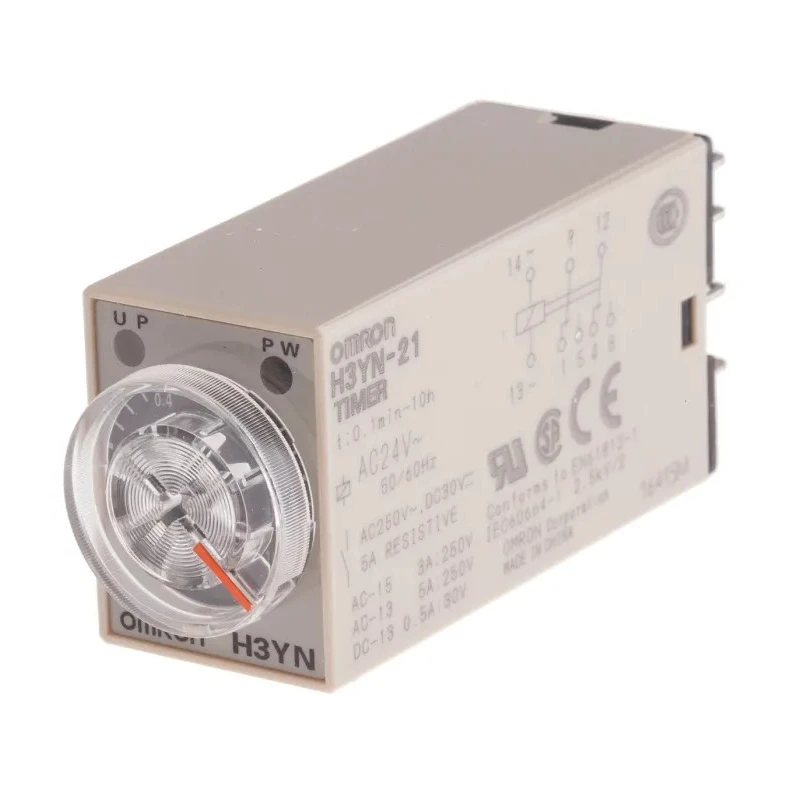

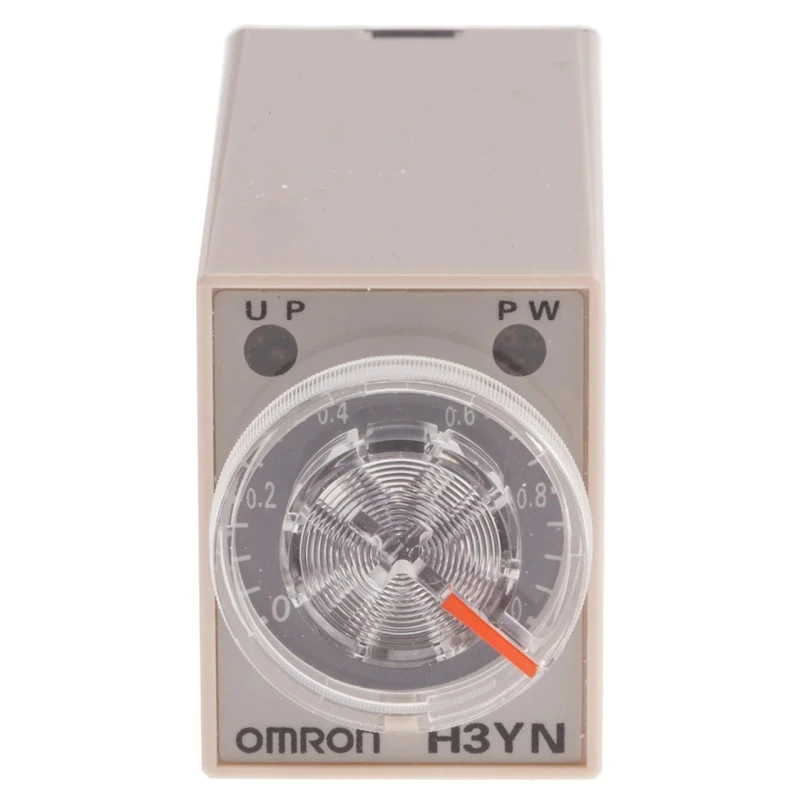

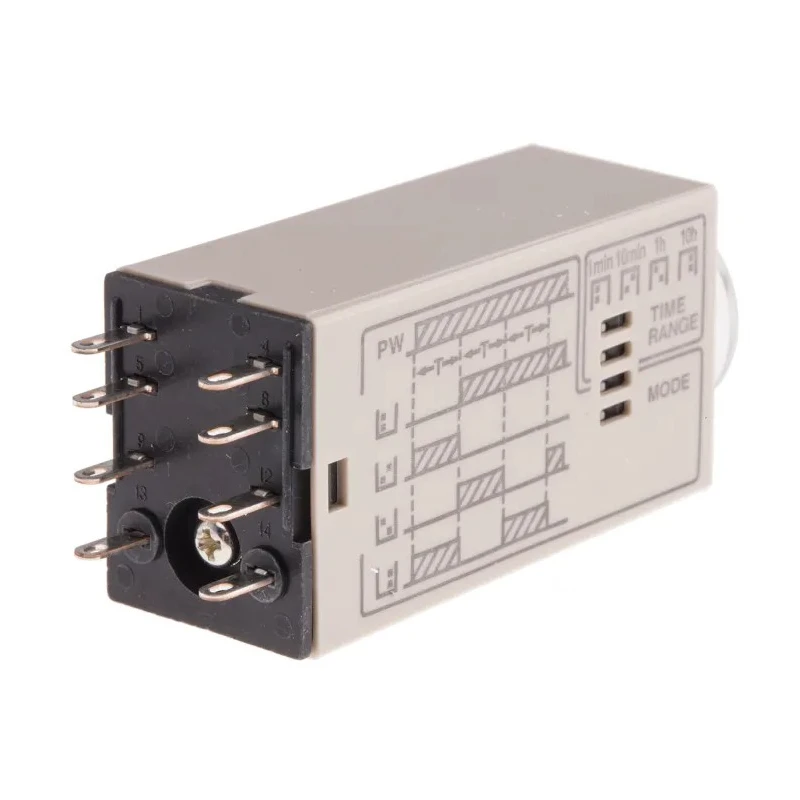

Omron Multifunction DIN Rail Panel Mount Timer Relay 24 V ac 5A DPDT, 0.1 Min to 10 H H3YN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 63mm |
| Length | 28mm |
| Model | H3YN |
| IP Rating | IP40 |
| Mode | Multifunction |
| Width | 21.5mm |
| Mount Type | DIN Rail, Panel Mount |
| Series | H3YN |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 min to 10 h |
| Terminal type | Socket |
| Standards/Approvals | UR, EN, CSA |
| Number of Contacts | 2 |
| Number of Timer Functions | Multifunction |
| Contact Current | 5A |
| Supply DC Voltage | 24 V ac |
Key Features
- Multifunction timer relay with 0.1 min to 10 h time range for versatile control.
- DPDT contact configuration provides two independent changeover contacts.
- Operates on 24 V ac supply voltage, compatible with AC control systems.
- Rated 5A contact current supports moderate load switching.
- Mounts easily on DIN rail or panel for flexible installation.
- IP40 protection rating suitable for protected indoor panel environments.
- Operating temperature range from -10°C to 50°C for typical industrial conditions.
- Socket terminal type simplifies wiring and maintenance.
Product Description
Omron H3YN is a multifunction timer relay designed for industrial automation and control panel applications. Featuring a 24 V ac supply voltage, it enables precise timing operations over a wide range from 0.1 minutes to 10 hours. The relay includes a DPDT contact configuration providing two changeover contacts capable of switching moderate loads up to 5 amps.
This timer relay is compatible with socket mounting and is designed for easy integration with DIN rail or panel mounting setups, enabling quick installation and maintenance within control circuits. The IP40 enclosure rating ensures protection in typical indoor industrial environments.
The device operates efficiently within a temperature range of -10 to 50 degrees Celsius, making it suitable for various industrial applications including motor start/stop sequencing, timed interlocks, and delay-off signaling in manufacturing automation systems.
Omron H3YN timer relay meets industrial safety and performance standards with approvals such as UL, CSA and recognized European norms. Its compact design with dimensions of 63 mm height, 28 mm length and 21.5 mm width supports space-saving installations.
Multifunction timer relay with timing range from 0.1 min to 10 h. Dual-pole double throw (DPDT) contact configuration for versatile control. Rated contact current of 5A suitable for control and signalling circuits. 24 V ac supply voltage designed for AC control systems.
DIN rail and panel mount compatible with socket terminal arrangement. IP40 rated enclosure for indoor panel protection. Reliable operation from -10°C to 50°C ambient temperature. Certifications include UL, CSA, and European EN standards compliance.
Compact size facilitates integration into control assemblies. Suitable for motor sequencing, timed interlocks, and delay-off applications.
This Omron timer relay is essential for industrial, manufacturing, HVAC, and automation control panels requiring precise and multifunctional timing solutions. It is ideal for replacing or upgrading DIN-rail mount Timer Relays in existing control setups.
Browse EnvMart for a wide range of industrial automation products and relay accessories from leading brands including Omron.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a time range from 0.1 minutes to 10 hours, allowing for versatile timing applications.
It has a DPDT (Dual-Pole Double-Throw) contact configuration, providing two independent changeover contacts.
The relay is rated for a contact current of 5A, suitable for moderate load switching.
The Omron H3YN operates on a 24 V AC supply voltage, making it compatible with AC control systems.
This unit has dimensions of 63 mm in height, 28 mm in length, and 21.5 mm in width, allowing for compact installations.
It has an IP40 protection rating, suitable for indoor panel environments.
The operating temperature range is from -10°C to 50°C, making it suitable for typical industrial conditions.
It is designed for DIN rail and panel mounting, which simplifies installation and maintenance.
It complies with UL, CSA, and recognized European norms, ensuring it meets industrial safety and performance standards.
This model features a socket terminal type, which simplifies wiring and maintenance tasks.
It is suitable for applications such as motor start/stop sequencing, timed interlocks, and delay-off signaling in manufacturing automation systems.
The H3YN offers multifunction capabilities, allowing it to perform various timing functions as needed in control circuits.
