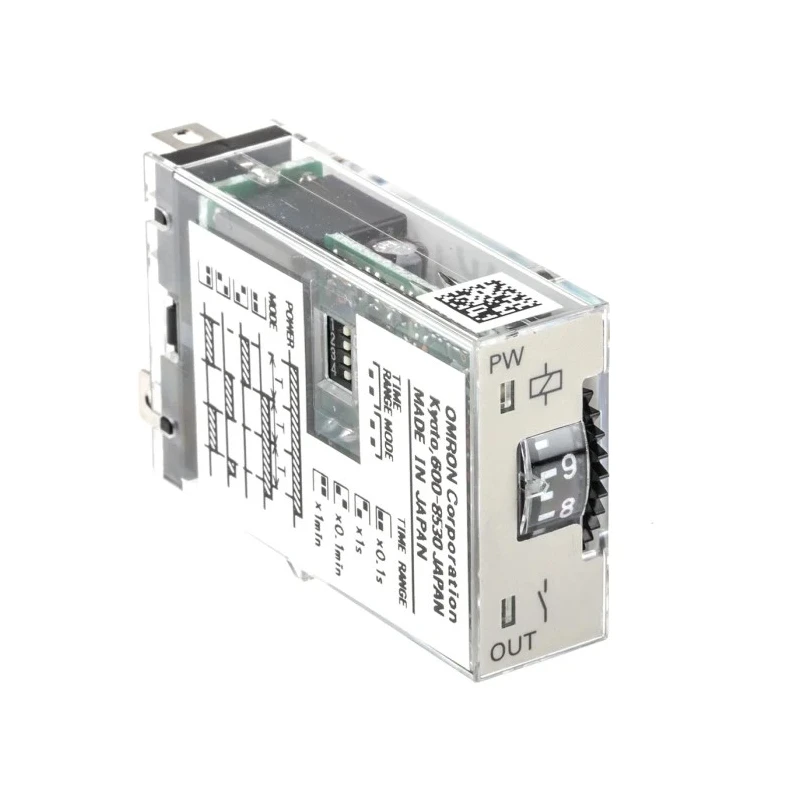

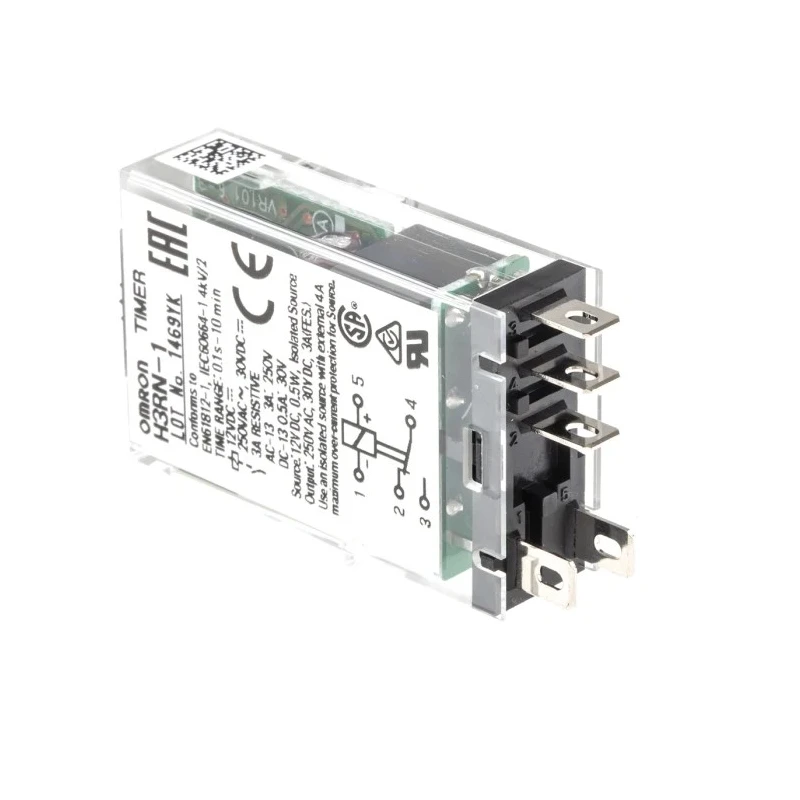

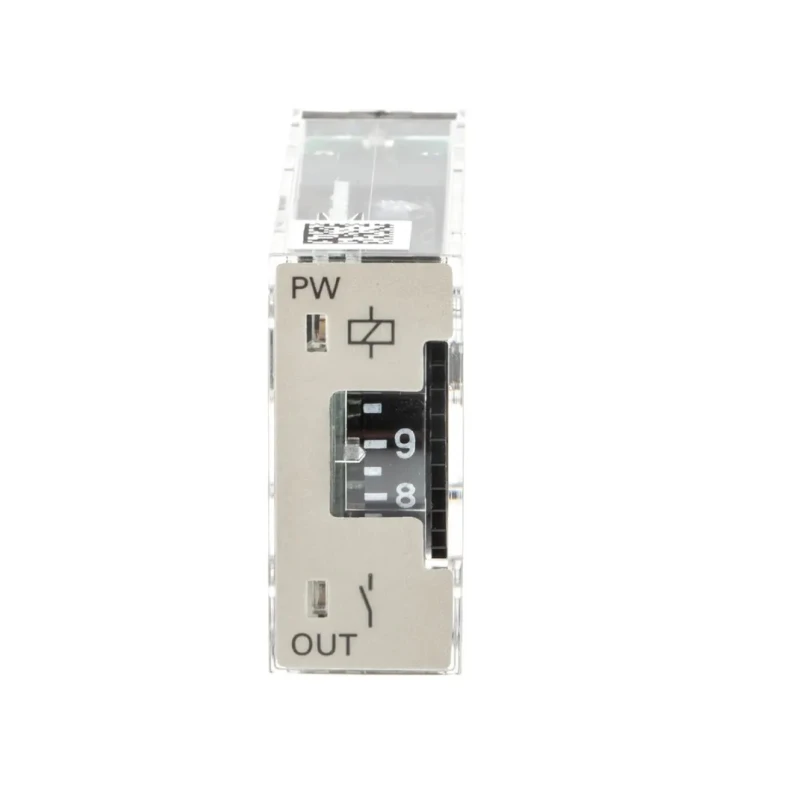

Omron Timer Relay 1-Contact 12 V dc/ac Multifunction SPDT Switch 0.1 s to 10 min H3RN

Omron H3RN series timer relay is a multifunctional device designed for precise timing control in industrial and automation applications. Featuring a single SPDT contact, this timer relay supports both 12 V dc and 12 V ac supply voltages and covers a comprehensive timing range from 0.1 seconds up to 10 minutes, allowing flexible programming for a variety of control tasks.

The relay's compact dimensions of 31.2mm in length, 22.5mm in width, and 53.4mm in height make it suitable for panel mounting in limited spaces, enhancing integration in existing control systems. It offers reliable operation with a maximum contact current rating of 3A, ideal for switching resistive loads.

With an IP40 protection rating, it is designed for indoor industrial environments and can operate efficiently within a temperature range from -10°C to 55°C, providing consistent performance under varying ambient conditions.

The socket terminal type allows for easy installation and removal, facilitating maintenance and replacement processes without complex wiring. This timer relay complies with EN, UR, and CSA international standards, ensuring safety and quality in industrial applications.

Typical applications include automated manufacturing systems, process control, and timed switching requirements where precise time delays and intervals are critical. Its multifunctional capabilities support diverse timing modes, contributing to enhanced operational efficiency.

The relay supports multiple operating modes selectable via DIP switch for customized timing functions. Compact design enables easy panel integration in industrial equipment. High reliability with 3A contact current rating at 250V AC for resistive loads.

Wide operating temperature range from -10°C to 55°C for stable performance. Meets stringent international standards EN, UR, and CSA for safety and quality assurance. Socket terminal design ensures efficient installation and replacement.

Multifunction operation covers ON-delay, interval, and other timing modes.

The Omron H3RN timer relay is manufactured in Japan, reflecting high quality and durability expected in demanding industrial applications. It is an essential component for systems requiring precise timing and control, ensuring automation tasks are executed accurately and reliably.
