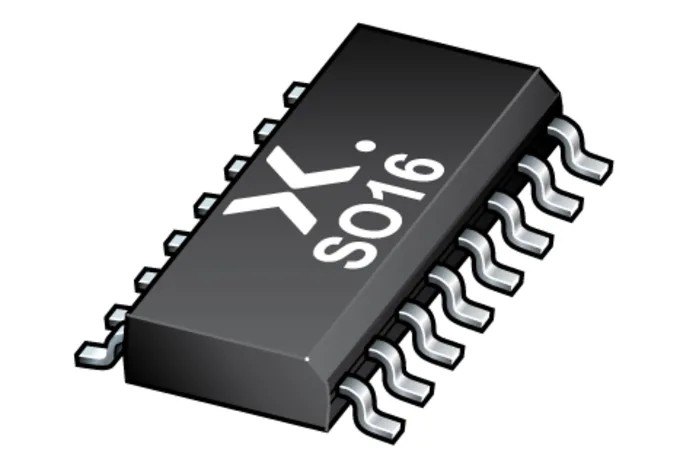

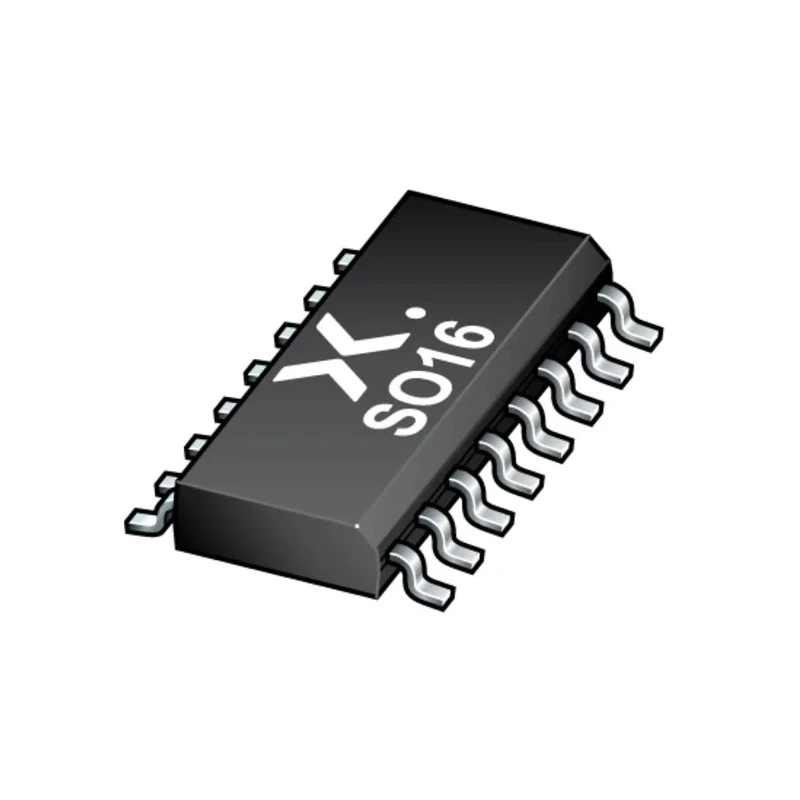

Nexperia Shift Register/Latch 15V HEF4094B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | HEF4094B |
| Mount Type | Surface |
| Series | HEF4094B |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Cutout Width | 3.9mm |
| Count Direction | Uni-Directional |
| Maximum Supply Voltage | 15V |
| onsemi MC14094BDR2G 1 Surface Shift Register 4000 SOIC, 16-PinBrand | onsemi |
Key Features
- Features 8-stage serial shift register with individual storage latches for parallel outputs.
- Operates with a supply voltage up to 15 volts, ensuring robust performance.
- Supports uni-directional data counting and serial input shifting on positive-going clock transitions.
- Includes two serial outputs (QS1 and QS2) for easy cascading of multiple devices.
- Data strobing controlled via strobe (STR) input; output enabled with output enable (OE) signal.
- Surface mount type designed for compact PCB assembly.
- Operating temperature range spans from -40°C to 125°C, suitable for industrial environments.
- Parallel buffered 3-state outputs allow connection to common bus lines.
Product Description
Nexperia HEF4094B is a surface-mount 8-stage serial shift register with latching, designed for 15V maximum supply voltage operation. It incorporates storage latches at each stage to strobe data from serial input into parallel buffered outputs QP0 to QP7. This device facilitates seamless data shifting and strobing controlled by clock and strobe signals, with output enable control for the parallel outputs.
The HEF4094B supports uni-directional count direction and features two serial outputs, QS1 and QS2, enabling efficient cascading in complex systems. It is designed for high-frequency operation with fast clock rise times, making it ideal for demanding electronic applications.
The device operates reliably across a wide temperature range from -40°C to 125°C, making it well suited for industrial, manufacturing, laboratory, and commercial electronics applications. Its surface mount design allows for compact and efficient PCB layouts.
Typical applications include LED driver circuits, digital displays, control units, and other logic expansions where serial data needs parallel output buffering. The outputs are 3-state and buffered, allowing them to be connected directly to common data buses for efficient signal distribution.
Features 8-stage serial Shift Register with individual storage latches for parallel outputs. Operates at up to 15V supply voltage with robust tolerance. Uni-directional counting with serial inputs shifting on clock transitions.
Two serial outputs support cascading multiple ICs in series. Surface mount package designed for compact PCB integration. Wide operating temperature range offers industrial consistency. Buffered 3-state parallel outputs enable connection to common buses.
Applications include LED drivers, control units, and digital display circuits. Explore additional Nexperia semiconductor products in Electronics & Electricals at EnvMart for reliable, high-performance components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HEF4094B operates with a maximum supply voltage of 15 volts.
It operates reliably within a temperature range of -40°C to 125°C, making it suitable for industrial applications.
This model features an 8-stage serial shift register with individual storage latches for parallel outputs.
It includes buffered 3-state parallel outputs, allowing for connection to common bus lines.
Yes, it includes two serial outputs (QS1 and QS2) that facilitate easy cascading of multiple devices.
The HEF4094B supports uni-directional counting, allowing for efficient data management.
This model is designed as a surface mount type, suitable for compact PCB assembly.
Typical applications include LED driver circuits, digital displays, and control units where serial data needs to be buffered for parallel output.
The strobe (STR) input controls data strobing, enabling the transfer of serial input data to the parallel outputs.
The cutout width for this model is 3.9mm, which is relevant for PCB design.
The HEF4094B is manufactured by Nexperia.
It supports serial input shifting on positive-going clock transitions, allowing for effective data management.
