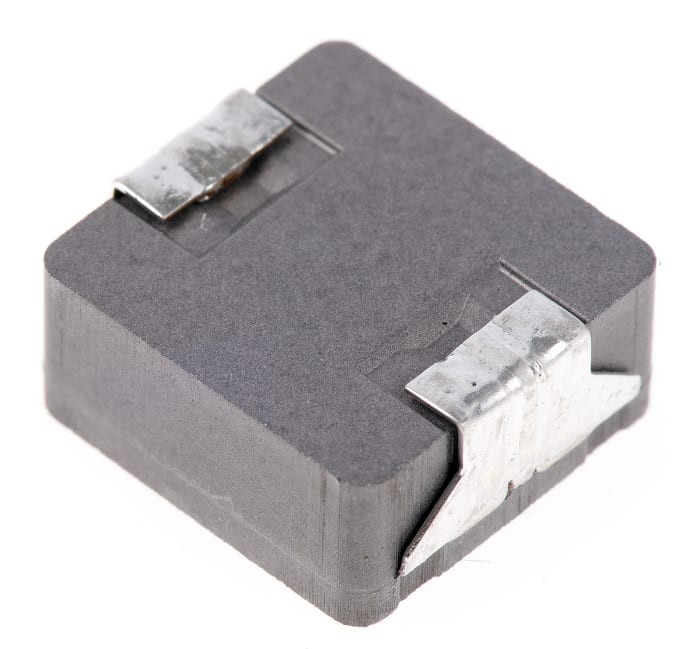

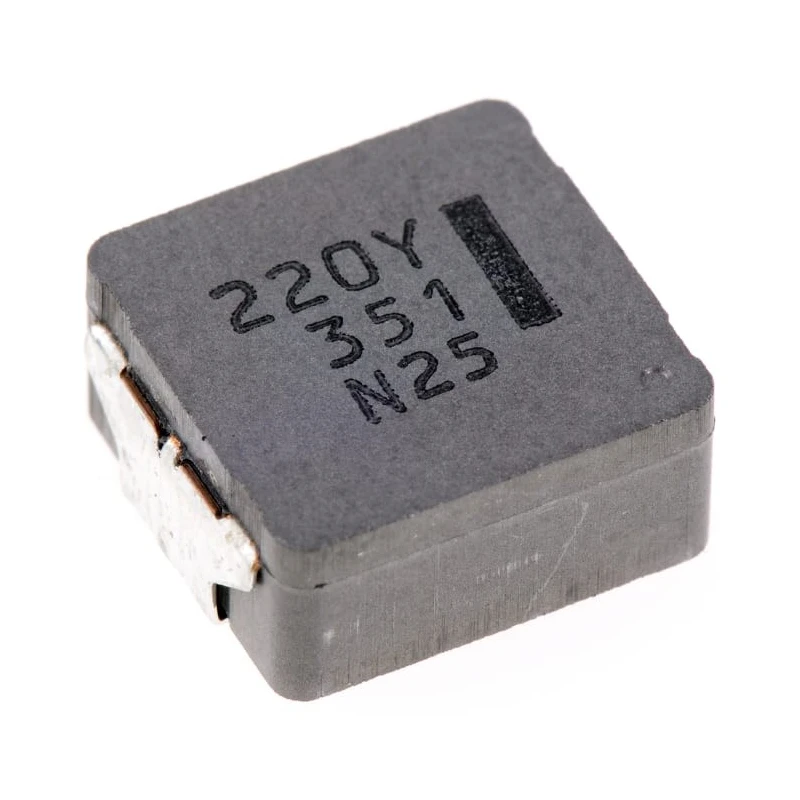

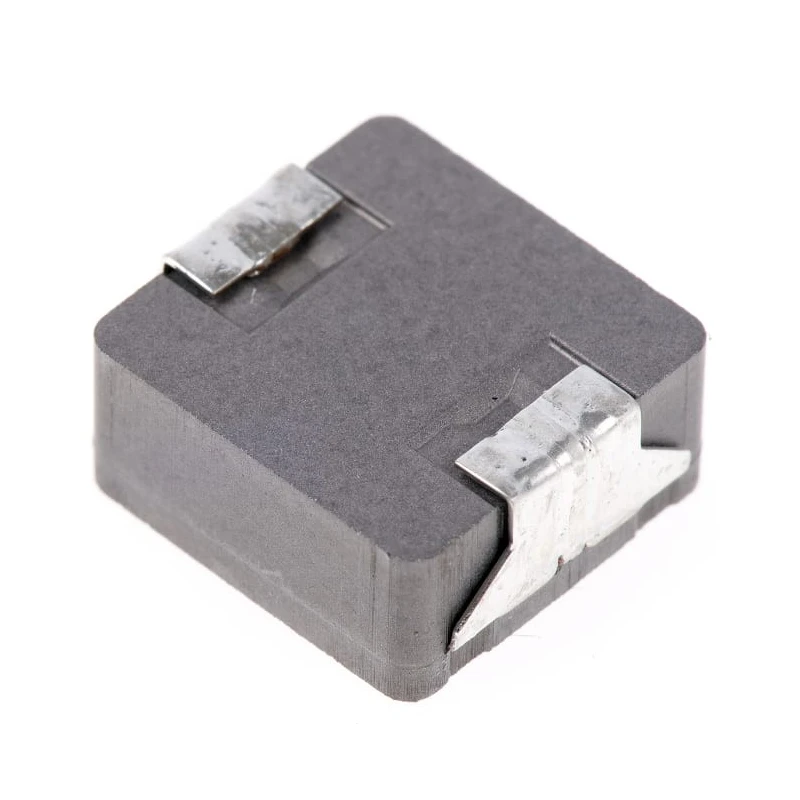

Panasonic Shielded Wirewound Surface Mount Inductor Metal Composite Core 22 μH ±20% 6.2 A Idc ETQP5M

Panasonic ETQP5M Shielded Wirewound Surface Mount Inductor, model ETQP5M220YFC, is engineered for high-performance electronic applications requiring compact size and reliable operation. This inductor offers 22 μH inductance with a ±20% tolerance and supports a maximum DC current of 6.2 A. Its shielded design minimizes electromagnetic interference, enhancing circuit reliability.

The inductor utilizes a metal composite core which contributes to better thermal stability and efficiency, enabling operation across a wide temperature range from -40°C to 150°C. Its surface mount package (case 1054) with precise dimensions of 10.7 mm length, 10 mm depth, and 5.4 mm height allows integration into compact circuit layouts.

Meeting the stringent automotive AEC-Q200 standard, this component is ideal for use in automotive power modules, electric vehicles, and other demanding environments where performance and durability are critical. The low DC resistance of 50 mΩ reduces power loss, enhancing energy efficiency for power-sensitive designs.

Applications encompass automotive power circuits, electric vehicle electronics, noise filtering in power electronics, and general compact circuit design requiring shielded, reliable inductors.

Metal composite core enhances efficiency and thermal management. Shielded design reduces electromagnetic interference and noise. Complies with automotive AEC-Q200 standard for high reliability. Wide operating temperature range from -40°C to 150°C.

Compact 1054 surface mount package enables space-saving PCB design. Low DC resistance of 50 mΩ contributes to energy efficiency. Inductance tolerance of ±20% accommodates varying application needs. Explore the wide range of Panasonic Inductors and related components in the Electronics & Electricals category at EnvMart for industrial and automotive applications.
