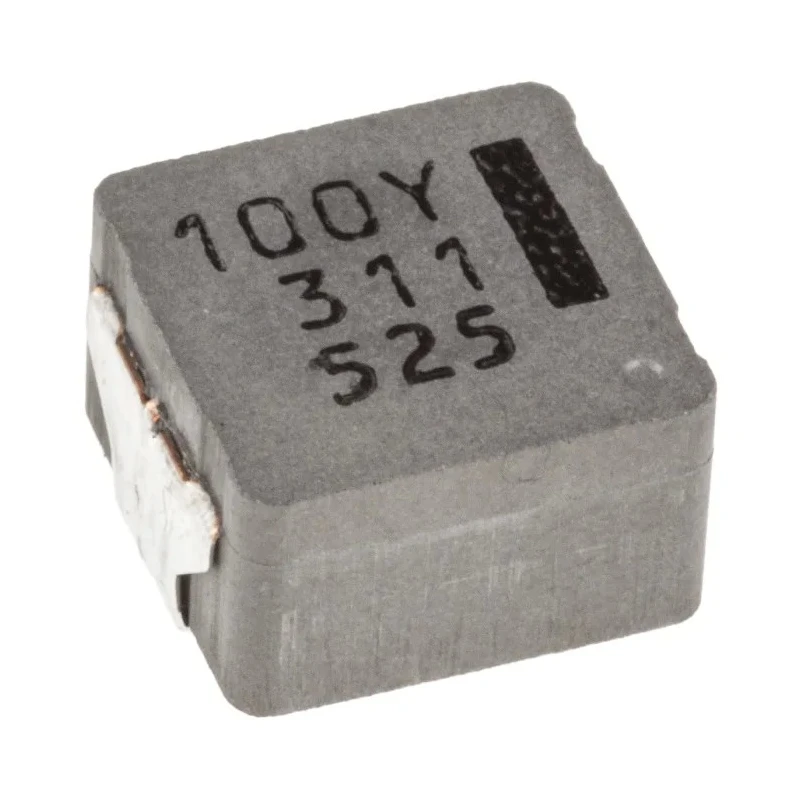

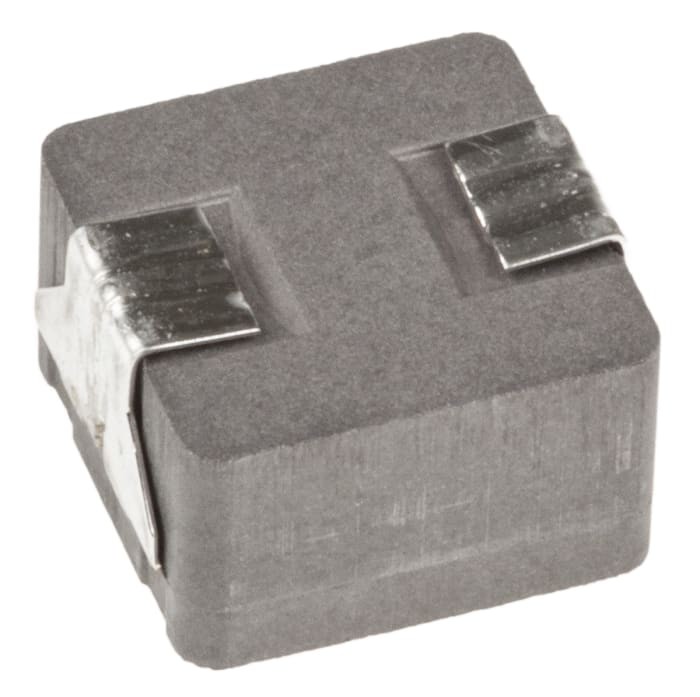

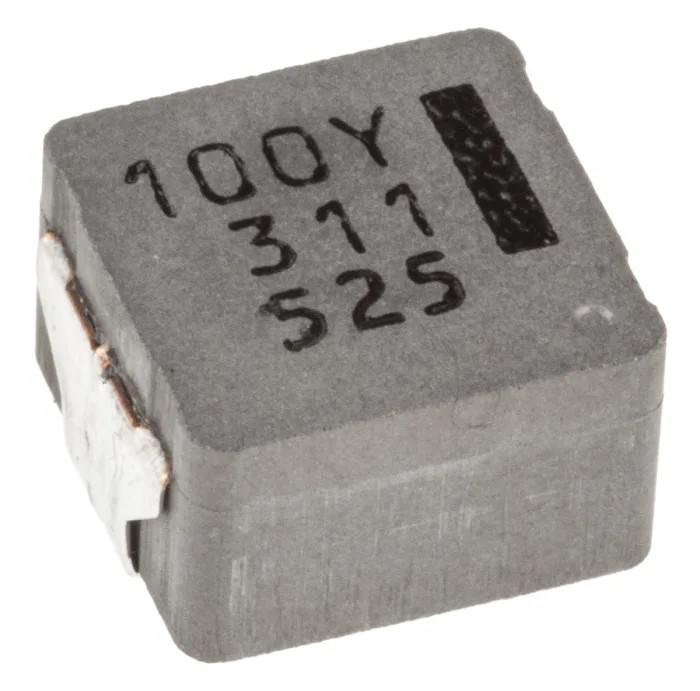

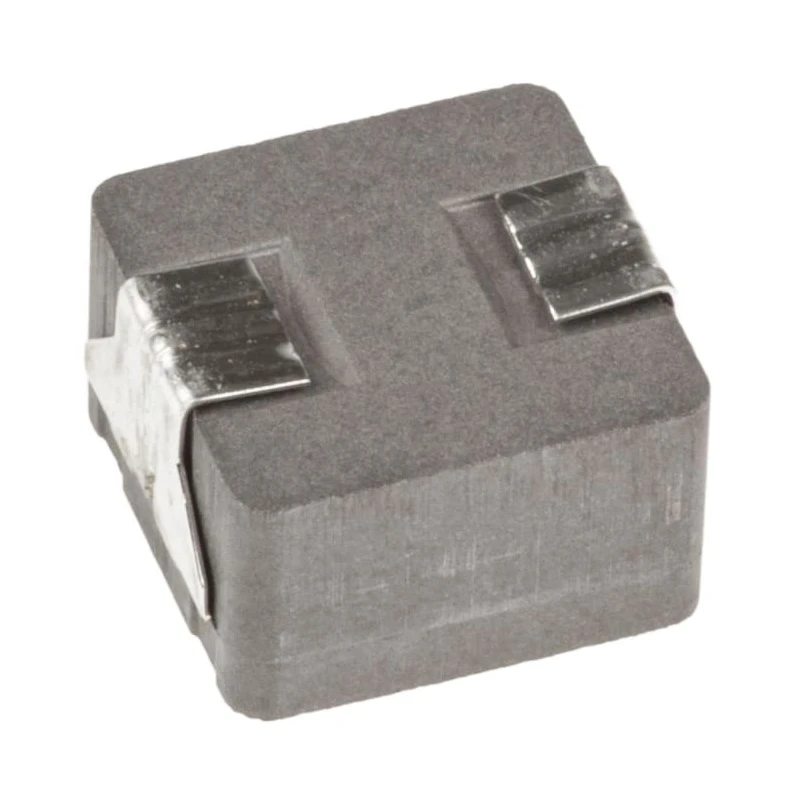

Panasonic 10 μH ±20% Shielded Wirewound Surface Mount Inductor with Metal Composite Core 6.7 A Idc ETQP5M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.4mm |
| Length | 8.5mm |
| Model | ETQP5M |
| Depth | 8mm |
| Packaging | Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 0854 |
| Maximum DC Current | 6.7A |
| Pin Count | 2 |
| Maximum DC Resistance | 37mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a metal composite core for enhanced performance stability.
- Provides high reliability with compliance to AEC-Q200 automotive standard.
- Heat resistant up to 150°C for demanding thermal environments.
- Low DC resistance of 37 mΩ ensures efficient current flow.
- Construction includes magnetic shielding to reduce electromagnetic interference.
- Compact 0854 package size with reel packaging for efficient assembly.
- Wirewound construction offers stable inductance with low buzz noise.
- Suitable for use in DC-DC converters and noise filter circuits.
Product Description
Panasonic ETQP5M shielded wirewound surface mount inductor is engineered to meet high performance and reliability demands in automotive and industrial electronic applications. It features a 10 μH inductance with ±20% tolerance, and a maximum DC current rating of 6.7 A, making it ideal for high peak current circuits.
The inductor's metal composite core significantly enhances inductance stability and reduces buzz noise during operation. This series is designed to withstand temperatures up to 150°C, assuring durability in high-temperature environments. Compliant with the AEC-Q200 automotive standard, it guarantees robust performance under vibration and thermal stress.
Its compact 0854 package and reel packaging format facilitate high-volume, automated assembly processes. The wirewound construction provides low DC resistance of 37 mΩ, contributing to superior efficiency and reduced power loss, while the integral magnetic shielding minimizes electromagnetic interference.
Typical applications include DC-DC converter circuits and noise filters in drive electronics where reliability and current handling capabilities are critical. The product is RoHS certified and manufactured in Japan, ensuring quality and environmental compliance.
Metal composite core technology provides excellent inductance stability and low noise. AEC-Q200 qualification ensures suitability for automotive usage. High bias current capability accommodating up to 6.7 A DC current. Heat resistance up to 150°C supports demanding operating conditions.
Low winding resistance reduces energy losses and improves efficiency. Magnetic shielding reduces electromagnetic interference in sensitive circuits.
The Panasonic ETQP5M series is an optimal choice for designers requiring high reliability surface mount inductors with stable performance in automotive and industrial electronics. Browse other Surface Mount Inductors and electronic components at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with a tolerance of ±20%.
It has a maximum DC current rating of 6.7 A, making it suitable for high peak current circuits.
The maximum operating temperature for this unit is 150°C, which supports demanding thermal environments.
It features a metal composite core, which enhances inductance stability and reduces buzz noise during operation.
The inductor is housed in a compact 0854 package and is provided in reel packaging for efficient assembly.
The dimensions are 8.5 mm in length, 8 mm in depth, and 5.4 mm in height.
Yes, it is compliant with the AEC-Q200 automotive standard, ensuring robust performance under vibration and thermal stress.
The maximum DC resistance is 37 mΩ, which contributes to efficient current flow.
It is suitable for use in DC-DC converters and noise filter circuits in drive electronics.
The maximum self-resonant frequency is 100 kHz, which is important for high-frequency applications.
This inductor is manufactured in Japan, ensuring quality and environmental compliance.
The termination style for this model is surface mount, which is common for modern electronic applications.
