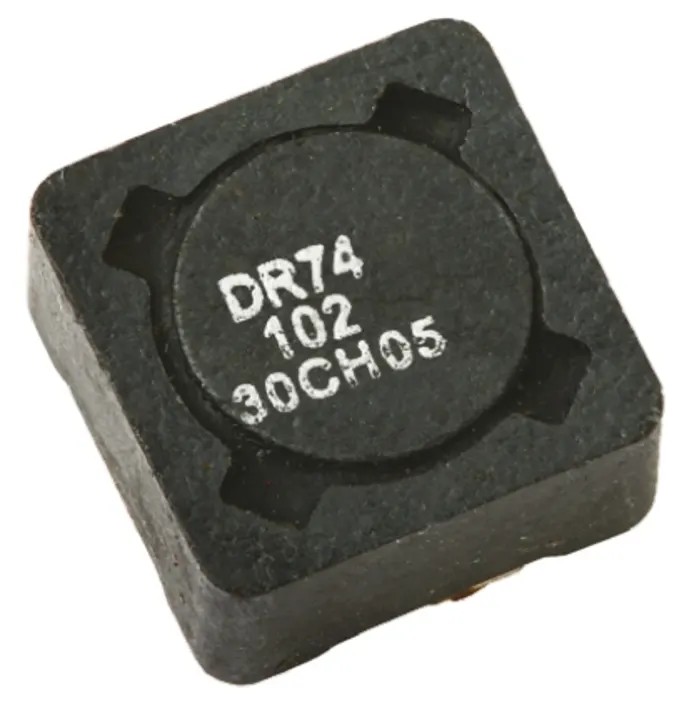

Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 1 μH ±20 % 10.2 A Idc 0704 DR74-1R0-R
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Height | 4.35mm |
| Length | 7.6mm |
| Model | DR74-1R0-R |
| Depth | 7.6mm |
| Packaging | Reel |
| Series | DR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 0704 |
| Maximum DC Current | 10.2A |
| Pin Count | 2 |
| Maximum DC Resistance | 9.9mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
Key Features
- Inductor features a ferrite core for high efficiency.
- Constructed with wirewound technology for reliable performance.
- Complies with RoHS standards ensuring environmental safety.
- Designed for surface mount applications with 2 pins and 0704 package case.
- Capable of operating within -40°C to 125°C temperature range.
- Maximum DC resistance is 9.9 milliohms, minimizing power loss.
- Provides shielding to reduce electromagnetic interference.
- Maximum self-resonant frequency of 100 kHz suitable for various electronic applications.
Product Description
Eaton DR74-1R0-R shielded wirewound Surface Mount Inductor offers a nominal inductance of 1 μH with ±20 % tolerance and a high maximum DC current of 10.2 A. The inductor employs a ferrite core and wirewound construction that ensures efficient magnetic performance and durability.
This component is tailored for surface mount technology with a 0704 case size, featuring 2 pins for easy PCB integration. The device is designed to operate reliably over a wide temperature range of -40°C to 125°C, supporting demanding industrial and electronic environments.
Its robust shielding helps minimize electromagnetic interference, which is critical in noise-sensitive circuits such as DC-DC converters, computers, DVD players, and portable devices. The maximum DC resistance of 9.9 mΩ ensures minimal power losses during operation.
The maximum self-resonant frequency of 100 kHz makes this inductor adaptable across a variety of power and signal conditioning applications. The device comes in reel packaging, facilitating efficient pick-and-place assembly in manufacturing.
It complies with RoHS environmental standards, and is manufactured in China under the Eaton DR series, renown for high power density and performance magnetically shielded inductors. These inductors are commonly used in filtering applications, buck and boost converters, and noise suppression circuits within industrial, commercial, and consumer electronics sectors.
Inductor features a ferrite core for high efficiency. Constructed with wirewound technology for reliable performance. Complies with RoHS standards ensuring environmental safety. Designed for surface mount applications with 2 pins and 0704 package case.
Capable of operating within -40°C to 125°C temperature range. Maximum DC resistance is 9.9 milliohms, minimizing power loss. Provides shielding to reduce electromagnetic interference. Maximum self-resonant frequency of 100 kHz suitable for various electronic applications.
Reel packaging suitable for automated assembly processes. Manufactured in China maintaining consistent quality. Explore more high-quality inductors and electronic components on EnvMart for your circuit design and assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this inductor is 1 μH with a tolerance of ±20%.
This model has a maximum DC current rating of 10.2 A.
The inductor has a height of 4.35 mm, a length of 7.6 mm, and a depth of 7.6 mm.
The maximum self-resonant frequency of this inductor is 100 kHz.
The maximum DC resistance is 9.9 mΩ, which helps minimize power loss during operation.
It can operate within a temperature range of -40°C to 125°C.
This inductor is constructed using wirewound technology with a ferrite core.
The termination style is surface mount, designed for easy PCB integration with 2 pins.
It is packaged in reel format, suitable for automated assembly processes.
This model complies with RoHS standards, ensuring environmental safety.
It is suitable for various electronic applications, including filtering, buck and boost converters, and noise suppression circuits.
This inductor is manufactured in China.
