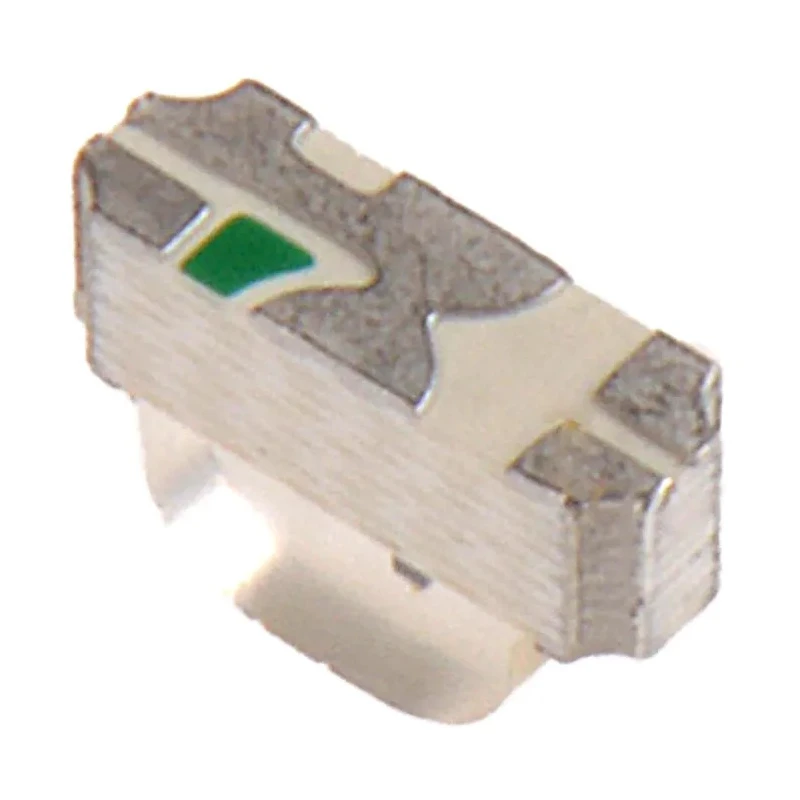

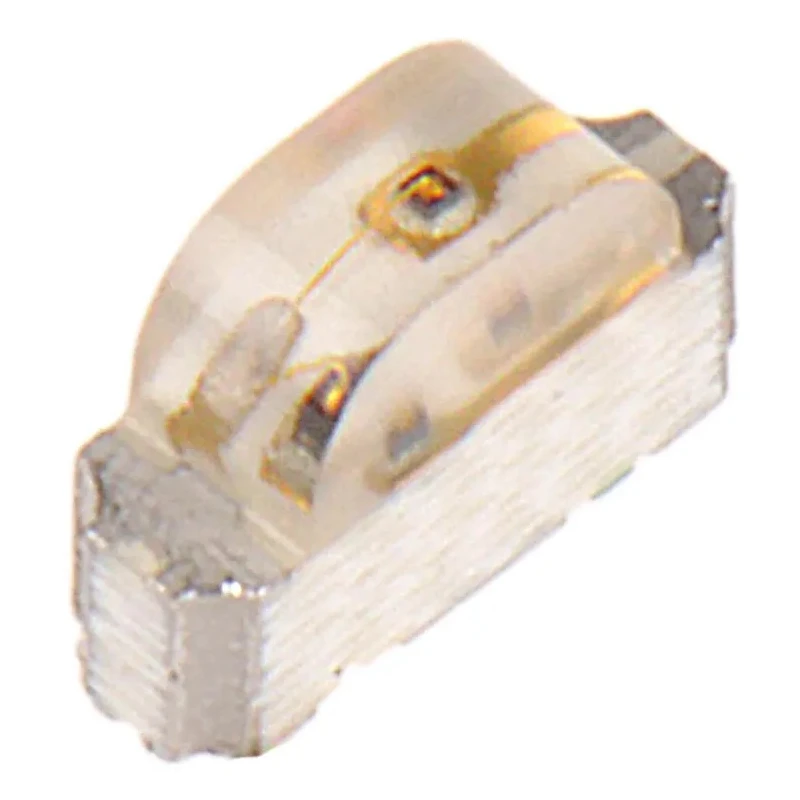

Kingbright 2.5 V Red, Green LED 3010 Surface Mount Tape & Reel KPBA-3010SURKCGKC

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 2.5 V Red, Green LED 3010 Surface Mount Tape & Reel KPBA-3010SURKCGKC

Name: Kingbright 2.5 V Red, Green LED 3010 Surface Mount Tape & Reel KPBA-3010SURKCGKC
Brand: Kingbright
SKU: 382509
Price: 0.36 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Model	KPBA-3010SURKCGKC
Packaging	Tape & Reel
Mount Type	Surface
Number Of Leds	2
Maximum forward current	30mA
Viewing angle	140 °
Package Type	3010
Standards/Approvals	RoHS
LED Colour	Red, Green
Dominant Wavelength	630nm
Forward Voltage	2.5V
Number of Pins	3
LED Luminosity	70 mcd, 300 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	3 x 1 x 2 mm
Lens Shape	Dome

Key Features

This LED features a 3.0 x 1.0 x 2.0 mm right angle package size.
It has a wide viewing angle of 140 degrees for broad visibility.
The device contains 2 LEDs with dome-shaped clear lenses.
Maximum forward current rating is 30 mA and maximum power dissipation is 75 mW.
The forward voltage is 2.5 V with 3 pins for electrical connection.
LED luminosity ratings are 70 mcd for red and 300 mcd for green light output.
The lens color and finish are clear to enhance brightness.
Kingbright KPBA-3010SURKCGKC complies with RoHS environmental standards.

Product Description

Kingbright KPBA-3010SURKCGKC is a Red and Green LED packaged in a 3010 surface mount tape and reel format designed for industry-standard SMT processes. The device offers a compact 3.0 x 1.0 x 2.0 mm right angle dome lens package ideal for backlighting and indicator use in electronic components.

This LED assembly includes 2 light emitting diodes with maximum forward current of 30 mA, ensuring low power consumption with maximum power dissipation of just 75 mW. The forward voltage of 2.5 V and a viewing angle of 140 degrees provide bright, wide-angle illumination with luminosity levels of 70 mcd for red and 300 mcd for green emission wavelengths, centered at 630 nm dominant wavelength.

The device features clear lens color and finish optimized for visibility and brightness while meeting RoHS compliance for hazardous substance regulations, making it suitable for environmentally conscious designs. It contains 3 pins for electrical mounting on printed circuit boards and is provided on a tape & reel packaging format that supports automated surface mount technology assembly.

Kingbright 3010 series LEDs find use in industrial electronics, automotive instrumentation, instrumentation panels, commercial displays, and indicator lights due to their high reliability, wide viewing cone, and efficient light output. This LED is specifically designed for surface mount applications requiring compact size and effective thermal management.

This product comes in a 3.0 x 1.0 x 2.0 mm 3010 package with dome-shaped clear lenses. It is rated for a maximum forward current of 30 mA and power dissipation of 75 mW. The dual red and green LEDs emit bright light at 70 mcd and 300 mcd respectively.

The wide viewing angle of 140 degrees provides excellent visibility. The device is RoHS compliant and supplied in tape and reel packaging for SMT assembly. Explore more Kingbright LED components and other high-quality electronic parts with EnvMart for reliable industrial and commercial lighting solutions.
