Kingbright 4.1 V Green LED Subminiature Surface Mount, Dome Lens, 185mA, 3 cd Luminosity KM2520ZGC09

Free Delivery in India | Lowest Global Shipping Charges

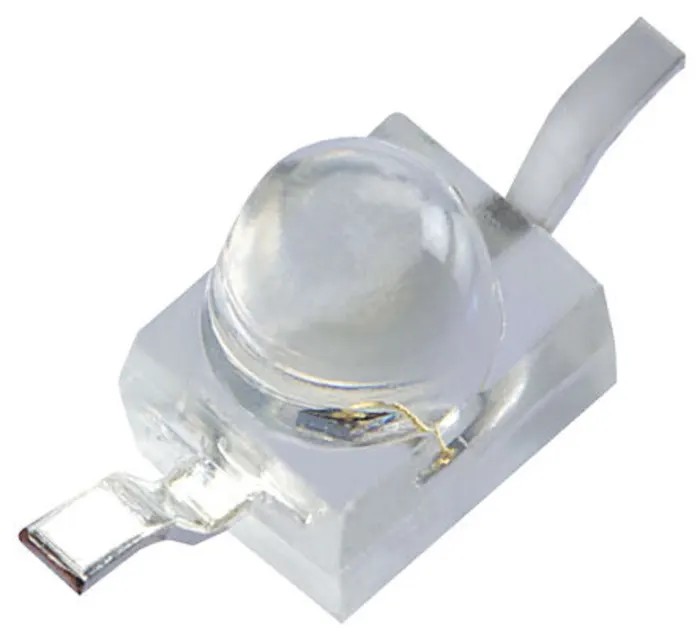

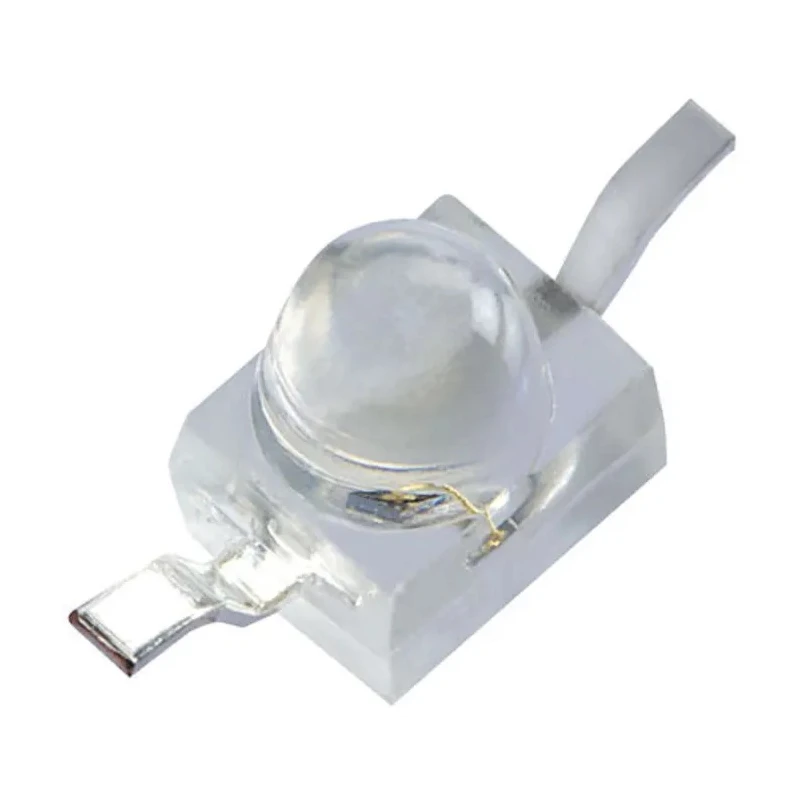

Kingbright 4.1 V Green LED Subminiature Surface Mount, Dome Lens, 185mA, 3 cd Luminosity KM2520ZGC09

Name: Kingbright 4.1 V Green LED Subminiature Surface Mount, Dome Lens, 185mA, 3 cd Luminosity KM2520ZGC09
Brand: Kingbright
SKU: 382490
Price: 1.01 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Model	KM2520ZGC09
Packaging	Tape & Reel
Mount Type	Surface
Series	KM2520
Maximum forward current	185mA
Viewing angle	20 °
Package Type	Subminiature
Standards/Approvals	RoHS
LED Colour	Green
Dominant Wavelength	525nm
Forward Voltage	4.1V
Number of Pins	2
LED Luminosity	3 cd
Maximum Power Dissipation	102.5mW
Lens Dimensions	2.5 x 2 x 2.8 mm
Lens Shape	Dome
Lead types	Gull-wing (GW), yoke and z-bend

Key Features

The LED emits green light with a dominant wavelength of 525nm.
It features a dome-shaped clear lens with a viewing angle of 20 degrees.
Maximum forward current rating is 185 mA to ensure reliable operation.
The LED package is subminiature with dimensions of 2.5 x 2 x 2.8 mm.
Lead types include gull-wing, yoke, and z-bend suitable for surface mounting.
It is packaged on tape and reel for automated assembly processes.
The LED provides a luminosity of 3 candela for bright indication.
This product complies with RoHS standards and is made in China.

Product Description

Kingbright KM2520ZGC09 is a subminiature green LED designed for surface mount applications, operating at 4.1 V forward voltage with a maximum power dissipation of 102.5 mW. This LED is part of the KM2520 series, providing compact size and reliable long-life solid state illumination ideal for electronic components, displays, and indicators.

The LED emits green light at a dominant wavelength of 525 nm and features a dome-shaped clear lens offering a focused 20° viewing angle. With a luminous intensity of 3 candela, it is suitable for applications requiring bright and clear visual feedback.

The package size measures 2.5 x 2 x 2.8 mm, with multiple lead types available including gull-wing, yoke, and z-bend to support various surface mount technologies. The LED is supplied on tape and reel packaging, promoting efficiency in automated processing and circuit board assembly.

Designed in compliance with RoHS environmental standards, this LED is manufactured in China, ensuring consistent quality for industrial, electronic, and commercial uses such as instrumentation, automotive dashboards, and signaling devices.

The LED emits green light with a dominant wavelength of 525 nm. Dome-shaped lens design enables a viewing angle of 20 degrees. Maximum forward current rating of 185 mA for reliable performance. Compact subminiature surface mount package measuring 2.5 x 2 x 2.8 mm.

Multiple lead types available including gull-wing, yoke, and z-bend. Packaged on tape and reel for automated production use. Luminosity rating of 3 candela provides bright illumination. RoHS compliant and made in China.

This subminiature LED is ideal for various electronics and industrial applications, ensuring efficient lighting in a compact footprint. Discover more Kingbright LEDs and other electronic components at EnvMart to enhance your projects with reliable and high-performance parts.
