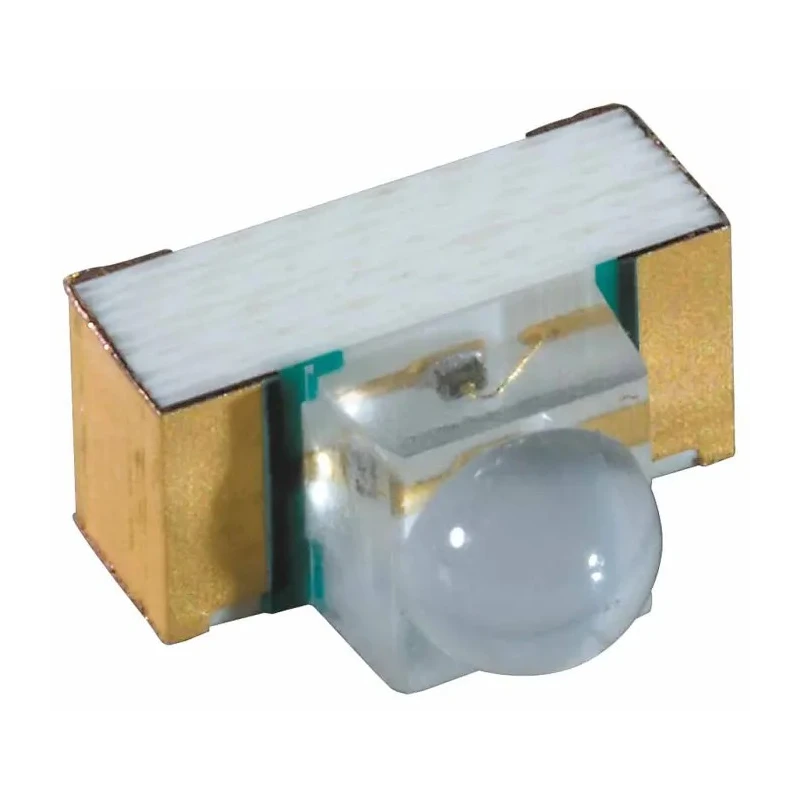

ams OSRAM IR LED Chip Dome Lens Surface Mount 950nm Peak Wavelength SFH 4045N

ams OSRAM SFH 4045N is a high-performance infrared (IR) LED designed as a surface mount Chip LED with a dome lens, emitting light at a peak wavelength of 950 nm. This compact LED device is engineered for applications requiring precise IR emission, including miniature photointerrupters, industrial electronics, mobile devices, and control and drive circuits.

The device features a radiant flux of 40mW and a radiant intensity of 90mW per steradian with a tightly focused 9° half intensity angle, making it highly effective in optical sensing and communication applications. It operates at a maximum supply voltage of 2.8 V and is designed with a 2-pin surface mount configuration for simplified integration into PCB assemblies.

This IR LED is part of the respected OSRAM Chipled series, known for their compact design and reliable optical output. The dome lens shape contributes to its directional beam characteristics, ensuring effective IR light transmission. It adheres to JEDEC standards, reflecting its compliance with quality and industry benchmarks.

Manufactured in Taiwan, Province Of China, the SFH 4045N is packaged on reels, facilitating efficient manufacturing processes by enabling automated component placement. The Chip LED comes with a compact surface mount package for efficient PCB integration.

Outputs high radiant intensity of 90mW/sr with radiant flux of 40mW. Designed with a narrow 9° angle of half intensity for focused infrared emission. Operates at a maximum supply voltage of 2.8 V with 2-pin configuration.

Features a dome-shaped lens providing consistent optical performance. Complies with JEDEC standards ensuring reliability and quality. Ideal for miniature photointerrupters, industrial electronics, and control applications.

Manufactured in Taiwan, Province Of China.

This IR LED is suitable for a wide range of industrial and commercial electronics uses, including precise sensing in automation systems, mobile controls, and optical communication devices. Its packaged reel format supports high-volume production environments.
