Panasonic Metal Series EXJZ Varistor, Maximum DC Voltage 26V, Surge Current 20A, SMT Multilayer Structure EZJZ1V330GA

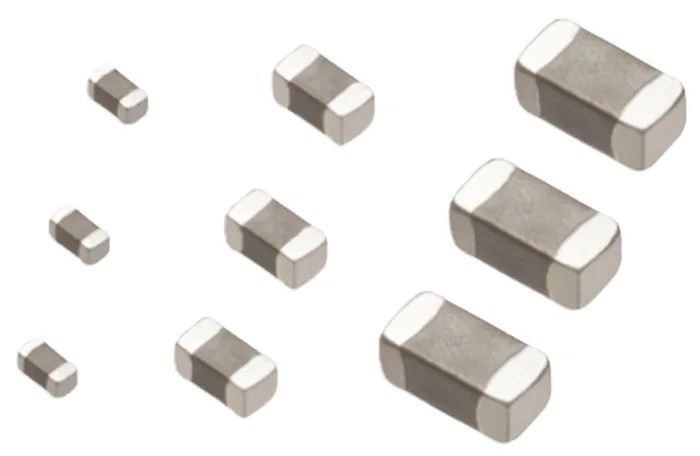

Panasonic EZJZ1V330GA Metal Series EXJZ Varistor is a surface mount transient suppressor engineered from advanced semiconductive ceramics, offering exceptional electrostatic discharge (ESD) protection. This multilayer, bipolar device functions effectively without polarity constraints and can serve as a replacement for one capacitor and two zener diodes in circuit designs.

The varistor has ultra-low capacitance, ensuring minimal impact on high-speed digital signals, and features lead-free terminal electrodes that ensure superior solderability, though flow soldering is not recommended.

Built to RoHS compliance and tested against the IEC61000-4-2 Level 4 standard, the varistor withstands surges of up to 20A with a maximum DC voltage rating of 26V and a maximum operating temperature of 85°C. Its compact dimensions of length 1.6 mm and depth 0.8 mm make it ideal for tight PCB layouts.

This device is targeted for industrial, laboratory, electronics manufacturing, and high-speed digital data line protection applications such as HDMI, USB 2.0, and IEEE1394 interfaces, providing reliable surge and ESD suppression to protect sensitive components.

This varistor's ultra-low capacitance enables high-speed data line compatibility. Advanced semiconductive ceramic construction delivers robust ESD suppression. Bipolar multilayer design eliminates polarity concerns in circuit integration.

Lead-free terminals enhance soldering performance with environmental compliance. RoHS certified and compliant to IEC61000-4-2 Level 4 for electrostatic discharge. Supports surge currents up to 20A, suitable for protecting digital signal lines.

Compact 1.6 mm length and 0.8 mm depth fits on dense PCB layouts. Explore Panasonic Varistors and other surge protection components at EnvMart for high-quality electronic component solutions.
