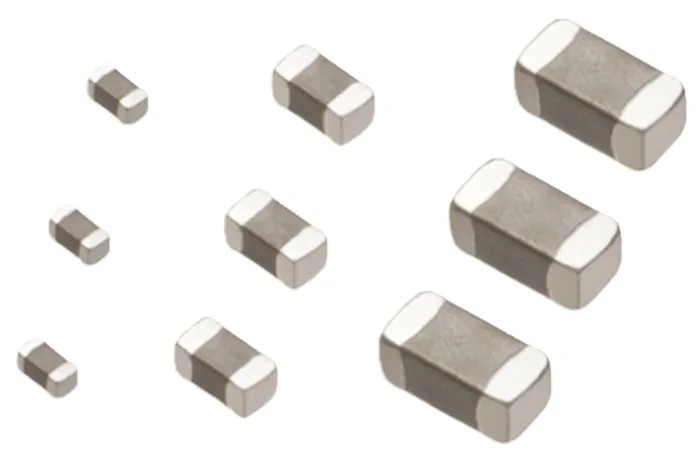

Panasonic Metal EXJZ Series Varistor 30V DC 15A 1.6mm x 0.8mm EZJZ1V420FA

Panasonic EZJZ1V420FA metal varistor is a compact, multilayer transient suppressor designed for effective electrostatic discharge (ESD) protection in electronic circuits. This varistor belongs to the EXJZ series and operates at a maximum DC voltage of 30 volts with a maximum surge current of 15 amperes. It has a small footprint with dimensions of 1.6 mm length and 0.8 mm depth, allowing integration into space-constrained PCBs.

Manufactured from advanced semiconductive ceramics combined with metal, it provides excellent ESD suppression performance particularly useful in sensitive high-speed data lines. The bipolar multilayer construction eliminates polarity concerns and replaces the need for multiple discrete components such as capacitors and zener diodes.

Panasonic's EZJZ varistor series complies with RoHS environmental standards and is equipped with lead-free terminal electrodes that ensure excellent solderability during manufacturing processes. However, flow soldering processes should be avoided to maintain product integrity.

This varistor is rated for a maximum operating temperature of 85 degrees Celsius and meets the IEC61000-4-2 Level 4 standard for electrostatic discharge resistance, making it suitable for industrial, communications, computer, and consumer electronic applications.

Applications for this varistor include protection of HDMI high-speed data buses, USB 2.0 ports, and IEEE1394 interfaces where reliable suppression of transient voltages is critical to device safety and data integrity.

Constructed with advanced metal semiconductive ceramic for reliable performance. Features ultra-low capacitance suitable for high-speed signal lines. Complies with RoHS standards and offers lead-free terminal electrodes.

Withstands maximum operating temperature up to 85 degrees Celsius. Multilayer bipolar structure ensures no polarity restrictions. Effective for ESD suppression compliant to IEC61000-4-2 Level 4 standard. Ideal for protecting HDMI, USB 2.0, and IEEE1394 interface high-speed data buses.

Designed for surface-mount technology applications.
