P.M.A 3RS7020 Series Digital Signal Conditioner Transmitter, Universal Output, 18 V ac, 30 V ac, 18 V dc SG45-115-00000-000

P.M.A SG45-115-00000-000 3RS7020 Series Digital Signal Conditioner Transmitter supports universal output ranges with adaptable supply voltages of 18 V ac, 30 V ac, 18 V dc, and 31 V dc. Designed to process and monitor electrical signals from strain gauges, load cells, melt pressure sensors, and resistance bridges, it offers high precision and fast response for industrial measurement needs.

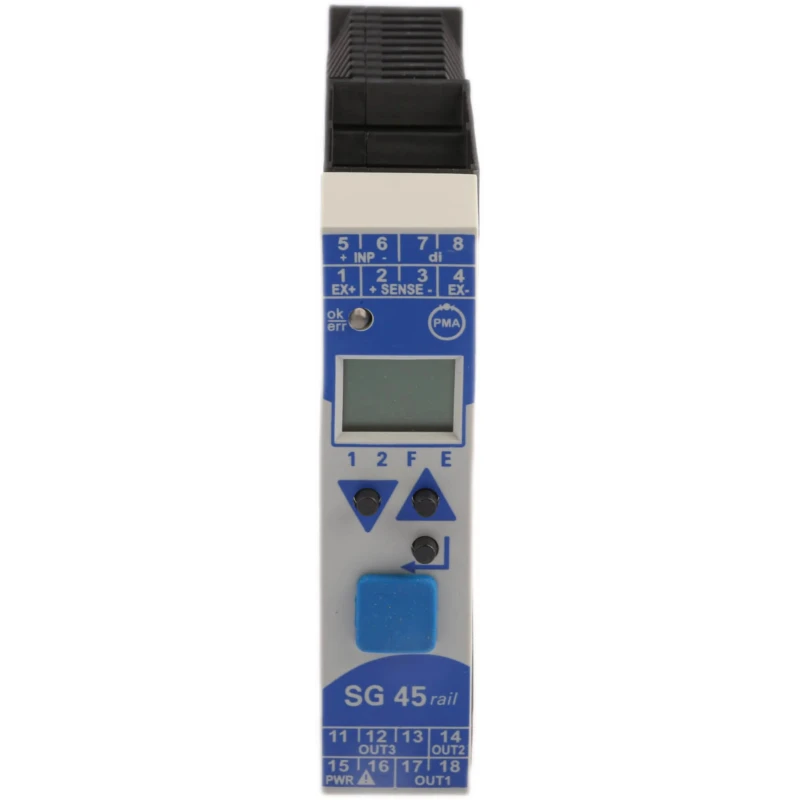

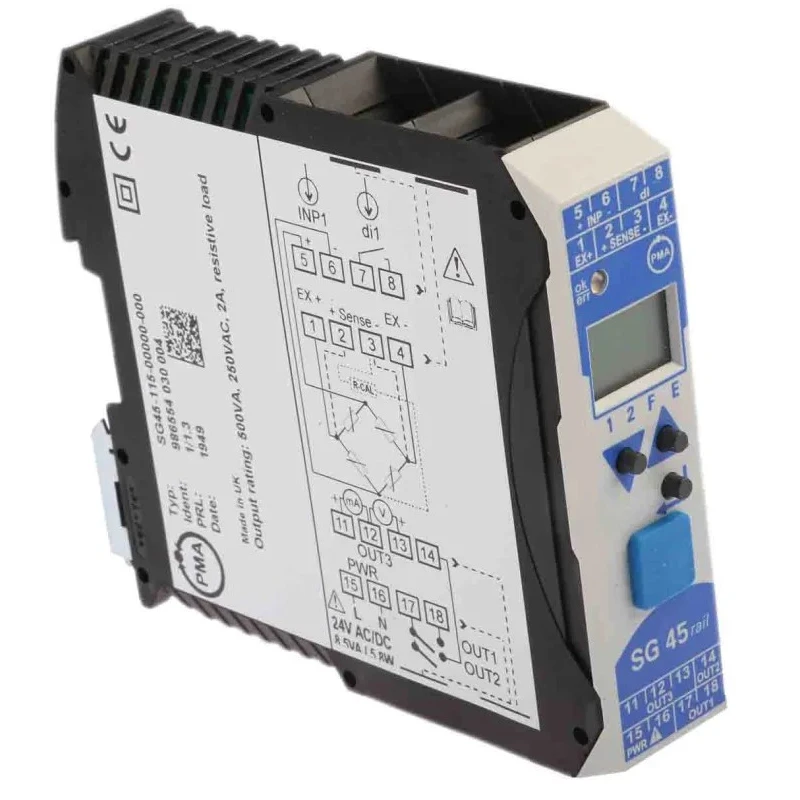

Its compact form factor of only 22.5 mm width allows easy DIN rail mounting and space-efficient installation. The device features a clear dual-line LCD with additional display elements and front-panel keys facilitating straightforward operation and parameter setting either manually or via PC connection.

This transmitter provides a high input resolution of 23 bits and a universal combined output of voltage/current at 14 bits, supporting output ranges of 0 to 10 V and 4 to 20 mA. The inclusion of two relay outputs and a rapid 50 ms cycle time ensures capability to handle fast signals effectively.

Additional functionalities include customer-specific linearization, dead load compensation, tare adjustment, and a min/max indicator. It has a robust construction suitable for various industrial sectors including chemical, food and beverage, concrete, asphalt, and building industries.

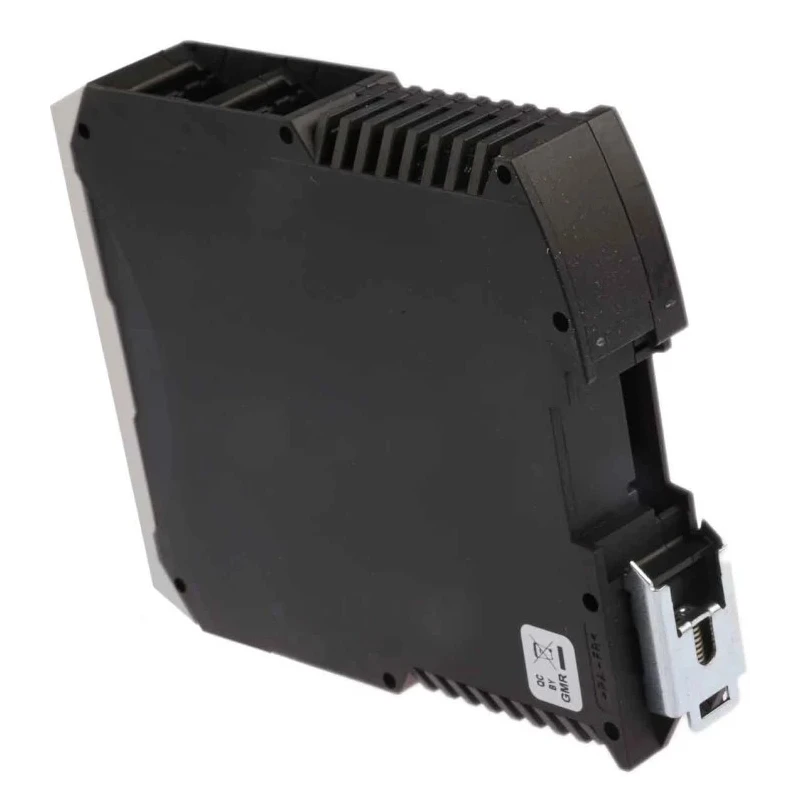

The unit operates reliably within a temperature range of -20°C to 60°C and provides an IP20 protection rating. Mounting is expedient with plug-in screw terminals or spring-clamp connectors on a DIN rail, enhancing installation ease and wiring security.

Processes signals from strain gauges, load cells, and resistance bridges. Compact DIN rail mount with 22.5 mm width for space-saving installation. Dual-line LC display for clear process value monitoring and easy operation.

High-resolution input (23 bits) and universal 14-bit output voltage/current. Quick 50 ms cycle time and two relay outputs for fast control response. Supports direct communication with controllers and bus couplers. Functions include linearization, tare adjustment, and min/max indicator.

Operating temperature range from -20°C to 60°C, IP20 rated. Suitable for industrial applications in chemical, food, construction, and materials industries. Explore a wide range of Signal Conditioners and transmitters in the Electronics & Electricals category on EnvMart for automation and measurement solutions.
