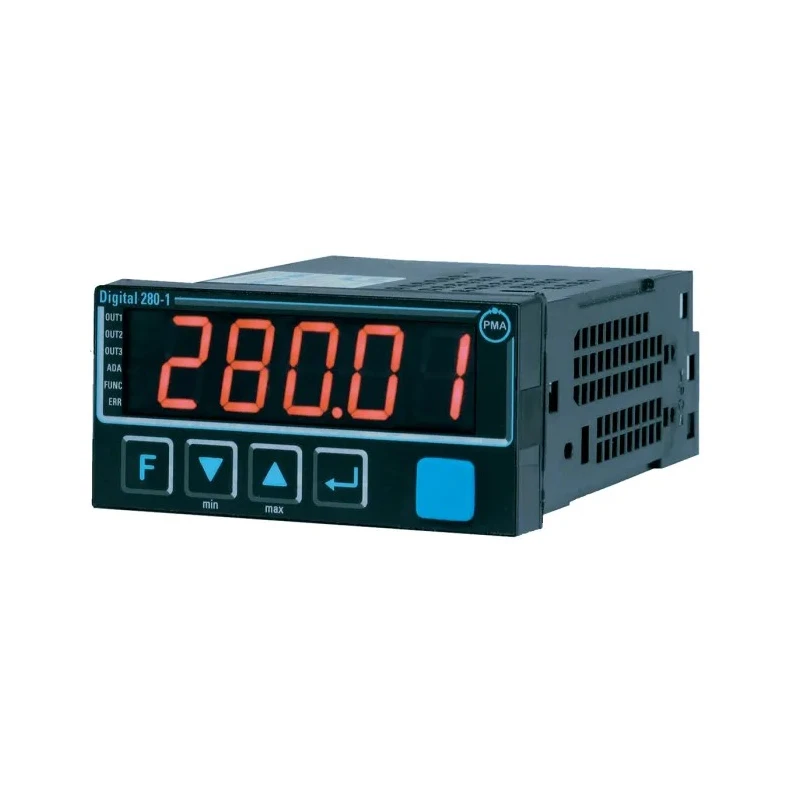

P.M.A BluePort Panel On-Off Temperature Controller 4 Input, 3 Output Analogue (0/4 to 20 mA), Logic D280-112-1000D-000
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Display Type | 19 mm, 5 Digit |
| Brand | P.M.A |
| Length | 96mm |
| Model | D280-112-1000D-000 |
| IP Rating | IP00, IP65, IP20 |
| Width | 96mm |
| Mount Type | Panel |
| Number of inputs | 4 |
| Output type | Analogue (0/4 to 20 mA), Logic, Relay (NO), 0/2 to 10 V |
| Series | BluePort |
| Input Type | K Type Thermocouple |
| Maximum Operating Temperature | 60°C |
| Control Type | On-Off, PID Controller, Continuous Control, 2 Point Control (On/Off), Self-Tuning |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 2A |
| Number of outputs | 3 |
| Terminal type | Screw |
| Maximum Voltage | 250V ac |
| Maximum Supply Voltage | 260V ac |
| Digital Comms | Modbus RTU, RS422/RS485 |
| Diagnostics | Short Circuit, Internal Fault, Fault During Self-Tuning, Latched Limit Messages, Sensor Break Detection, Reverse Polarity, Display Of Error Messages, Warnings, Eeprom |
| Panel Depth | 118mm |
| The Digital 280-1 indicator is suitable for use in the following applications | Furnaces and ovens, Burners and boilers, Weighing and batching, Process control & Plastics processing |
Key Features
- Features four input channels compatible with K Type Thermocouple sensors.
- Provides three outputs including analogue, logic, and relay with normally open contacts.
- Maximum current rating of 2A ensures robust control operations.
- Operates within 0°C to 60°C for diverse industrial environments.
- Offers multiple control modes including On-Off, PID, continuous, 2-point, and self-tuning control.
- Equipped with screw terminals for secure panel mounting installation.
- Supports digital communications via Modbus RTU and RS422/RS485 protocols.
- Includes comprehensive diagnostics such as short circuit, sensor break detection, and error message display.
Product Description
P.M.A D280-112-1000D-000 BluePort Panel On-Off Temperature Controller is a compact 96 mm wide device designed for precise process temperature regulation in industrial applications. It features four input channels and three output paths to deliver accurate on-off and continuous control using analogue (0/4 to 20 mA), logic, and relay (normally open) signals. The screw terminal mounting and BluePort® front interface enable straightforward installation and configuration.
This controller supports a wide range of control types including PID, two-point control, self-tuning, and continuous control, optimized for furnaces, ovens, burners, boilers, weighing and batching processes, plastics processing, and general process control. The unit operates reliably within a 0°C to 60°C temperature range and handles supply voltages up to 260V AC.
The digital 280-1 indicator provides fast response with a 100 ms scan rate and includes customer-specific sensor linearization with 16 segments. It retains minimum and maximum process values for quick reference on the high-visibility 19 mm, 5-digit display. Advanced diagnostics ensure fault detection, including sensor break, internal faults, self-tuning errors, and polarity reversals.
Four input channels for K Type Thermocouple sensor inputs. Three output channels: analogue, logic, and normally open relay. Control modes: On-Off, PID, continuous, 2-point, and self-tuning. Digital communications via Modbus RTU, RS422/RS485.
High level of diagnostic functionality for maintenance and error management. Compliant with EMC and safety standards EN 61 326-1, CULus, UL 94 VO, EN 61010-1, and GOST-R.
Manufactured in the United Kingdom, this controller is suitable for demanding industrial environments requiring reliable temperature monitoring and control. It features an IP rating of IP00, IP20, and IP65 depending on installation. The 118 mm panel depth and 96 mm width allow integration into various control panels.
Explore the full range of P.M.A Temperature Controllers at EnvMart for all your industrial temperature regulation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports K Type Thermocouple sensors as its input type.
It provides three output types: analogue (0/4 to 20 mA), logic, and a normally open relay.
The maximum operating temperature for this controller is 60°C.
This unit features four input channels for temperature measurement.
It offers multiple control modes including On-Off, PID, continuous, 2-point, and self-tuning control.
The panel depth of this model is 118 mm.
It supports digital communications via Modbus RTU and RS422/RS485 protocols.
The maximum current rating for the outputs is 2A.
This controller includes diagnostics for short circuit detection, sensor break detection, internal faults, and error message displays.
The IP rating for this model is IP00, IP20, and IP65 depending on installation.
It features a 19 mm, 5-digit display for process values.
This model is manufactured in the United Kingdom.
