P.M.A KS41 Panel PID Temperature Controller 5 Input 3 Output Relay 250V AC KS41

Free Delivery in India | Lowest Global Shipping Charges

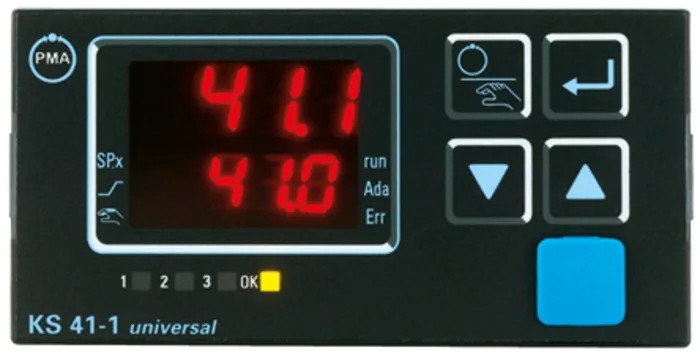

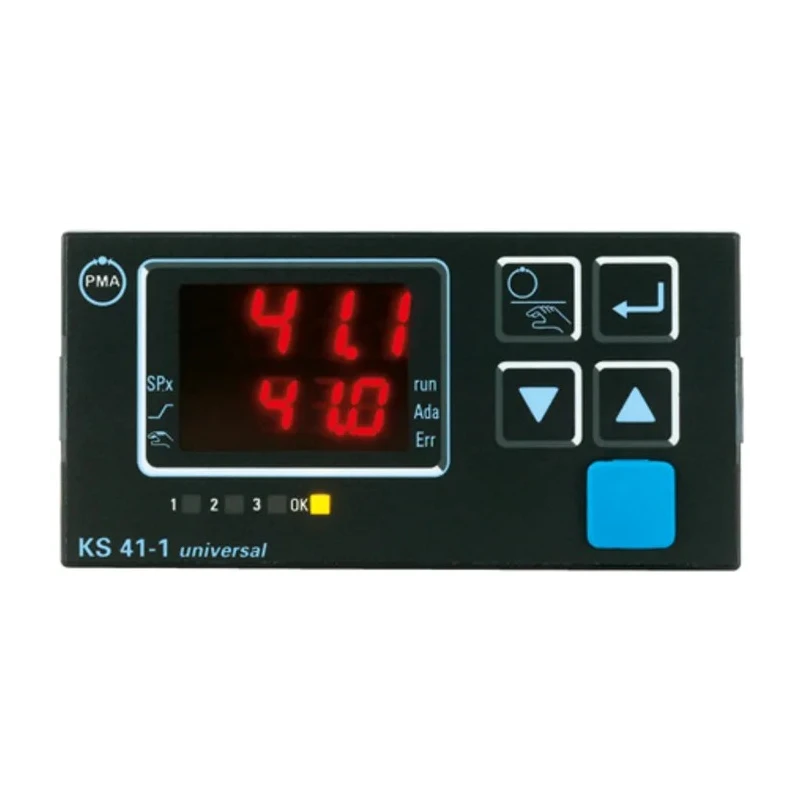

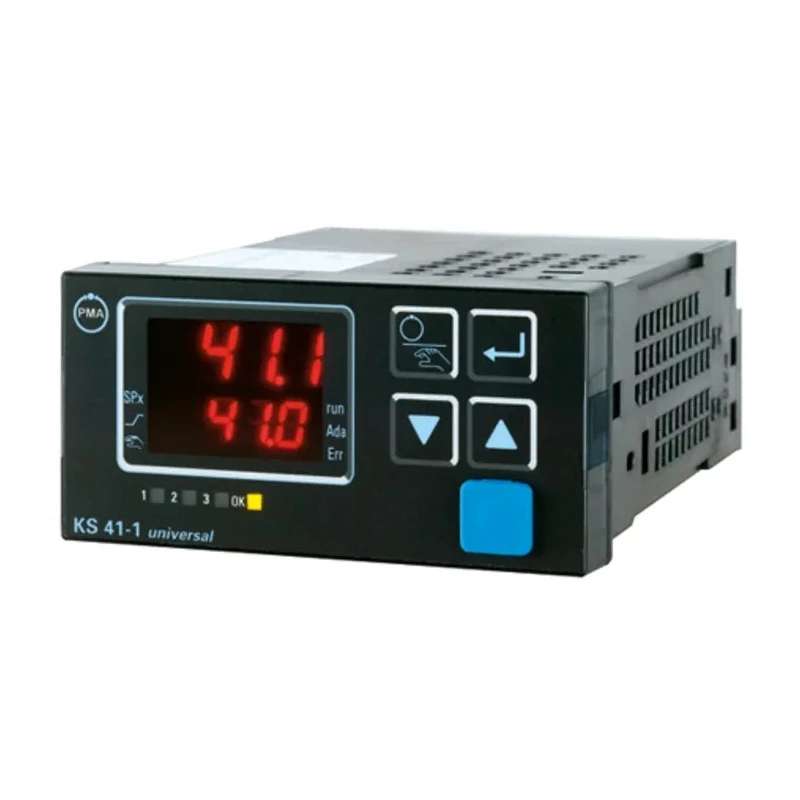

P.M.A KS41 Panel PID Temperature Controller 5 Input 3 Output Relay 250V AC KS41

Name: P.M.A KS41 Panel PID Temperature Controller 5 Input 3 Output Relay 250V AC KS41
Brand: P.M.A
SKU: 330389
Price: 776.09 USD
Availability: InStock



Category Temperature Controllers Brand P.M.A Condition New

Specifications

Country of Origin	Germany
Display Type	LED
Brand	P.M.A
Length	118mm
Model	KS41
IP Rating	IP00, IP65, IP20
Width	48mm
Mount Type	Panel
Number of inputs	5
Output type	Relay
Series	KS41
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-20°C
Number of outputs	3
Standards/Approvals	DIN 46 244 (Terminals)
Maximum Supply Voltage	250V ac
Digital Comms	RS485, RS422
Panel Depth	118mm
P.M.A KS40 Panel PID Temperature Controller, 2 Output Relay 250V ac On-OffBrand	P.M.A

Key Features

Equipped with 5 universal inputs for versatile temperature signal compatibility.
Features 3 output relays rated for 250V AC operation.
Offers multiple control modes including 2-point, continuous PID and 3-point stepping control.
Includes LED display for clear process monitoring and status indication.
Supports digital communication via RS485 and RS422 protocols.
Panel mount design with IP00, IP20, and IP65 ratings for different installation environments.
Operates within a temperature range from -20°C to 65°C.
Complies with DIN 46 244 terminal standards and is manufactured in Germany.

Product Description

P.M.A KS41 Panel PID Temperature Controller model KS41 offers a universal, precise, and cost-effective solution for temperature control across diverse industrial sectors. This 250V AC rated controller features 5 universal inputs enabling connection to various temperature sensors for accurate process value measurement.

The device includes 3 relay outputs designed for on/off or stepping control, supporting multiple control strategies such as 2-point on/off, continuous PID, and 3-point stepping control to meet complex process requirements.

Designed for panel mounting, the controller measures 118mm in length, 48mm in width, with a panel depth of 118mm. It features a robust LED display and supports digital communication protocols RS485 and RS422, facilitating integration with automation systems.

The KS41 controller ensures operational reliability within a temperature range from -20°C to 65°C and complies with DIN 46 244 terminal standards. It also offers additional analog inputs for heating current measurement or external setpoint inputs, extending functionality and control options.

Key user conveniences include BluePort front interface compatibility with BlueControl software for straightforward programming and maintenance manager functionalities with error logging. The compact, industrial-grade design makes this controller suitable for furnaces, ovens, burners, boilers, plastics processing, and drying applications demanding precise temperature regulation.

Equipped with 5 universal inputs for diverse sensor compatibility. Three relay outputs rated for 250V AC for reliable switching. Multiple control modes including PID and 3-point stepping. LED display for clear visualization of process status.

Supports RS485 and RS422 digital communication interfaces. Panel mountable with IP00, IP20, and IP65 protection options. Operates effectively from -20°C to 65°C temperature range. Complies with DIN 46 244 terminal standards ensuring safe connections.

BluePort interface and BlueControl software for easy configuration. Applicable for industrial heating and drying process controls. Explore EnvMart's extensive selection of industrial Temperature Controllers including P.M.A KS41 for reliable and precise process control solutions.
