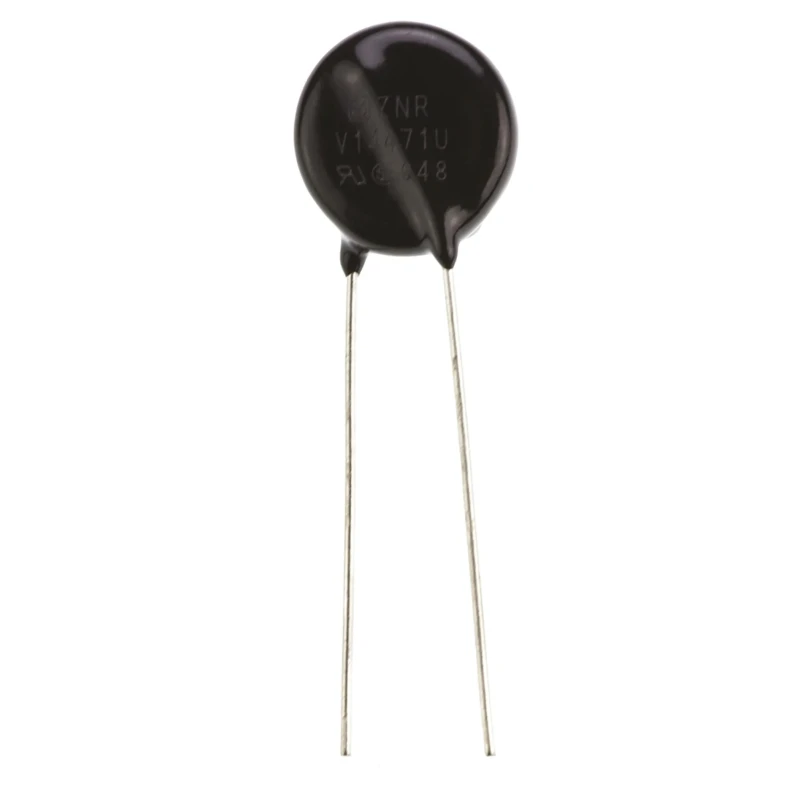

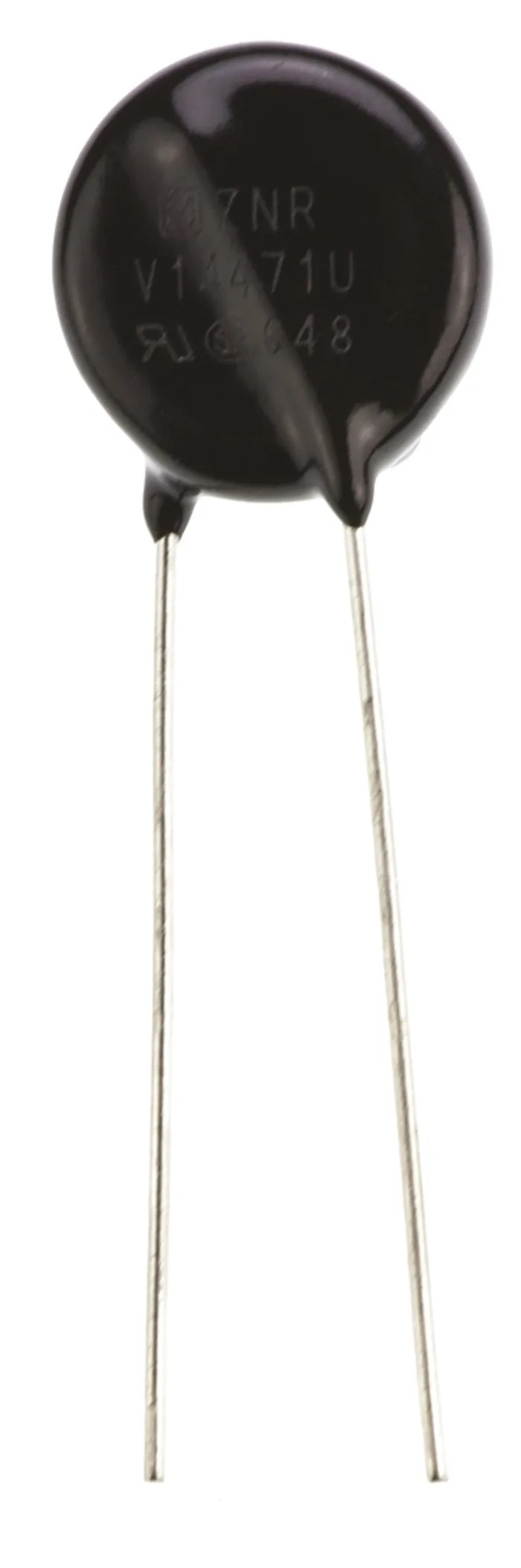

Panasonic Surge Absorber Varistor 470 V, Capacitance 400 pF, Clamping Voltage 1355 V, Clamping Current 50 A ERZV14D471
Specifications
| Country of Origin | Indonesia |
|---|---|
| Diameter | 15.5mm |
| Brand | Panasonic |
| THICKNESS | 6.2mm |
| Length | 38.5mm |
| Model | ERZV14D471 |
| Depth | 6.2mm |
| Mount Type | Radial |
| Series | V |
| Energy Rating | 0.4J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 400pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 670V dc |
| Pin Count | 2 |
| Termination Style | Crimped Lead |
| Lead Pitch | 7.5mm |
| Maximum AC Voltage | 505V ac |
| Clamping Voltage VC | 1355V |
| Clamping Current | 50A |
| Maximum Surge Current | 6kA |
| Varistor Voltage | 470 V |
| Panasonic Surge Absorber 400pF 50A, Clamping 775V, Varistor 470VBrand | Panasonic |
| Panasonic, E Surge Absorber 320 pF 50 A, Clamping 775 V, Varistor 470 VBrand | Panasonic |
Key Features
- The device features a radial mount type for easy PCB installation.
- It operates within a temperature range of -40°C to 85°C, ensuring durability under varied conditions.
- The varistor has a diameter of 15.5 mm, length of 38.5 mm, and thickness of 6.2 mm for compact sizing.
- It supports a maximum surge current of 6 kA and a clamping current of 50 A for high energy transients.
- The termination style involves crimped leads with a lead pitch of 7.5 mm to facilitate reliable connections.
- Complies with standards including UL1449, CSA C22.2, IEC62368-1, VDE IEC61051-1, IEC60950-1, CQC, and RoHS.
- Rated for a maximum AC voltage of 505 V and maximum DC voltage of 670 V.
- Energy rating of 0.4 J ensures effective suppression of transient voltages.
Product Description
Panasonic ERZV14D471 is a V series metal oxide varistor surge absorber designed to protect sensitive electronic equipment and circuits from voltage surges and transient spikes. This radial-mounted device features a 470 V varistor voltage and a high clamping voltage of 1355 V, capable of handling a clamping current of up to 50 A. Its capacitance of 400 pF and a compact form factor make it ideal for use in compact circuit assemblies.
With operational temperature ratings from -40°C to 85°C, the varistor is suitable for use in a broad range of industrial, commercial, and consumer electronic applications, including power supply circuits and surge protection modules. The 15.5 mm diameter and 38.5 mm length contribute to its adaptable mounting footprint, with crimped lead termination for secure soldering and a lead pitch of 7.5 mm, ensuring mechanical stability.
This Panasonic varistor meets several international safety and performance standards such as UL1449 and IEC62368-1, providing assurance of quality and reliability. It handles maximum AC voltage up to 505 V and DC voltage up to 670 V, making it effective in suppressing transient voltage spikes and protecting downstream components from damage.
The Varistor effectively absorbs large surge currents up to 6 kA and features an energy rating of 0.4 J. Its radial mount style supports easy integration into printed circuit boards typical in industrial, laboratory, and commercial electronic equipment.
RoHS compliance ensures the product is environmentally friendly and free from hazardous substances. The product originates from Indonesia, reflecting Panasonic’s global manufacturing footprint. Its reliable performance makes it suitable for use in surge suppressor units and industrial power supply systems.
Explore EnvMart’s extensive selection of Panasonic electronic protection devices and related components to enhance your circuit protection solutions with trusted brand quality and certified safety standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor can handle a maximum surge current of 6 kA, making it suitable for high energy transients.
The clamping voltage of this model is 1355 V, which helps protect sensitive electronic components from voltage spikes.
This varistor has a diameter of 15.5 mm, a length of 38.5 mm, and a thickness of 6.2 mm, allowing for compact installation.
The capacitance rating of this varistor is 400 pF, which is suitable for various electronic applications.
The maximum operating temperature for this varistor is 85°C, ensuring it can function effectively in a wide range of environments.
It features crimped lead termination, which provides reliable connections for easy soldering onto printed circuit boards.
The varistor is rated for a maximum AC voltage of 505 V and a maximum DC voltage of 670 V, making it versatile for different applications.
This model complies with several standards, including UL1449, CSA C22.2, IEC62368-1, and RoHS, ensuring quality and safety.
The lead pitch for this model is 7.5 mm, which facilitates mechanical stability and proper connections during installation.
The energy rating of this varistor is 0.4 J, which helps in effectively suppressing transient voltages.
The minimum operating temperature for this model is -40°C, allowing it to function in low-temperature environments.
This varistor is suitable for protecting sensitive electronic equipment and circuits from voltage surges and transient spikes in various applications.
