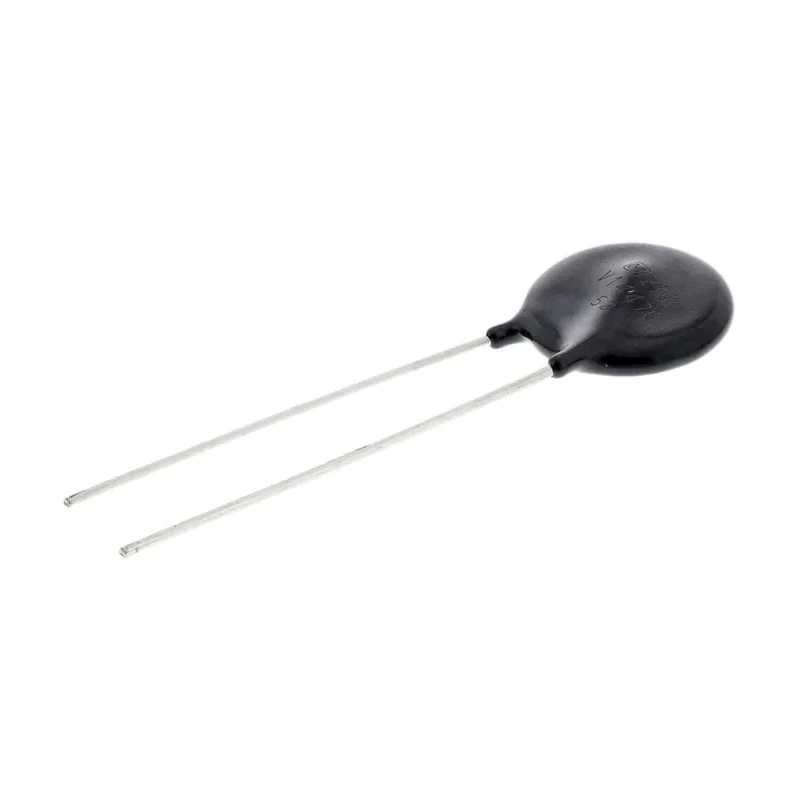

Panasonic V Surge Absorber 6.75nF 10A, Clamping Voltage 93V, Varistor Voltage 47V ERZV14D470
Specifications
| Country of Origin | Japan |
|---|---|
| Diameter | 15.5mm |
| Brand | Panasonic |
| THICKNESS | 5mm |
| Length | 38.5mm |
| Model | ERZV14D470 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | V |
| Energy Rating | 14J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 6.75nF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 38V dc |
| Standards/Approvals | VDE, UL 1449, CSA, CQC |
| Pin Count | 2 |
| Lead Pitch | 7.5mm |
| Maximum AC Voltage | 30V ac |
| Clamping Voltage VC | 93V |
| Clamping Current | 10A |
| Maximum Surge Current | 2kA |
| Varistor Voltage | 47 V |
| Wurth Elektronik, WE-VD Varistor 6.42 nF 10 A, Clamping 93 V, Varistor 47 VBrand | Wurth Elektronik |
| Panasonic Surge Absorber 6.75nF 10A, Clamping 93V, Varistor 47VBrand | Panasonic |
Key Features
- Capacitance of 6.75nF ensures effective surge absorption during transient events.
- Clamping voltage set at 93V provides reliable voltage protection.
- Varistor voltage rated at 47V for optimum circuit safeguard.
- Designed for through-hole mounting with two pins and a lead pitch of 7.5mm.
- Compact dimensions with 15.5mm diameter, 38.5mm length, and 5mm thickness.
- Operates reliably within a temperature range from -40°C to 85°C.
- High energy rating of 14J allows absorption of repeated surges.
- Certified to international standards including VDE, UL 1449, CSA, and CQC.
Product Description
Panasonic ERZV14D470 V Surge Absorber is a metal oxide varistor from the V series, designed to protect electrical and electronic circuits from voltage surges and transient voltage spikes. This device features a capacitance of 6.75nF and a clamping current rating of 10A, making it suitable for efficient surge absorption.
The varistor voltage of 47V combined with a clamping voltage of 93V allows for precise voltage protection, ensuring that connected components remain safe from damage during abnormal voltage conditions. Its through-hole mounting type with a lead pitch of 7.5mm facilitates easy integration on printed circuit boards.
With a compact size of 15.5mm diameter, 38.5mm length, and 5mm thickness, this varistor fits into space-constrained applications. It operates reliably across a wide temperature range of -40°C to 85°C, supporting various industrial and commercial environments.
The surge absorber boasts a high energy rating of 14J and a maximum surge current capacity of 2kA, enabling it to handle multiple and severe transient events without failure. It complies with key international standards including VDE, UL 1449, CSA, and CQC, ensuring compliance and safe use.
Manufactured in Japan, this Panasonic varistor delivers proven quality and durability. Typical applications include surge protection in power supplies, electronic devices, industrial machinery, and communication equipment.
Capacitance of 6.75nF ensures effective surge absorption during transient voltage events. Clamping voltage of 93V provides precise protective threshold. Varistor voltage of 47V supports optimal circuit protection. Through-hole mounting with 7.5mm lead pitch for easy PCB integration.
Compact dimensions allow use in space-limited applications. Wide operating temperature range from -40°C to 85°C ensures reliability. High energy absorption rating of 14J for resilience against surge events. Compliant with VDE, UL 1449, CSA, and CQC standards for assured safety.
Maximum surge current rating of 2kA extends device lifespan. Manufactured in Japan for consistent quality and dependability. Explore Varistor products from Panasonic and related surge protection components at EnvMart for your industrial and electronic circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 6.75nF, which ensures effective surge absorption during transient voltage events.
The clamping voltage is set at 93V, providing reliable voltage protection for connected components.
The varistor voltage is rated at 47V, which supports optimal circuit protection.
This surge absorber has a diameter of 15.5mm, a length of 38.5mm, and a thickness of 5mm.
The maximum surge current capacity is 2kA, allowing it to handle multiple and severe transient events without failure.
It operates reliably within a temperature range from -40°C to 85°C, supporting various industrial and commercial environments.
This model features through-hole mounting with a lead pitch of 7.5mm for easy integration on printed circuit boards.
It is certified to international standards including VDE, UL 1449, CSA, and CQC, ensuring compliance and safe use.
The energy rating is 14J, which indicates its capability to absorb repeated surges effectively.
Typical applications include surge protection in power supplies, electronic devices, industrial machinery, and communication equipment.
The clamping current rating is 10A, which contributes to its effectiveness in surge protection.
This surge absorber is manufactured in Japan, ensuring consistent quality and dependability.
