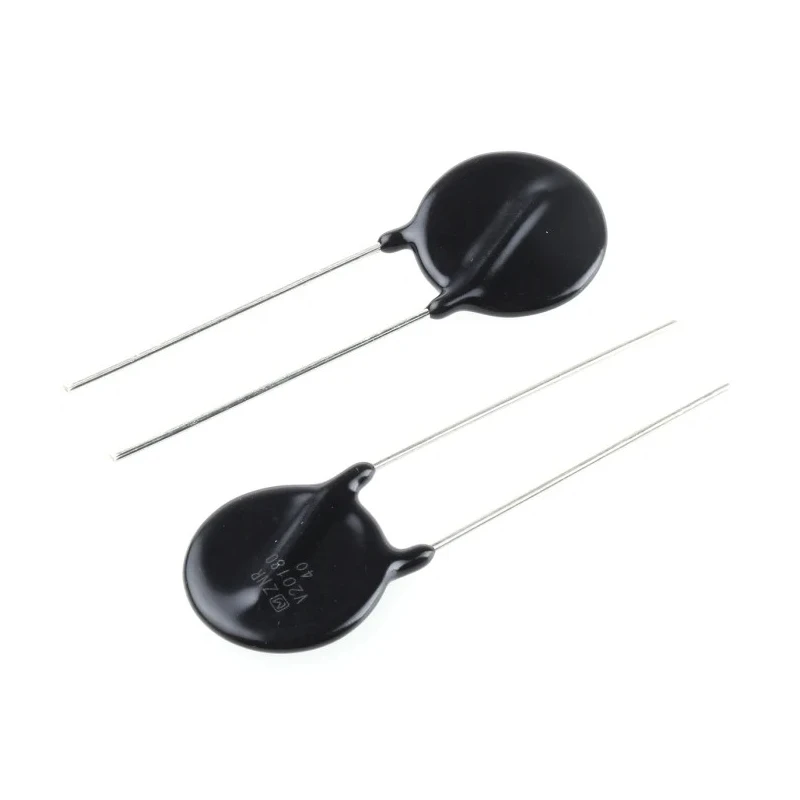

Panasonic V Surge Absorber 40nF 20A Clamping Voltage 1815V Varistor 18V ERZV20D180
Specifications
| Country of Origin | Japan |
|---|---|
| Diameter | 21.5mm |
| Brand | Panasonic |
| THICKNESS | 5.1mm |
| Length | 44.5mm |
| Model | ERZV20D180 |
| Depth | 5.1mm |
| Series | V |
| Energy Rating | 25J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 40nF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 14V dc |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-9989Brand: PanasonicManufacturers Part No.: ERZV20D180 |
| Pin Count | 2 |
| Termination Style | Crimped Lead |
| Lead Pitch | 10mm |
| Maximum AC Voltage | 385V ac |
| Clamping Voltage VC | 1815V |
| Clamping Current | 20A |
| Maximum Surge Current | 3kA |
| Varistor Voltage | 18 V |
Key Features
- Metal oxide varistor construction ensures robust performance and long life.
- Clamping voltage of 1815V provides effective voltage surge absorption.
- Compact 21.5mm diameter and 44.5mm length fit into diverse electronic assemblies.
- Operates reliably within temperature range from -40°C to 85°C.
- Crimped lead termination style facilitates easy and secure installation.
- Capacitance of 40nF suitable for filtering and transient suppression.
- Energy rating of 25 joules enables handling of high energy surges.
- Designed according to multiple standards including VDE IEC, UL1449, and CSA for safety and reliability.
Product Description
Panasonic ERZV20D180 is a V Series Surge Absorber Varistor designed for protection against transient voltage surges in electronic circuits and devices. Featuring a metal oxide varistor construction with a capacitance of 40nF, it supports a maximum clamping current of 20A and has a clamping voltage of 1815V, ideal for blocking high voltage spikes effectively.
Its compact form factor with a diameter of 21.5mm, length of 44.5mm, and thickness of 5.1mm makes it suitable for mounting in space-constrained electronic assemblies. The device has a robust energy rating of 25 joules and complies with international standards including VDE IEC61051 series, IEC60950-1 Annex.Q, UL1449, and CSA C22.2 No.1, guaranteeing reliable surge protection and operational safety.
The operating temperature range from -40°C to 85°C allows usability in a wide variety of environments ranging from industrial machinery to consumer electronics. The termination is a crimped lead type, which facilitates easy soldering and secure mechanical connection on printed circuit boards with a lead pitch of 10mm.
This varistor is manufactured in Japan, ensuring premium build quality and consistency. It is not suitable for automotive standards but is ideal for industrial, commercial, and residential electrical surge protection applications.
Metal oxide Varistor technology provides excellent voltage clamping performance. Compact size ensures integration into diverse electronic devices. High surge current rating for transient protection. Wide temperature range allows for versatile operating conditions.
Complies with multiple international safety and quality standards. Crimped lead termination allows for easy PCB mounting. Energy handling capacity of 25 joules. Reliable surge protection for industrial and electronic applications.
Manufactured in Japan for quality assurance. Explore the Panasonic range and other surge protection components on EnvMart for trusted electrical and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clamping voltage of this varistor is 1815V, which provides effective voltage surge absorption.
The capacitance of this model is 40nF, suitable for filtering and transient suppression applications.
This surge absorber has a diameter of 21.5mm, a length of 44.5mm, and a thickness of 5.1mm, making it compact for various electronic assemblies.
The maximum operating temperature for this varistor is 85°C, allowing it to function in a wide range of environments.
The energy rating of this varistor is 25 joules, enabling it to handle high energy surges effectively.
It features a crimped lead termination style, which facilitates easy and secure installation on printed circuit boards.
The clamping current rating of this model is 20A, which supports its ability to block high voltage spikes.
The minimum operating temperature for this surge absorber is -40°C, making it suitable for diverse applications.
This varistor can handle a maximum surge current of 3kA, providing robust protection against transient voltage surges.
This model complies with multiple safety standards, including VDE IEC61051, IEC60950-1, UL1449, and CSA C22.2 No.1.
The lead pitch for this model is 10mm, which is standard for many electronic applications.
This varistor is manufactured in Japan, ensuring consistent quality and performance.
