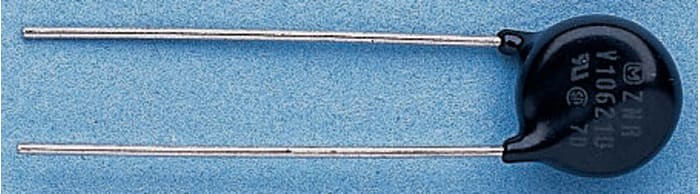

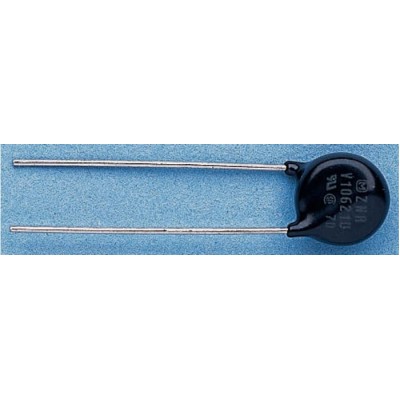

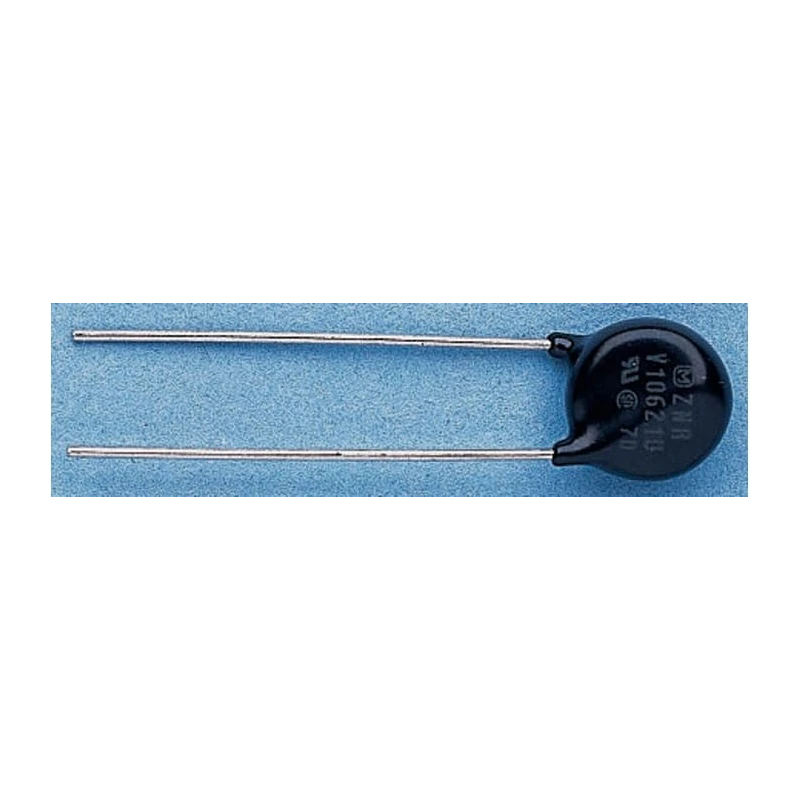

Panasonic V Surge Absorber Varistor 11 nF Capacitance 5 A Clamping Current 1815 V Clamping Voltage ERZV10D220

Panasonic ERZV10D220 V Surge Absorber is a metal oxide varistor specifically designed for protecting electronic circuits from voltage surges. Featuring an 11 nF capacitance and a 5 A clamping current capacity, it safeguards sensitive components by clamping transient high voltages up to 1815 V. The varistor is compact with an 11.5 mm diameter and a length of 34.5 mm, making it suitable for space-constrained applications.

This varistor supports a maximum AC voltage rating of 385 V and a maximum DC voltage of 14 V, ensuring versatility across various electrical systems. Operating reliably within an ambient temperature range of -40°C to 85°C, it is suitable for demanding industrial environments. The device terminates with crimped leads, facilitating robust and reliable soldering or connector assembly on printed circuit boards.

The energy rating of 25 joules enables efficient absorption of transient energy spikes, extending device lifecycle and enhancing system reliability. The series complies with international safety and performance standards such as VDE IEC61051-1, UL1449, GB8898, and CSA C22.2 No.1. This compliance makes it ideal for use in industrial, electronic manufacturing, telecommunications, and power distribution applications.

The Panasonic ERZV10D220 is engineered and manufactured in Japan, adhering to high quality standards. Its metal oxide construction delivers superior surge protection compared to standard varistors, with increased surge current handling capacity in a compact form factor. The 2-pin configuration and 7.5 mm lead pitch enable compatibility with most PCB layouts.

Compact metal oxide varistor design with 11.5 mm diameter. Clamping voltage rating of 1815 V with 5 A clamping current. Wide operating temperature range from -40°C to 85°C. Energy absorption rating of 25 joules for surge suppression.

Compliance with multiple international electrical standards. Crimped lead termination and 7.5 mm lead pitch for secure mounting. Manufactured in Japan ensuring quality and reliability.

This Panasonic Varistor is well-suited for surge protection in industrial power supplies, electronic circuit assemblies, telecommunications infrastructure, and automotive electronics where voltage transient suppression is critical. EnvMart offers this product as part of its comprehensive range of electronic components for robust industrial and commercial applications. Explore other high-quality Panasonic electronic components on EnvMart for your design and production needs.
