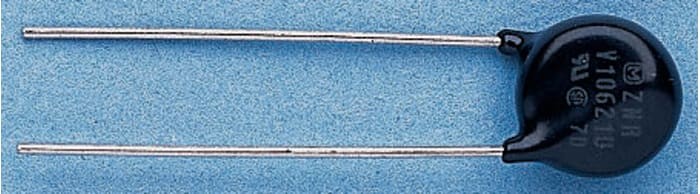

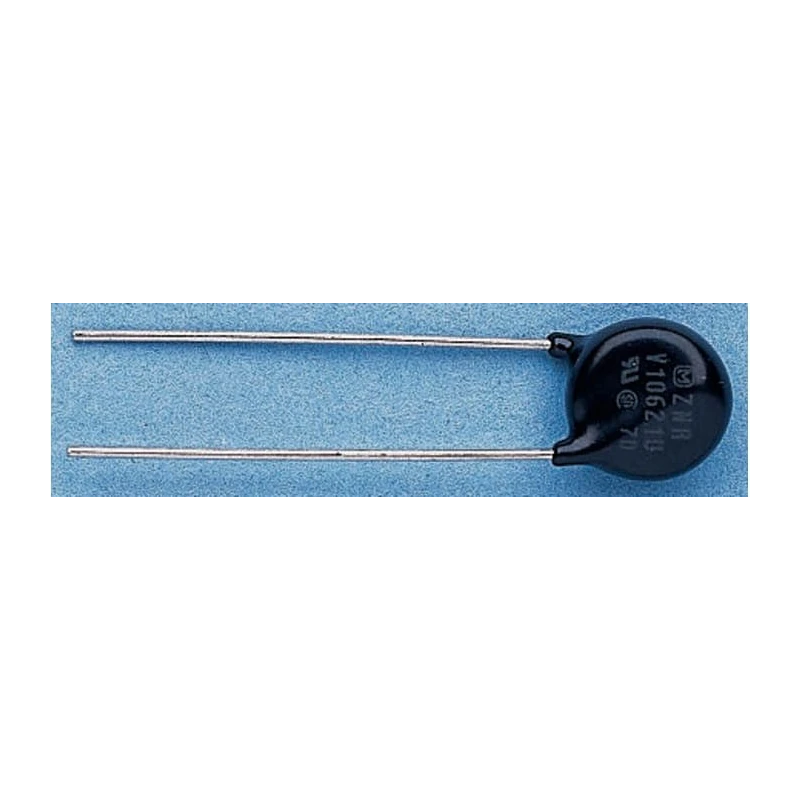

Panasonic V Surge Absorber Varistor 22 V, Capacitance 11 nF, Clamping Voltage 1815 V, Current 5 A ERZV10D220

Free Delivery in India | Lowest Global Shipping Charges

Panasonic V Surge Absorber Varistor 22 V, Capacitance 11 nF, Clamping Voltage 1815 V, Current 5 A ERZV10D220

Name: Panasonic V Surge Absorber Varistor 22 V, Capacitance 11 nF, Clamping Voltage 1815 V, Current 5 A ERZV10D220
Brand: Panasonic
SKU: 221058
Price: 0.38 USD
Availability: InStock



Category Surge Protection Components Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Diameter	11.5mm
Brand	Panasonic
THICKNESS	4.7mm
Length	34.5mm
Model	ERZV10D220
Depth	4.7mm
Series	V
Energy Rating	25J
Maximum Operating Temperature	85°C
Capacitance	11nF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	14V dc
Pin Count	2
Termination Style	Crimped Lead
Lead Pitch	7.5mm
Maximum AC Voltage	385V ac
Clamping Voltage VC	1815V
Clamping Current	5A
Maximum Surge Current	1kA
Varistor Voltage	22 V

Key Features

Designed for high surge current handling capacity in a compact 11.5 mm diameter form factor.
Clamping voltage rating of 1815 V ensures effective voltage suppression.
Suitable for operating temperatures ranging from -40°C to 85°C.
Metal Oxide Varistor technology reduces voltage spikes efficiently.
Crimped lead termination style enables easy installation and reliable connections.
Compliance with international standards including VDE IEC61051-1 and UL1449.
Maximum AC voltage rating of 385 V and DC voltage rating of 14 V.
Energy rating of 25 J supports repeated surge absorption.

Product Description

Panasonic ERZV10D220 is a high-performance V Surge Absorber Varistor designed for surge protection applications in electronic circuits. Featuring a varistor voltage of 22 V and an 11 nF capacitance, this component effectively limits voltage spikes by clamping voltage at 1815 V with a maximum clamping current of 5 A. It is engineered for industrial, commercial, and laboratory applications that require reliable voltage suppression to protect sensitive components from transient surges.

This varistor has a compact cylindrical form with a diameter of 11.5 mm and a length of 34.5 mm, making it suitable for integration into various power and electronic connectors. It accommodates a wide operating temperature range of -40°C to 85°C, making it reliable in diverse environmental conditions. The termination style uses crimped leads, facilitating easy mounting in automatic assembly lines and improving production efficiency.

The Panasonic ERZV10D220 complies with multiple safety and quality standards, including T10194, VDE IEC61051-1, GB8898, UL1449, and others, ensuring its suitability for global markets. It has a maximum AC voltage rating of 385 V and a maximum DC voltage rating of 14 V, with an energy rating of 25 Joules for consistent repeated surge absorption capability.

Its metal oxide varistor construction enhances surge tolerance with increased 2-surge current handling capability compared to standard varistors. This model is ideal for applications in surge protective devices, power distribution systems, and electronic equipment requiring transient voltage suppression.

Designed for robust surge current handling in compact size. Effective voltage clamping at 1815 V maximizes component protection. Wide temperature range supports industrial and commercial usage. Crimped lead termination for efficient installation.

Compliance with international safety and quality standards. Capacitance of 11 nF ensures effective transient suppression. Energy rating of 25 J for reliable performance under surge events. Dimensions optimized for integration in compact electronic systems.

Explore more Panasonic surge absorption components in the Electronics Components category at EnvMart for advanced industrial, laboratory, and commercial applications.

Explore more products in our Surge Protection Components category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The clamping voltage of the Panasonic ERZV10D220 is 1815 V, which ensures effective voltage suppression during surge events.

This model can operate at a maximum temperature of 85°C, making it suitable for a variety of environments.

The capacitance of this varistor is 11 nF, which helps in effective transient voltage suppression.

The dimensions of this varistor are 11.5 mm in diameter and 34.5 mm in length, with a thickness of 4.7 mm.

The energy rating of the Panasonic ERZV10D220 is 25 J, which supports consistent repeated surge absorption capability.

The maximum DC voltage rating for this varistor is 14 V, making it suitable for various electronic applications.

This model has a maximum AC voltage rating of 385 V, ensuring it can handle standard electrical conditions.

The termination style of the Panasonic ERZV10D220 is crimped lead, which facilitates easy installation and reliable connections.

The varistor voltage of the Panasonic ERZV10D220 is 22 V, which is crucial for its surge protection capabilities.

The maximum surge current rating for this model is 1 kA, enhancing its ability to withstand voltage spikes.

The Panasonic ERZV10D220 complies with several international standards, including VDE IEC61051-1 and UL1449, ensuring its suitability for global markets.

The minimum operating temperature for the Panasonic ERZV10D220 is -40°C, allowing it to function in extreme conditions.
