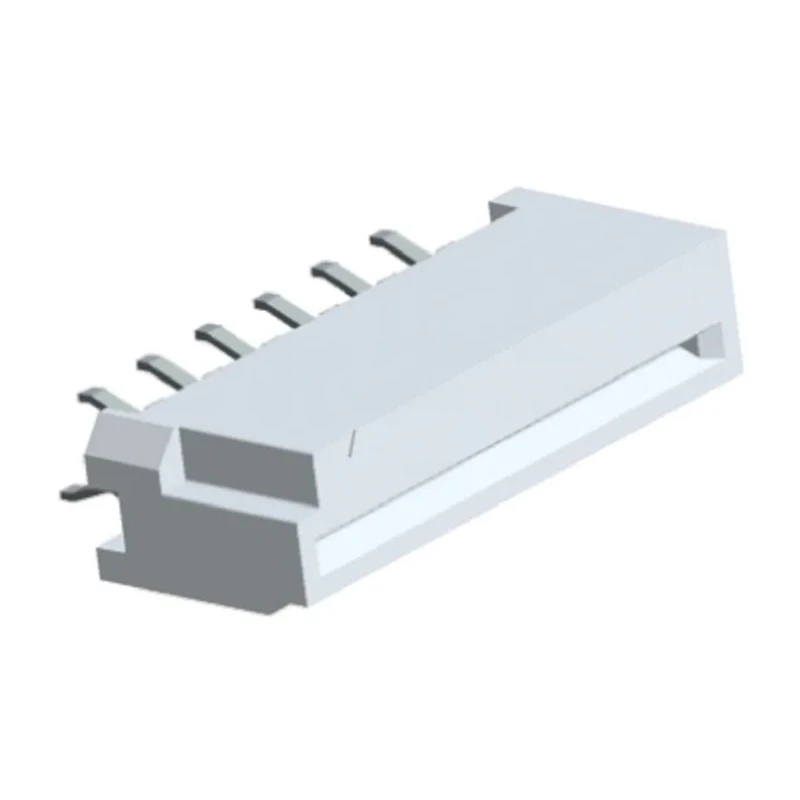

TE Connectivity FFC 1.25 mm Pitch 12 Way Straight Female FPC Connector Solder 1-84534-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | FFC |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | Non-ZIF |
Key Features
- Compact 1.25 mm pitch suitable for dense electronic assemblies.
- 12 contact points provide stable female connections.
- Through-hole mount type offers strong mechanical retention.
- Phosphor bronze contacts with tin plating for corrosion resistance.
- Non-ZIF insertion force simplifies assembly without sacrificing reliability.
- Polybutylene terephthalate housing provides durability and insulation.
- Operates safely at voltages up to 50V AC.
- Wide operating temperature range from -20°C to 80°C.
Product Description
TE Connectivity 1-84534-2 FFC 12 way straight female FPC connector with a 1.25 mm pitch is engineered for professional electronic component applications requiring compact and reliable connections. Featuring phosphor bronze contacts plated with tin and a durable polybutylene terephthalate housing, this connector supports through-hole mounting and solder termination types.
Its non-ZIF insertion force design facilitates efficient assembly without the complexity of Zero Insertion Force connectors. This component operates effectively within a voltage rating of 50V AC and can withstand temperatures ranging from -20°C to 80°C, making it suitable for a variety of electronic device environments.
The connector includes a locking mechanism to ensure stable cable retention, supporting enhanced reliability in industrial, laboratory, manufacturing, and electronic equipment use cases. Its 12 contact configuration and straight orientation make it ideal for flexible flat cable connections in compact spaces.
Applications include PCB connectivity in consumer electronics, communication devices, and instrumentation. The robust housing and plated contacts provide excellent electrical performance and mechanical stability during operation.
Compact 1.25 mm pitch suitable for dense electronic assemblies. 12 contact points provide stable female connections. Through-hole mount type offers strong mechanical retention. Phosphor bronze contacts with tin plating for corrosion resistance.
Non-ZIF insertion force simplifies assembly without sacrificing reliability. Polybutylene terephthalate housing provides durability and insulation. Operates safely at voltages up to 50V AC. Wide operating temperature range from -20°C to 80°C.
Includes locking mechanism to secure cable connections. Designed for solder termination ensuring robust contacts.
This TE Connectivity FPC connector ensures improved production efficiency and reliable connectivity for electronic manufacturing and repair operations. Explore more FPC Connectors and related components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this FPC connector is 1.25 mm, making it suitable for compact electronic assemblies.
This connector features 12 contact points, providing stable female connections for various applications.
It operates safely at voltages up to 50V AC, suitable for a range of electronic applications.
The operating temperature range is from -20°C to 80°C, allowing it to function effectively in various environments.
This model uses a through-hole mount type, which offers strong mechanical retention for reliable connections.
The contacts are made of phosphor bronze with tin plating, while the housing is constructed from polybutylene terephthalate.
This connector is designed for solder termination, ensuring robust electrical connections.
It features a non-ZIF (Zero Insertion Force) design, simplifying assembly without compromising reliability.
The current rating for this connector is 1A, making it suitable for low power applications.
This connector is suitable for PCB connectivity in consumer electronics, communication devices, and instrumentation.
The country of origin for this connector is India, indicating its manufacturing location.
