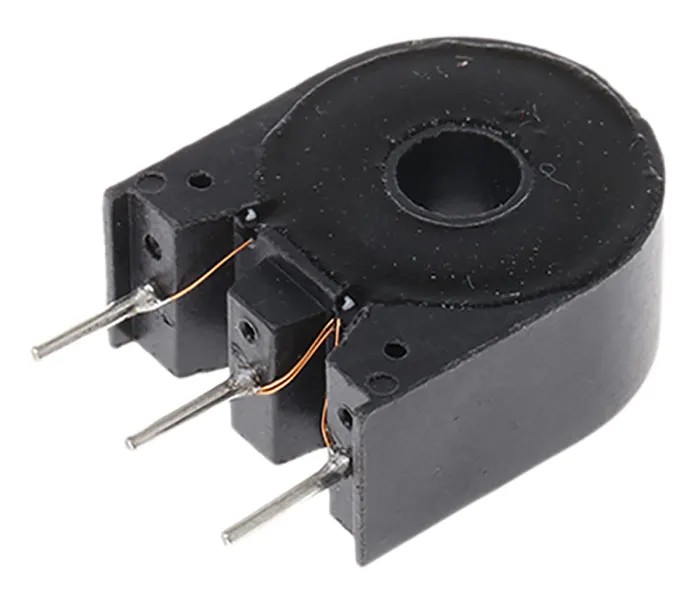

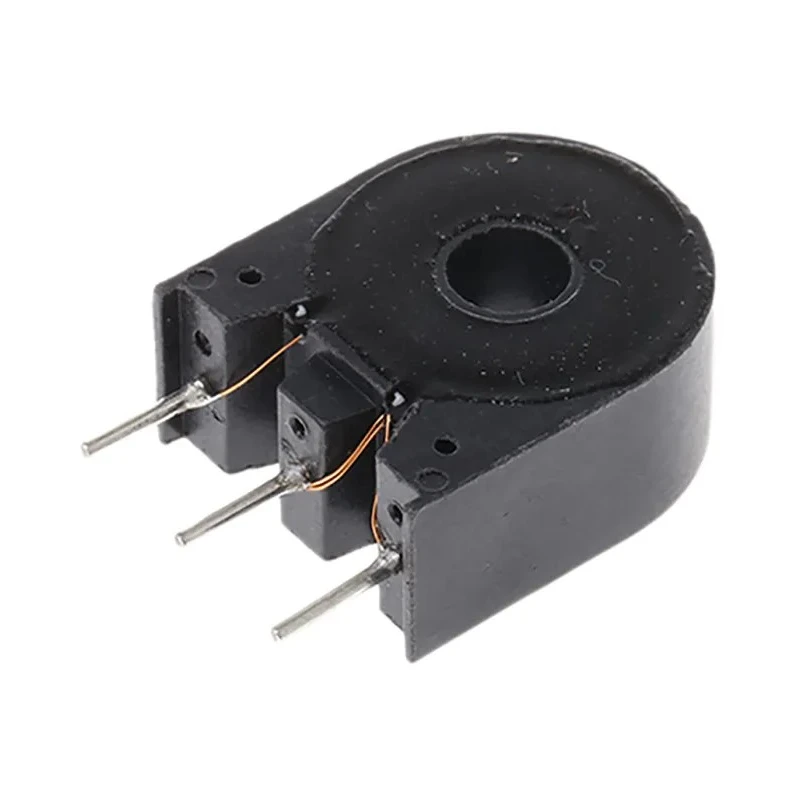

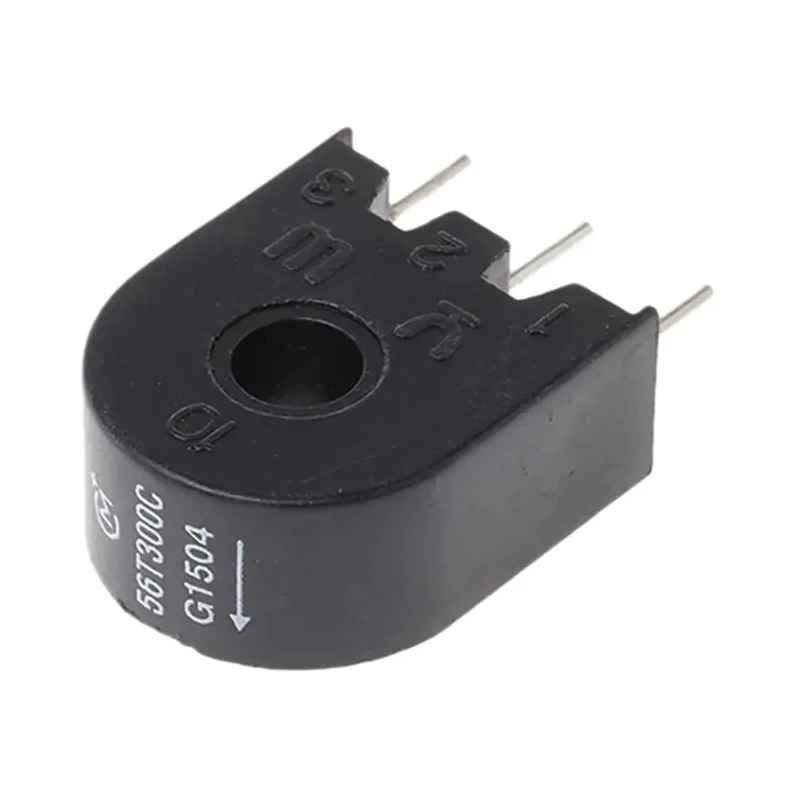

Murata Power Solutions 5600 Series Current Transformer 10 A 56T300C

Murata Power Solutions 56T300C Current Transformer 10 A from the 5600 series is designed for precise measurement and monitoring of AC currents in industrial and electronic applications. This current transformer supports a primary current of 10 A and features a high-frequency operating range from 20 kHz to 200 kHz, making it suitable for switched-mode power supplies, motor control circuits, and electronic lighting ballasts.

The transformer is compact with a length of 16.79mm, width of 8.89mm, and depth of 20.19mm, facilitating easy integration into PCB assemblies with through hole mounting and wire terminals.

Its electrical characteristics include a primary DC resistance of 5.73Ω and secondary DC resistance of 8.59Ω, along with an inductance of 160 mH. The device is built to operate reliably in extreme temperature conditions from -40°C to 85°C, ensuring robustness in industrial environments.

Manufactured in China under recognized quality standards, this high-frequency current sense transformer provides dependable performance for industrial automation, power monitoring, and process control tasks.

Designed for monitoring AC currents up to 10 A. High operating frequencies from 20 kHz to 200 kHz. Through hole mountable with wire terminal connections. Compact and space-saving footprint with detailed dimensions. Wide operating temperature range for harsh environments.

Electrical specifications including primary and secondary resistances and inductance. Ideal for use in switched-mode power supplies and motor control applications. Quality manufactured product with country of origin China.
