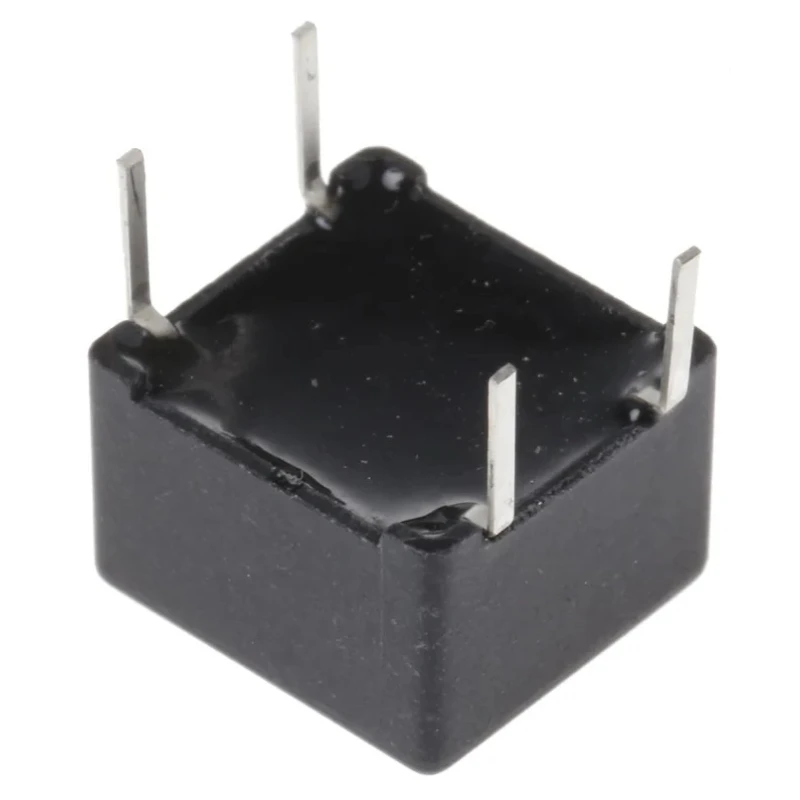

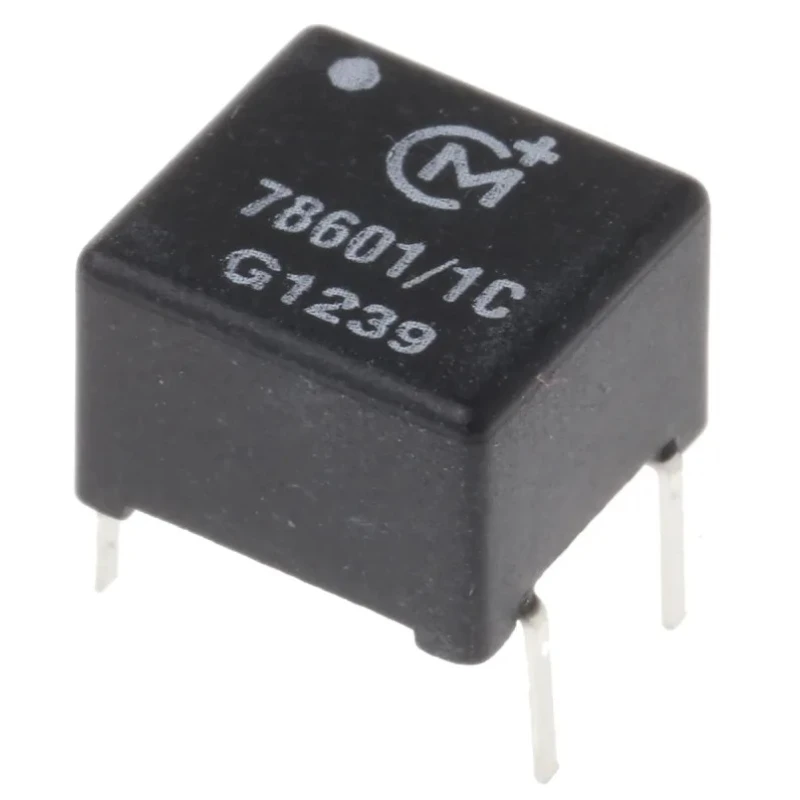

Murata Power Solutions Through Hole Pulse Transformer 3:71 Turns Ratio, 2000μH Primary Inductance, 0.6Ω Primary 78601/1C

Murata Power Solutions 78601/1C Through Hole Pulse Transformer is engineered for industrial, electronic, and power supply applications requiring precise signal coupling and voltage transformation. Featuring a primary inductance of 2000μH and a primary DC resistance of 0.6Ω, this transformer ensures efficient energy transfer with minimal loss.

Designed for through-hole mounting, it offers a compact size of 9.52mm length, 9mm width, and 6.35mm depth, with a lightweight package weighing just 1.1 grams. Equipped with 6 pins and an isolation voltage of 1kV, it meets stringent electrical safety and insulation standards.

The transformer’s 3:71 turns ratio makes it suitable for thyristor and triac firing circuits, as well as small sized switch mode power supply applications. Its low leakage inductance of 0.47μH contributes to maintaining signal integrity in filtering and pulse circuits.

This component operates reliably within a temperature range of 0°C to 70°C, ensuring stable performance in varied industrial and commercial environments. Additionally, it complies with RoHS standards, underscoring its environmentally friendly design.

Common uses include coupling transformers in electronic control circuits, filter circuits as a common mode choke, and precise switching applications. The standard turns ratios can be adapted by series connections of windings, providing flexibility for custom circuit designs.

General purpose design suitable for coupling and small switch mode power supplies. Turns ratio of 3:71 enables tailored voltage transformation. Leakage inductance of 0.47μH ensures minimal signal loss. Compact dimensions measuring 9.52mm length by 9mm width and 6.35mm depth.

Operating temperature range from 0°C to 70°C for diverse environments. Through hole mount type with 6 pins for secure PCB installation. Isolation voltage rating of 1kV provides robust electrical insulation. RoHS compliant for environmental and safety standards.

Lightweight construction weighing only 1.1g. Manufactured in China assuring consistent quality control. Explore more electronic components and precise transformers on EnvMart for your industrial, laboratory, and manufacturing needs.
