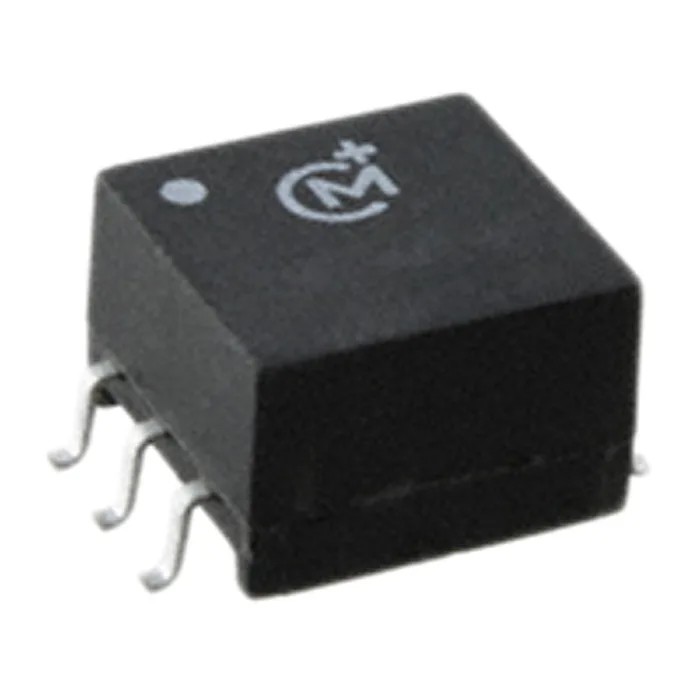

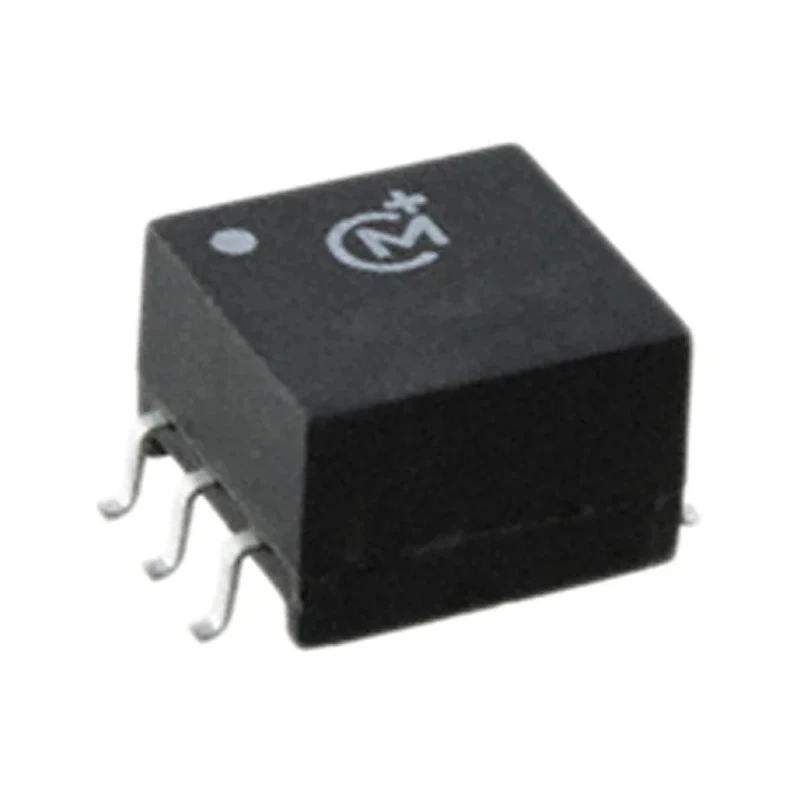

Murata Power Solutions Surface Mount Pulse Transformer 1:1:1 Turns Ratio, 10000 μH Primary Inductance, 1.8Ω 78602/9JC

Murata Power Solutions 78602/9JC surface mount pulse transformer is engineered for industrial and electronic applications requiring precise signal isolation and coupling. Featuring a standard 1:1:1 turns ratio, it ensures balanced signal transformation suitable for thyristor/triac firing circuits and small switching power supplies. The device’s primary inductance of 10000 μH and low primary DC resistance of 1.8 Ω optimize energy transfer efficiency and minimize losses.

This pulse transformer uses surface mount technology, allowing seamless PCB integration with a compact footprint. It includes six pins and provides reliable solder termination. Its leakage inductance of 0.71 μH enhances signal quality by reducing parasitic effects.

The transformer operates effectively in environments with temperatures ranging from -40°C to +85°C, making it suitable for various industrial and commercial settings. Dimensions measure 9.52 mm in length, 9 mm in width, and 6.35 mm in depth, contributing to space-saving designs.

The 786 series transformer is RoHS-compliant and offers an isolation voltage of 1 kV ac, ensuring electrical safety and compliance with regulatory standards. The construction allows modification of standard turns ratios by series connection of windings and permits use as a common mode choke for filtering electromagnetic interference.

Ideal for use in industrial electronics, power supply modules, and control equipment, this Pulse Transformer enhances performance and reliability. Suitable applications include power supplies, signal coupling, and filtering in manufacturing and electronic assembly.

Provides 10000 μH primary inductance for efficient signal coupling. Low 1.8Ω primary DC resistance minimizes power losses. Surface mount design supports compact and automated PCB assembly. Leakage inductance of 0.71 μH maintains signal integrity.

Wide operating temperature range from -40°C to 85°C for industrial use. Compact size with 9.52 mm length, 9 mm width, and 6.35 mm depth. 6 pins with solder termination for secure connections. RoHS compliant construction ensures environmental safety.

Isolation voltage rating of 1 kV ac for electrical safety. Versatile use in thyristor/triac firing and switch mode power supply applications. Explore a wide range of transformers and electronic components at EnvMart for industrial and electronic manufacturing needs.
