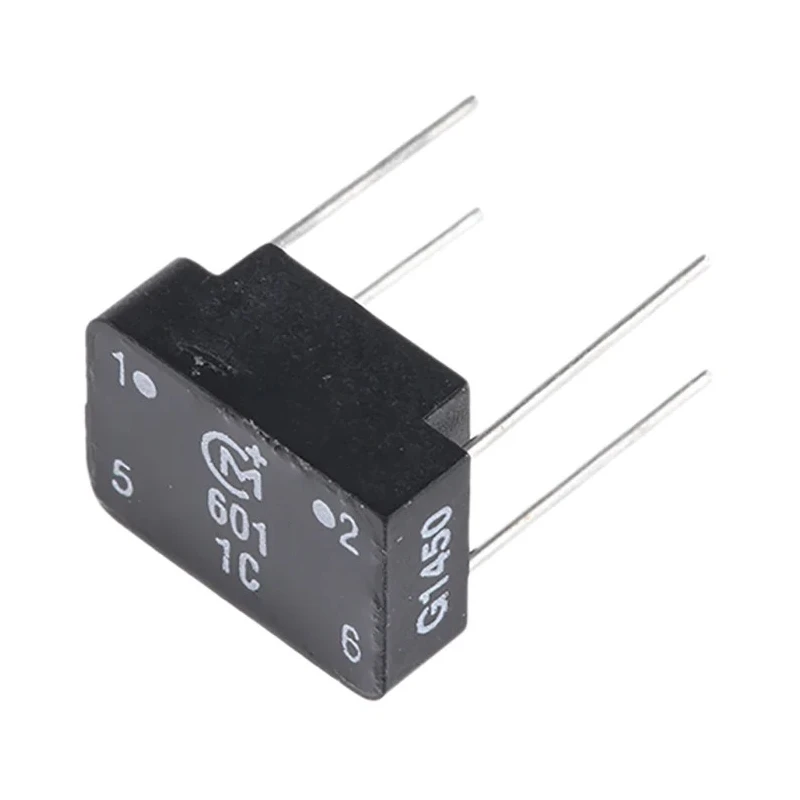

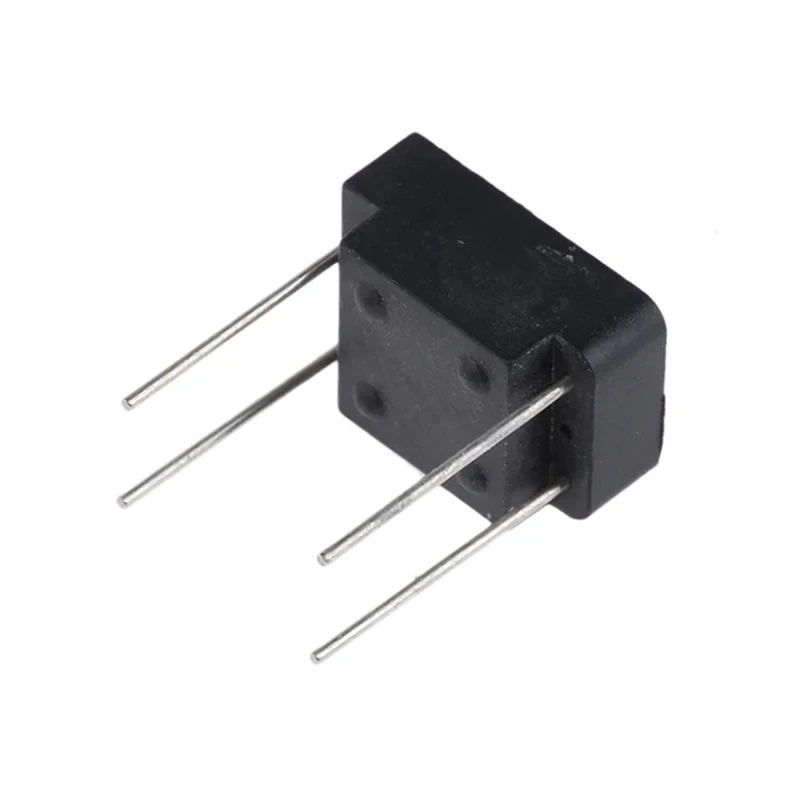

Murata Power Solutions Through Hole Pulse Transformer 1:1 Turns Ratio, 1916 μH Primary Inductance, 1.5 Ω Primary 76601/1C

Murata Power Solutions 76601/1C Through Hole Pulse Transformer is engineered for coupling and insulation applications in electronic power supplies and signal circuits. Featuring a 1:1 turns ratio, it delivers primary inductance of 1916 μH and primary DC resistance of 1.5 Ω, ensuring stable and efficient operation.

This pulse transformer is designed with a through-hole mount, providing a robust connection on printed circuit boards. Its compact size - 12.7 mm in length, 8.89 mm width, and 6.35 mm depth - makes it ideal for space-constrained designs. The device includes 6 pins to facilitate reliable electrical interfacing.

Its low leakage inductance of 0.6 μH helps minimize signal degradation, making it suitable for high-fidelity applications. The transformer is rated for isolation voltage up to 500 Vrms, ensuring safety in power isolation scenarios.

Operating temperature range from 0°C to 70°C guarantees consistent performance under normal environmental conditions. Additionally, the product is RoHS certified, indicating compliance with environmental standards.

Suitable for industrial, laboratory, telecommunications, and power supply applications, the Murata 76601/1C Pulse Transformer offers durable and precise performance for electronic design engineers.

Through-hole mount for solid PCB integration. 1:1 turns ratio with 1916 μH primary inductance. Low primary DC resistance of 1.5 Ω for minimal power loss. Compact dimensions and lightweight construction. Leakage inductance of 0.6 μH reduces electromagnetic interference.

Operating temperature range 0°C to 70°C for industrial environments. Isolation voltage rating of 500 Vrms for safety. Compliant with RoHS environmental standards. Discover more electronic transformers and components at EnvMart for your power supply and signal coupling needs.
