OEP Through Hole Pulse Transformer 1:1 Turns Ratio, 4.15h Primary Inductance, 65Ω Primary Resistance OEP1200

Free Delivery in India | Lowest Global Shipping Charges

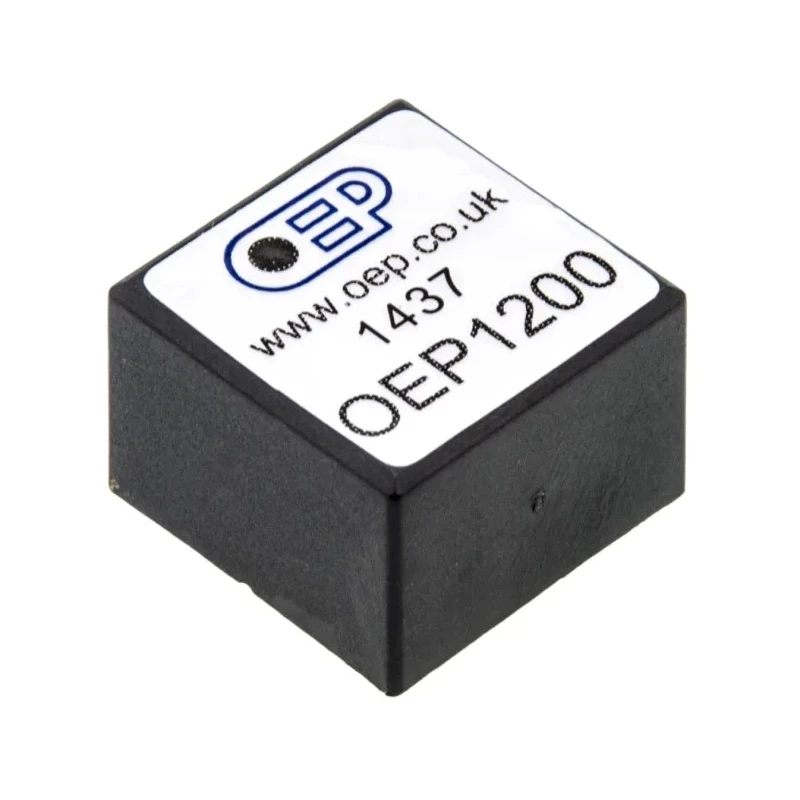

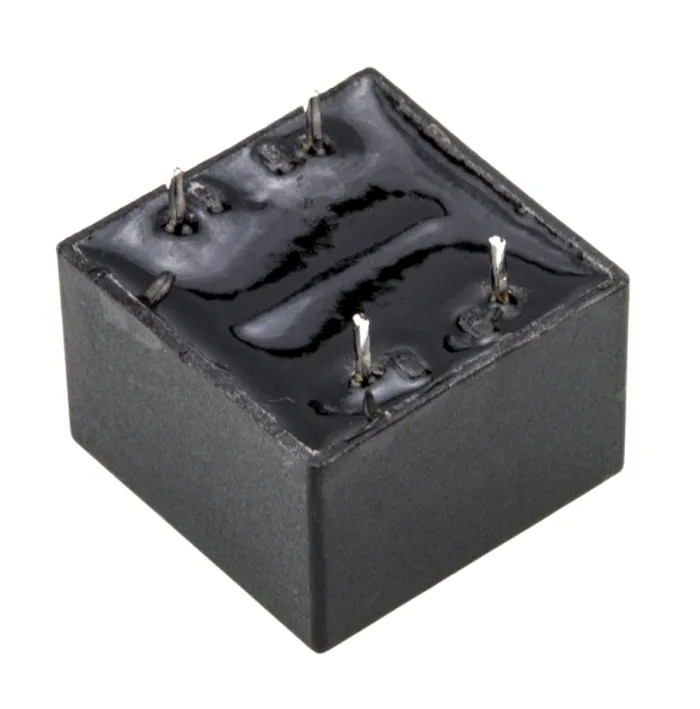

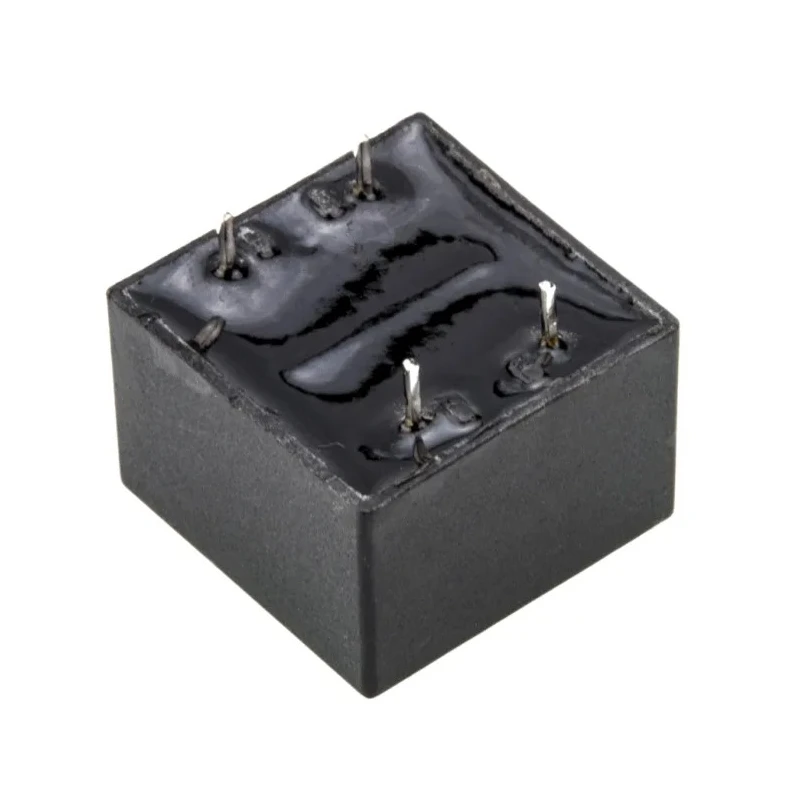

OEP Through Hole Pulse Transformer 1:1 Turns Ratio, 4.15h Primary Inductance, 65Ω Primary Resistance OEP1200



Category Pulse Transformer Brand OEP Condition New

Specifications

Country of Origin	China
Brand	OEP
Length	18mm
Model	OEP1200
Depth	12.5mm
Width	18mm
Mount Type	Through Hole
Maximum Operating Temperature	70°C
Minimum Operating Temperature	0°C
Standards/Approvals	BS6305, BABT CR/0126, EN41003, EN60950
Isolation Voltage	5kV
Insertion Loss	1.3dB
Minimum Operating Frequency	300Hz
Maximum Operating Frequency	4kHz
Primary Inductance	4.15h
Turns Ratio	1:1
Primary DC Resistance	65Ω
Turns Ratio 1	1
Leakage Inductance	20mH
OEP Through Hole Pulse Transformer 1	1 Turns Ratio, 68Ω Prim. ResistanceBrand: OEP

Key Features

Features a primary DC resistance of 65 ohms for efficient power handling.
Constructed with resin encapsulation in a glass-filled nylon box for flame retardancy.
Suitable for telecommunications circuits meeting BS6305 standards.
Operating temperature range from 0°C to 70°C ensures reliable performance in diverse conditions.
Maximum operating frequency of 4 kHz with a minimum frequency of 300 Hz.
Compact dimensions of 18mm length, 18mm width, and 12.5mm depth for easy PCB integration.
High isolation voltage rating of 5 kV for safety and reliability.
Leakage inductance of 20 mH optimizes signal integrity.

Product Description

OEP OEP1200 through hole pulse transformer is designed for line isolation and data transmission applications. With a 1:1 turns ratio and 4.15h primary inductance, it offers efficient signal isolation and power handling.

The transformer is constructed using resin encapsulation inside a glass-filled nylon enclosure, providing flame retardant properties to UL94-V0 standards. It is certified for use in telecommunications circuits that require compliance with standards such as BS6305, BABT CR/0126, EN41003, and EN60950.

Its compact size with 18mm length, 18mm width, and 12.5mm depth allows easy integration on PCBs using through hole mounting. Rated for operation from 0°C to 70°C, it supports frequencies between 300 Hz and 4 kHz, suitable for line isolation tasks.

This Pulse Transformer features primary and secondary DC resistance of 65 ohms each, an insertion loss of 1.3 dB, and a leakage inductance of 20 mH to optimize signal fidelity. The isolation voltage of 5 kV ensures electrical safety during operation.

Primary inductance of 4.15h enables effective isolation performance. Resin encapsulated, glass-filled nylon case for durability and flame retardance. Complies with multiple international standards for safety and reliability.

Compact footprint enables space-efficient PCB layout with through hole mount. Operational temperature and frequency range ideal for telecommunication and industrial circuits. High isolation voltage rating enhances safety and application versatility.

This transformer is ideal for industrial, telecommunications, power supply, and data transmission applications requiring high reliability and safety. Explore the Electronics & Electricals category on EnvMart for more specialized transformers and related components.
