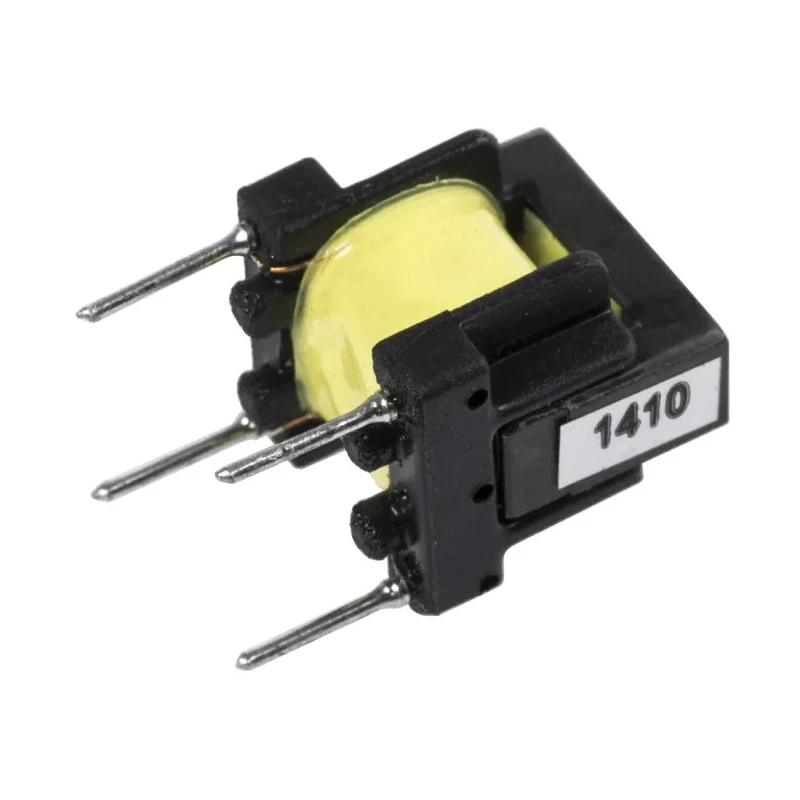

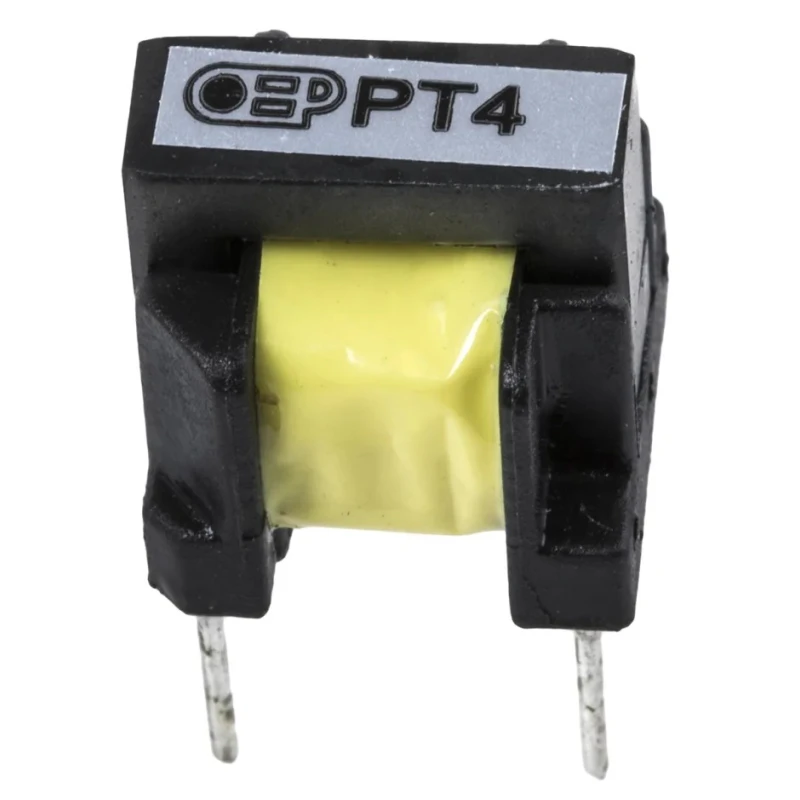

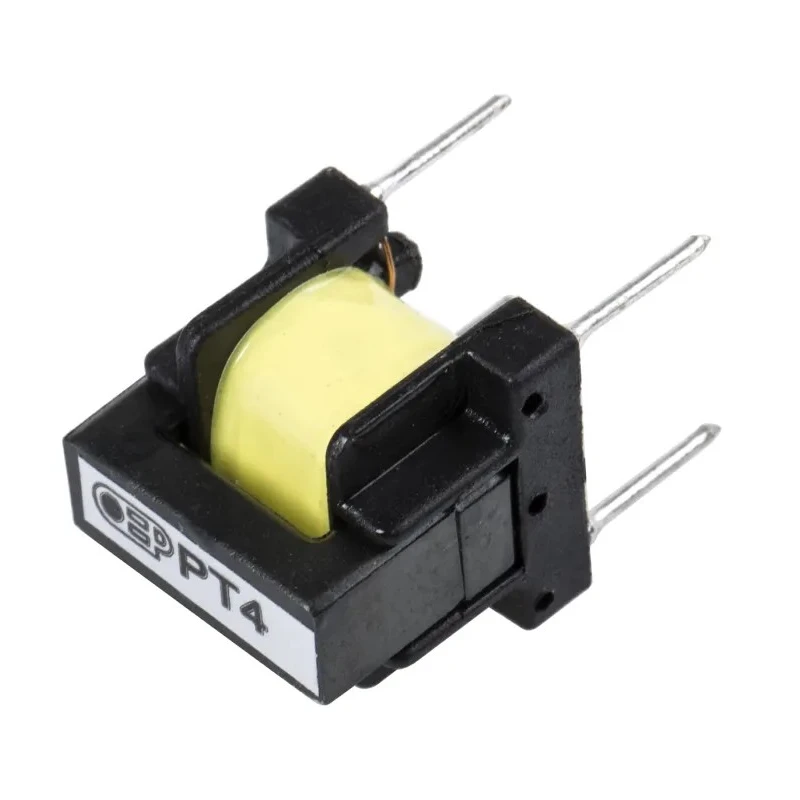

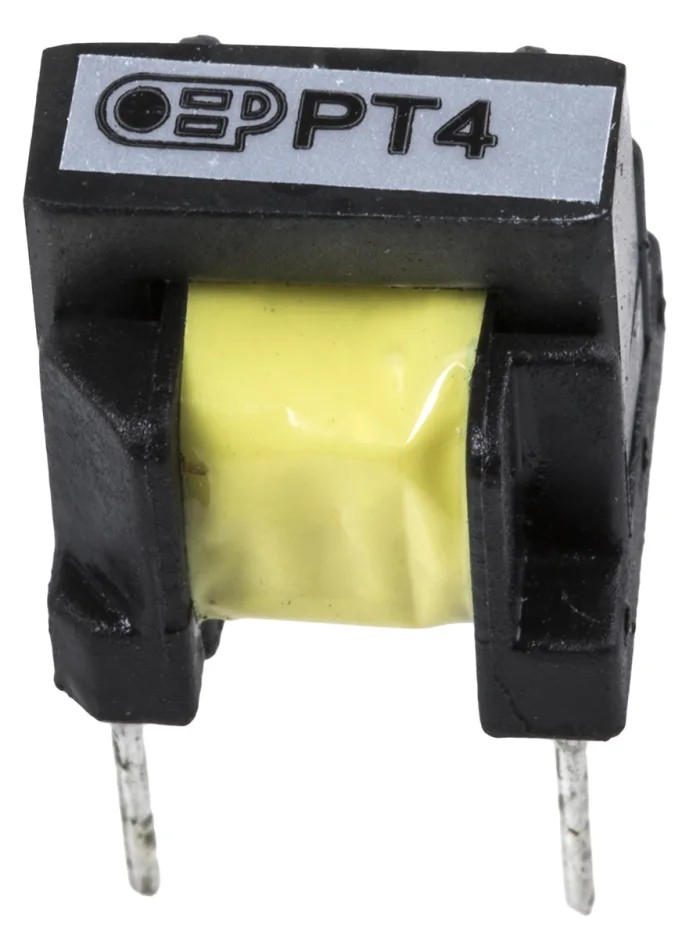

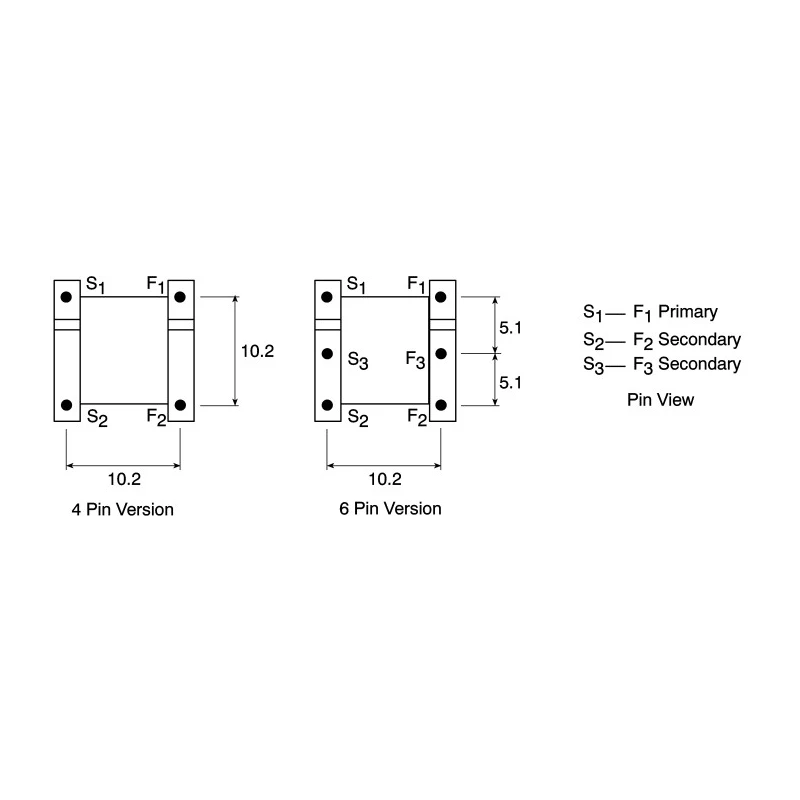

OEP Through Hole Pulse Transformer 1:1 Turns Ratio, 19 μH Primary Inductance, 1.1Ω Primary Resistance PT4

Free Delivery in India | Lowest Global Shipping Charges

OEP Through Hole Pulse Transformer 1:1 Turns Ratio, 19 μH Primary Inductance, 1.1Ω Primary Resistance PT4



Category Pulse Transformer Brand OEP Condition New

Specifications

Country of Origin	China
Brand	OEP
Length	13mm
Model	PT4
Depth	15mm
Width	13mm
Mount Type	Through Hole
Minimum Operating Frequency	3kHz
Maximum Operating Frequency	1MHz
Primary Inductance	19μH
Turns Ratio	1:1
Primary DC Resistance	1.1Ω
Secondary DC Resistance	0.9Ω
Leakage Inductance	19μH
OEP Through Hole Pulse Transformer 1	1 Turns Ratio, 3 mH Prim. Inductance, 1.1Ω Prim. ResistanceBrand: OEP

Key Features

Primary inductance is precisely 19 microhenries for consistent signal performance.
Primary DC resistance rated at 1.1 ohms to ensure efficient current flow.
Secondary DC resistance measures 0.9 ohms, supporting stable output.
Operational frequency range spans from 3 kHz minimum to 1 MHz maximum for versatile use.
Compact through hole mount design with dimensions 13mm x 13mm x 15mm (LxWxD).
Leakage inductance matches primary inductance at 19 microhenries to minimize signal loss.
Ideal for applications in thyristor and triac control systems requiring electrical isolation.
Constructed in China with quality standards for durability and performance.

Product Description

OEP PT4 Through Hole Pulse Transformer is a high-frequency pulse transformer designed for use in electronic circuits requiring electrical isolation between firing circuits and loads. Featuring a 1:1 turns ratio with a primary inductance of 19 μH and primary DC resistance of 1.1Ω, it is optimized for wide-band pulse applications including thyristor and triac control systems.

This through hole mounted transformer exhibits a small form factor with dimensions of 13mm length, 13mm width, and 15mm depth, making it suitable for printed circuit boards in electronic power supplies and controller assemblies.

The device operates effectively across a frequency range of 3 kHz minimum up to a maximum of 1 MHz, ensuring reliable performance in pulsed power conversion and signal processing environments. The matching leakage inductance of 19 μH helps maintain signal integrity by reducing energy dissipation.

With a secondary DC resistance of 0.9Ω and no specific certifications required, this pulse transformer is constructed to meet general electronic component specifications accommodating industrial and commercial electronics applications.

Primary inductance accurately set at 19 μH for desired pulse shaping. Primary resistance of 1.1Ω ensures controlled current flow and minimal power loss. Supports frequency operations from 3 kHz up to 1 MHz for flexible application.

Compact through hole mount size (13mm x 13mm x 15mm) suitable for PCB integration. Leakage inductance mirrors primary inductance to reduce interference. Robust design optimized for thyristor, triac control, and other pulse power systems.

Manufactured in China maintaining industry-standard quality.

This pulse transformer is ideal for use in industrial electronics, power supply modules, signal isolation, and electronic control systems in manufacturing and laboratory environments. Browse more top-quality Pulse Transformers from leading brands and enhance your electronic designs with reliable components available on EnvMart.
