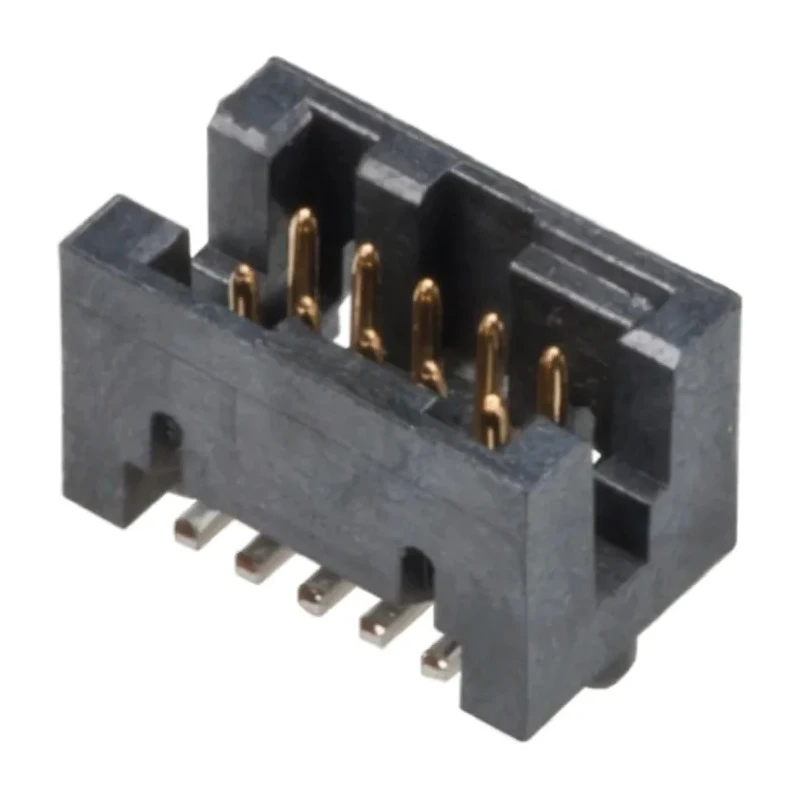

Amphenol Communications Solutions Rib-Cage Series Straight Surface PCB Header, 10 Contacts, 1.27 mm Pitch, 2 87409-105LF

Amphenol Communications Solutions 87409-105LF PCB Header from the Rib-Cage Series is a high-quality straight surface mount connector designed for board-to-board applications. Featuring 10 male contacts organized in 2 rows with a 1.27 mm pitch, this header is ideal for establishing reliable mezzanine connections between printed circuit boards or flexible printed circuits.

The housing is made of Liquid Crystal Polymer, which offers excellent durability and performance under extreme environmental conditions. Contacts are made from phosphor bronze and plated with 0.76 μm gold on contact surfaces to ensure optimum conductivity and corrosion resistance. The solder termination type facilitates secure surface mounting on PCBs.

This connector supports a maximum operating voltage of 800V and a current rating of 1A. It is engineered to operate reliably within a temperature range from -55°C to 130°C, making it suitable for use in industrial, electronic, and communication equipment applications where thermal stability is critical.

The design includes an above board height of 5.74 mm, resulting in a mating height of 6.45 mm when paired with the appropriate receptacle header (stock number 714-2451). The shrouded male contact configuration helps prevent misalignment during mating.

Durable Liquid Crystal Polymer housing material. Phosphor Bronze contacts with gold plating for enhanced performance. Designed for surface mount board-to-board connection. Supports 800V voltage and 1A current rating. Wide operating temperature range from -55°C to 130°C.

Compact two-row, 10-contact configuration with 1.27 mm pitch. Shrouded connector for secure mating and alignment. Manufactured in China maintaining consistent quality. Ideal for mezzanine connections between PCBs and FPCs.

No listed industry certifications or approval standards.

This Rib-Cage Series PCB header is well suited for applications in industrial electronics, telecommunications hardware, and other electronic device manufacturing. Its precise pitch and reliable materials make it a dependable choice for electronic assembling and prototyping environments.
