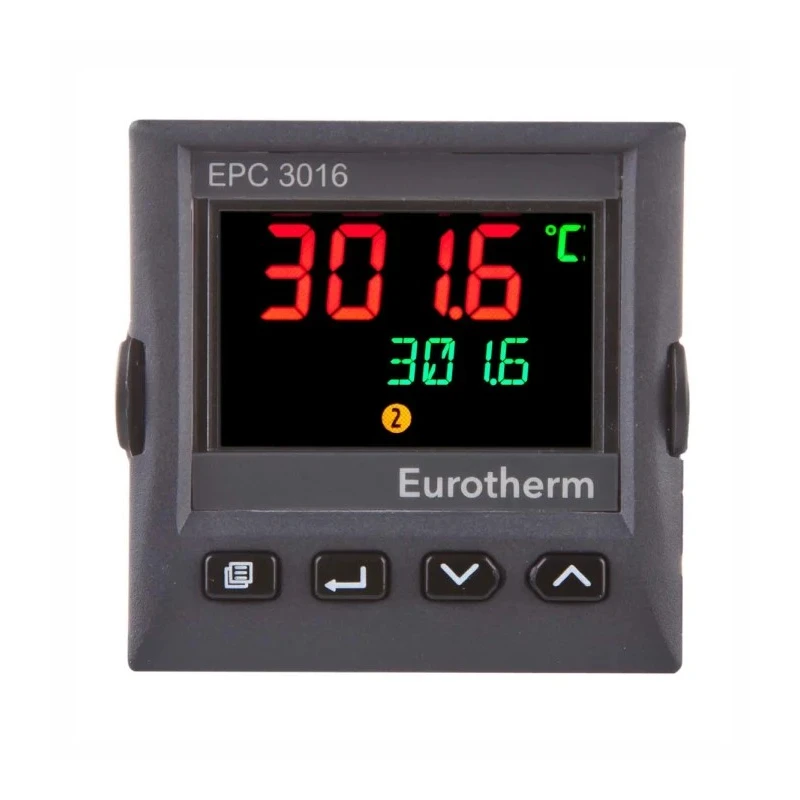

Eurotherm Panel Mount PID Controller with 2 Inputs and 3 Outputs, Triac, Logic I/O, Form C Relay, Form A Output EPC3016

Eurotherm EPC3016 is a high-performance panel mount PID controller designed for precise temperature regulation across various industrial processes. With 2 universal inputs capable of accepting thermocouples, RTDs, pyrometers, and analogue signals, it offers versatility in measurement. The controller provides 3 configurable outputs including triac, logic I/O, form C and form A relays, and DC analogue outputs, enabling integration with multiple control schemes.

Operating at a maximum supply voltage of 230V AC and supporting peak voltages up to 264V, the device withstands demanding electrical environments. It is built to endure temperatures between 0°C and 55°C and complies with an IP65 rating ensuring protection against dust and water ingress on the front panel.

The front interface includes a high visibility LCD with backlighting that delivers clear natural language status and alarm notifications in three colors, enhancing user operation and monitoring. It supports advanced communication protocols such as Ethernet/IP, Modbus RTU, BACnet, and offers optional Ethernet Modbus TCP connectivity for integration into industrial networks.

This temperature controller features cybersecurity communication robustness, precise 0.1% universal inputs with a 50ms sample rate, and a fast PID response minimizing overshoot and oscillations. Additional functions include energy measurement, diagnostics, user programmable function blocks for math, logic, totalizing, and quick code setup via application templates.

Installation is convenient with panel mount design, compact dimensions of 101mm length, 96mm width, and 90mm panel depth, with screw terminal connections. The controller is RoHS, REACH, UL, CE and Factory Mutual (FM) certified along with multiple global standards compliance.

The controller supports 2 inputs including universal types such as thermocouples and RTDs. There are 3 outputs including triac, logic I/O, form C relay, form A relay, and DC analogue output options. Max current rating is 2A with IP65 rated front panel for protection.

It features a high visibility LCD with backlight for clear readings. Supports digital communications with Ethernet/IP, Modbus RTU, BACnet, and Ethernet Modbus TCP protocols. Operating temperature range is from 0°C to 55°C, suitable for harsh industrial environments.

Designed for panel mount installation with dimensions 101mm (L) x 96mm (W) x 90mm (Depth). Includes energy measurement, diagnostics, and cybersecurity features for robust control. Extensive international approvals including UL, RoHS, REACH, cUL, CE, and Factory Mutual (FM).

This controller is ideally suited for industrial process control applications in manufacturing, laboratory automation, HVAC control, and energy management systems. The combination of advanced measurement performance, flexible outputs, and strong cybersecurity measures provide an efficient and reliable temperature control solution.
