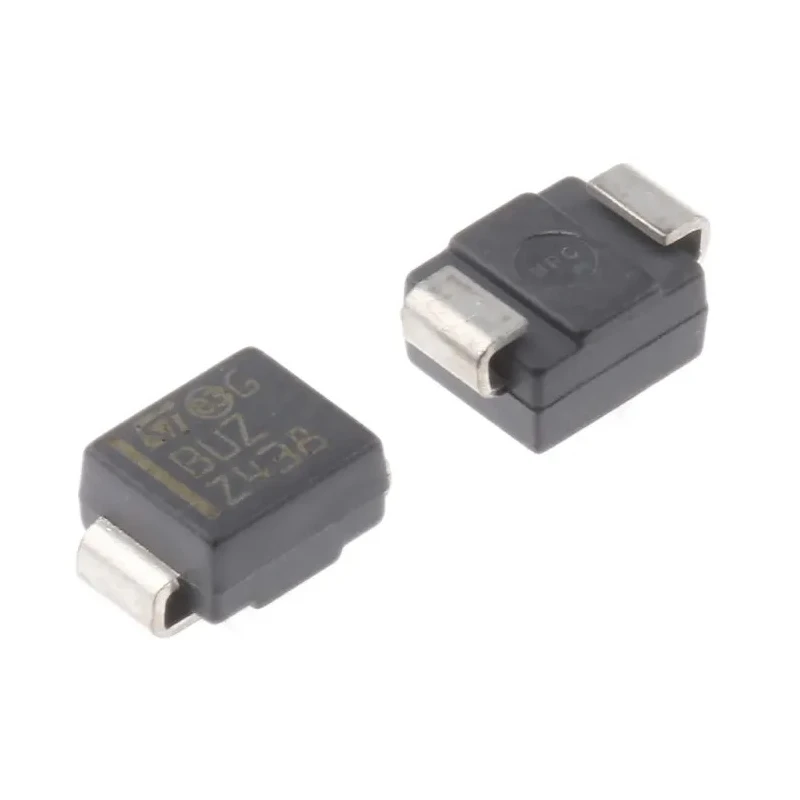

STMicroelectronics 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin DO-214 SMBJ5.0A-TR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin DO-214 SMBJ5.0A-TR

Name: STMicroelectronics 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin DO-214 SMBJ5.0A-TR
Brand: STMicroelectronics
SKU: 219301
Price: 0.19 USD
Availability: InStock



Category TVS Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	4.6mm
Model	SMBJ5.0A-TR
Width	3.95mm
Mount Type	Surface
Series	SMBJ
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	13.4V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	6.4V
Maximum Reverse Stand-off Voltage Vwm	5V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	10mA
Maximum Peak Pulse Current Ippm	298A
Maximum Reverse Leakage Current	20μA

Key Features

Uni-directional diode configuration ensures reliable voltage clamping.
Peak pulse power rating of 600 W for effective surge protection.
Low clamping voltage of 13.4 V protects sensitive electronics.
Compact 2.45mm height, 4.6mm length, and 3.95mm width DO-214 surface mount package.
Wide operating temperature range from -55°C to 150°C for harsh environments.
Maximum reverse stand-off voltage of 5 V with minimum breakdown voltage of 6.4 V.
High peak pulse current capacity of 298 A for transient surges.
Maximum reverse leakage current of 20μA ensures low standby power consumption.

Product Description

STMicroelectronics SMBJ5.0A-TR is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed to protect electronic circuits from voltage spikes and transient surges. Rated at 600 W peak pulse power dissipation, it features a 2-pin surface mount DO-214 package sized at 4.6 mm length, 3.95 mm width, and 2.45 mm height, making it suitable for compact electronic assemblies.

Operating over a temperature range from -55°C to 150°C, this diode ensures reliable performance in harsh environments typical of industrial, automotive, and electronic manufacturing sectors. The device provides a maximum reverse stand-off voltage of 5 V and a minimum breakdown voltage of 6.4 V, with a clamp voltage of 13.4 V during transient surges, protecting sensitive components from damage.

The high peak pulse current capability of 298 A and low maximum reverse leakage current at 20 μA contribute to efficient voltage suppression and minimal power loss during standby. The single element quartz technology facilitates precise and quick response for fast transient mitigation, enhancing durability and system reliability.

Uni-directional diode configuration for directional transient voltage suppression. High peak pulse power dissipation of 600 W supports robust surge handling. Compact surface mount DO-214 package for easy PCB integration.

Wide temperature operating range accommodates demanding industrial applications. Low leakage current reduces energy consumption and increases efficiency. High peak pulse current rating ensures protection against large transient surges.

Single element design providing consistent and reliable performance.

This TVS Diode is ideal for applications in industrial automation, power supplies, telecommunications, and automotive electronics where sensitive components require protection from electrostatic discharge and transient voltage spikes.

Explore more Transient Voltage Suppressors and semiconductor components at EnvMart’s comprehensive electronics category for reliable and certified industrial products.
