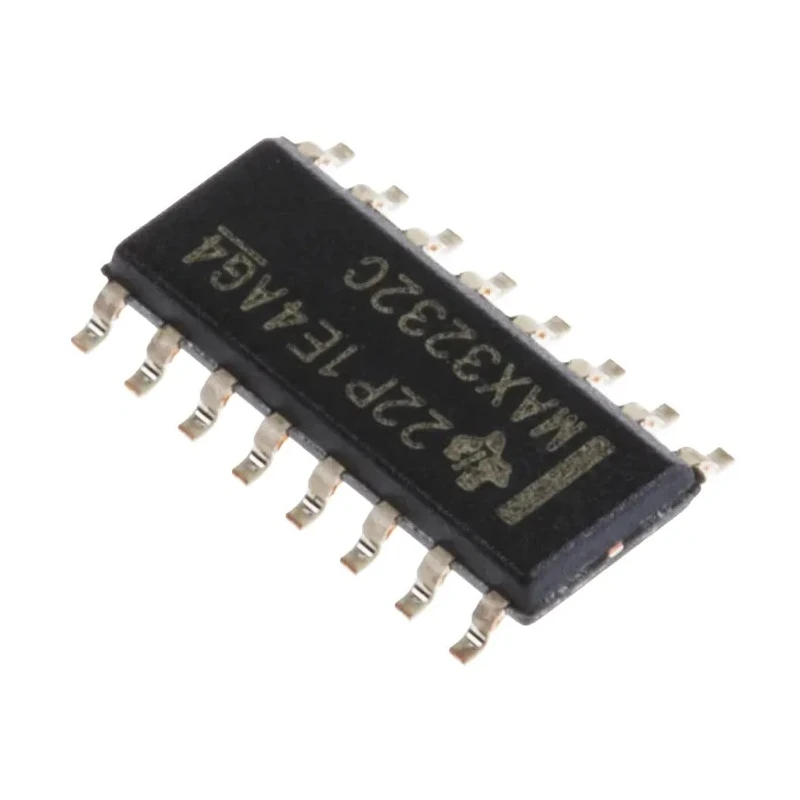

Texas Instruments 2-Channel RS-232 Line Transceiver, 16-Pin SOIC MAX3232CDR

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 2-Channel RS-232 Line Transceiver, 16-Pin SOIC MAX3232CDR

Name: Texas Instruments 2-Channel RS-232 Line Transceiver, 16-Pin SOIC MAX3232CDR
Brand: Texas Instruments
SKU: 202585
Price: 2.91 USD
Availability: InStock



Category Line Interface IC Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.75mm
Length	10mm
Model	MAX3232CDR
Width	4mm
Mount Type	Surface
Series	MAX3232
Input Type	Single Ended
Maximum Operating Temperature	70°C
Package Type	SOIC
Minimum Operating Temperature	0°C
IC Type	Dual Channel Transceiver
Number Of Channels	2
Pin Count	16
Maximum Supply Voltage	5.5V
Logic Function	Driver & Receiver
Minimum Supply Voltage	3V
Maximum High Level Output Current	-1mA
Maximum Propagation Delay Time @ CL	300ns
Supply Current	1mA
Maximum Low Level Output Current	1.6mA

Key Features

Dual channel transceiver offering two line drivers and two line receivers.
Operates from a single 3 V to 5.5 V supply voltage with integrated charge pump.
Maximum propagation delay of 300 ns supports fast communication speeds.
Compliant with TIA/EIA-232-F and ITU V.28 RS-232 standards.
Enhanced ESD protection up to ±15 kV (Human-Body Model).
Compact 16-Pin SOIC surface mount package with dimensions 10 mm x 4 mm x 1.75 mm.
Wide operating temperature range of 0°C to 70°C for reliable commercial use.
Low supply current consumption of 1 mA for energy-efficient operation.

Product Description

Texas Instruments MAX3232CDR is a high-performance 2-channel RS-232 line transceiver provided in a 16-Pin SOIC surface mount package. This dual channel device consists of two line drivers and two line receivers designed to meet the TIA/EIA-232-F and ITU V.28 standards for serial communication interfaces.

The device operates efficiently from a single power supply ranging from 3 V to 5.5 V and incorporates internal charge pump circuitry to provide the necessary voltage levels required for RS-232 compliance. The MAX3232CDR offers robust electrostatic discharge protection of up to ±15 kV human body model and ensures reliable signal integrity in noisy industrial or commercial environments.

Critical technical specifications include a maximum propagation delay of 300 ns, permitting data transmission speeds up to 1 Mbps. The transceiver maintains low power consumption with a supply current of only 1 mA, making it suitable for battery-operated and low-power embedded applications.

Its compact dimensions (length 10 mm, width 4 mm, and height 1.75 mm) and standard SOIC package facilitate easy surface mount assembly on printed circuit boards. The operating temperature range from 0°C to 70°C allows usage in typical commercial and industrial environments.

This transceiver is designed for versatile applications including industrial automation, communication equipment, data acquisition systems, and embedded serial communication interfaces.

Dual channel line drivers and receivers ensure full RS-232 signal interface. Wide voltage supply range reduces the need for multiple power rails. High-level ESD protection for enhanced device durability in harsh environments.

Fast propagation delay supporting high-speed data communications. Low supply current ideal for portable and embedded device designs. Compact SOIC package simplifies PCB layout and assembly. Explore more semiconductor and interface IC products in the Electronics & Electricals category at EnvMart to find components that meet your design and manufacturing requirements.

Explore more products in our Line Interface IC category.
