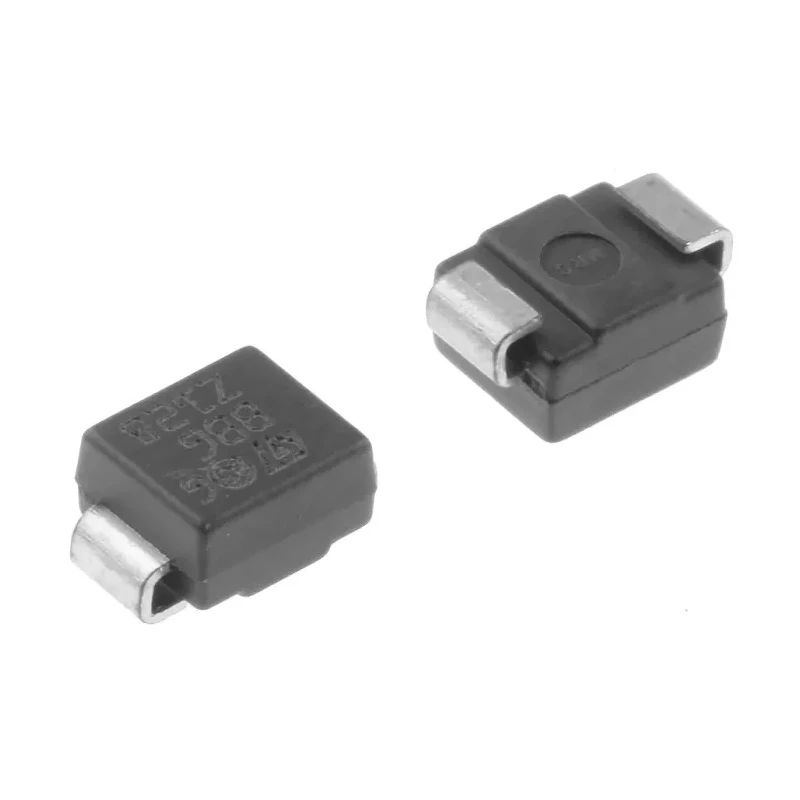

STMicroelectronics 1-Element Bi-Directional TVS Diode 600W 2-Pin DO-214 SMBJ15CA-TR

STMicroelectronics SMBJ15CA-TR 1-Element Bi-Directional TVS Diode with 600W peak pulse power dissipation is a robust device engineered to safeguard sensitive electronics from transient voltage surges. Featuring a single diode in a 2-pin DO-214 surface mount package, it provides bi-directional protection suitable for circuits exposed to both positive and negative voltage spikes.

The diode offers a minimum breakdown voltage of 16.7V and a maximum reverse stand-off voltage of 15V, enabling effective suppression of transient overvoltages. Its clamping voltage of 32.5V ensures rapid response to electrical surges, protecting downstream components during transient events.

Designed for reliability, this TVS diode operates efficiently over a wide temperature range from -55°C up to 150°C, making it suitable for harsh industrial, automotive, and consumer electronics environments. Peak pulse current capacity of 123A and a maximum leakage current of only 200nA guarantee both high surge handling capability and low standby losses.

The compact DO-214 package dimensions (4.6mm length x 3.95mm width x 2.45mm height) enable space-saving PCB layouts, essential for modern electronic designs. As part of the SMBJ series, this device is widely adopted for transient voltage suppression applications including power supplies, data lines, and signal lines in industrial machinery, automotive electronics, and telecommunications equipment.

Single diode configuration ensures reliable transient voltage suppression. Bi-directional design protects circuits against positive and negative voltage spikes. Peak pulse power dissipation of 600W handles high energy transient surges.

Clamping voltage of 32.5V provides effective voltage suppression. Compact DO-214 surface mount package for easy assembly and space efficiency. Wide operating temperature range from -55°C to 150°C for versatility. High peak pulse current rating of 123A to protect against severe transients.

Low reverse leakage current minimizes power loss during normal operation. Suitable for industrial, automotive, telecommunications, and consumer electronics applications. Ensures protection and longevity of sensitive semiconductor components.

Explore the STMicroelectronics range of TVS Diodes and other discrete semiconductors to find solutions tailored to your circuit protection needs on EnvMart.
