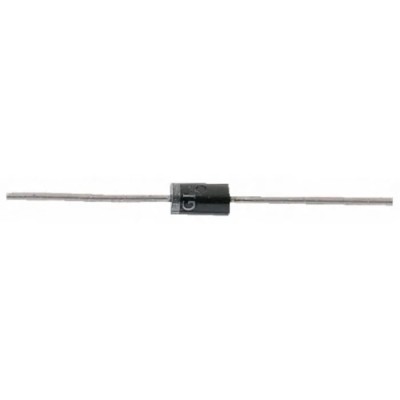

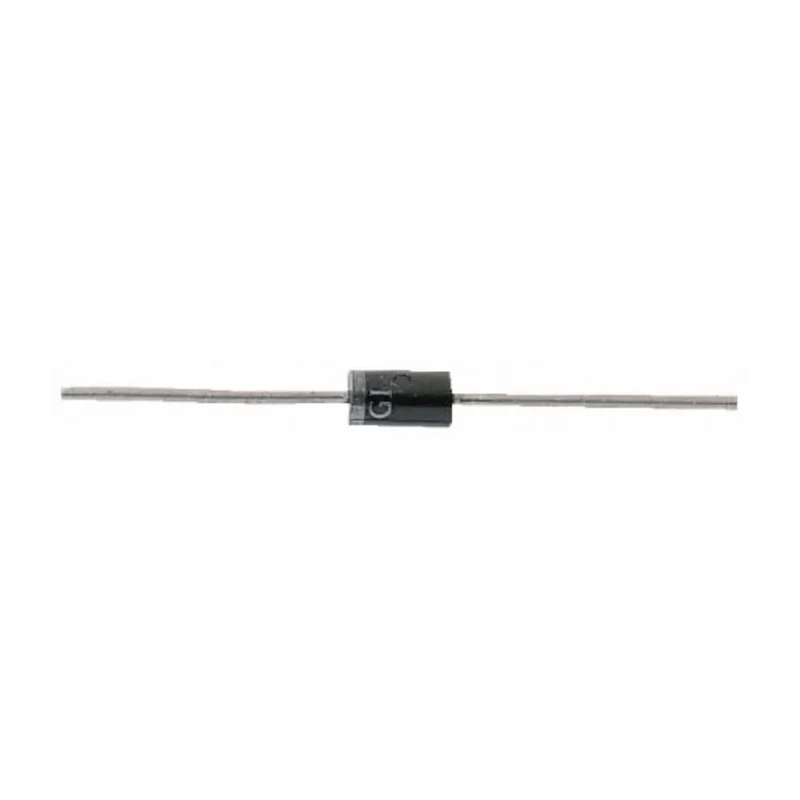

STMicroelectronics 1-Element Bi-Directional TVS Diode 400 W, 2-Pin DO-15 BZW04-48B
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.53mm |
| Brand | STMicroelectronics |
| Height | 3.53mm |
| Length | 6.75mm |
| Model | BZW04-48B |
| Width | 3.53mm |
| Mount Type | Through Hole |
| Series | BZW04 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | UL Recognised |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 100V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 53.2V |
| Maximum Reverse Stand-off Voltage Vwm | 47.8V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 23A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This TVS diode offers a peak pulse power dissipation of 400 W for robust transient protection.
- It has a bi-directional diode configuration suitable for AC and DC voltage spikes.
- The product supports through hole mounting with a compact DO-15 package type.
- The diode has a minimum breakdown voltage (Vbr) of 53.2 V and maximum reverse stand-off voltage (Vwm) of 47.8 V.
- Clamping voltage (Vc) is rated at 100 V providing effective voltage clamping during transients.
- The device operates reliably between -65°C to 175°C ambient temperatures.
- Maximum peak pulse current (Ippm) rating is 23 A ensuring high surge current handling capability.
- It includes UL Recognised standards approval for quality assurance.
Product Description
STMicroelectronics BZW04-48B 1-Element Bi-Directional TVS Diode is engineered for protecting sensitive electronic components from voltage transients and surges. Featuring a peak pulse power dissipation of 400 W, it efficiently clamps voltage spikes in power supply lines or electronic circuits.
The diode's bi-directional configuration allows it to safeguard circuits against both positive and negative transient voltages, making it highly versatile for AC and DC applications. The device is housed in a durable 2-pin DO-15 package suitable for through hole mounting, offering ease of installation and mechanical stability.
Electrical characteristics include a minimum breakdown voltage of 53.2 V and a maximum reverse stand-off voltage of 47.8 V, ensuring tight clamping of undesired voltages to protect downstream components. The clamp voltage at 100 V ensures efficient suppression of voltage spikes.
Designed to operate reliably from -65°C to 175°C, this TVS diode is suitable for demanding industrial, electronic, and automotive environments where temperature extremes occur. With a maximum peak pulse current of 23 A and a very low leakage current of 1 μA, it guarantees high surge capability while maintaining low quiescent power consumption.
Structurally, the device measures 6.75 mm in length and 3.53 mm in height, width, and diameter, making it compact for circuit board footprint optimization. The component holds UL Recognised certification, a testament to its compliance and quality standards.
Peak pulse power dissipation of 400 W for transient suppression. Bi-directional diode suitable for AC/DC transient voltages. Through hole mounting with 2-pin DO-15 package. Minimum breakdown voltage of 53.2 V and reverse stand-off voltage of 47.8 V.
Clamping voltage rated at 100 V to protect circuits. Operational temperature range from -65°C to 175°C. Maximum peak pulse current of 23 A for surge currents. UL Recognised quality certification. Compact dimensions for PCB space efficiency.
Minimal leakage current of 1 μA enhancing reliability.
This TVS Diode is ideal for industrial electronics, power supply surge protection, telecommunications, and automotive electronics where voltage transient suppression is critical. Browse our extensive collection of semiconductor components for robust solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this TVS diode is 400 W, providing effective transient protection.
The minimum breakdown voltage (Vbr) of the BZW04-48B is 53.2 V.
The maximum reverse stand-off voltage (Vwm) for this model is 47.8 V.
The clamping voltage (Vc) is rated at 100 V, which helps in effective voltage clamping during transients.
The maximum peak pulse current (Ippm) rating for this diode is 23 A, allowing for high surge current handling capability.
This TVS diode operates reliably between -65°C and 175°C, making it suitable for extreme environments.
It supports through hole mounting, which facilitates easy installation.
The BZW04-48B measures 6.75 mm in length and has a diameter of 3.53 mm.
This model features a bi-directional diode configuration, suitable for both AC and DC voltage spikes.
The device holds UL Recognised certification, ensuring compliance with quality standards.
The maximum reverse leakage current for this diode is 1 μA, which enhances its reliability.
This diode has a single element configuration, as indicated by its specification.
