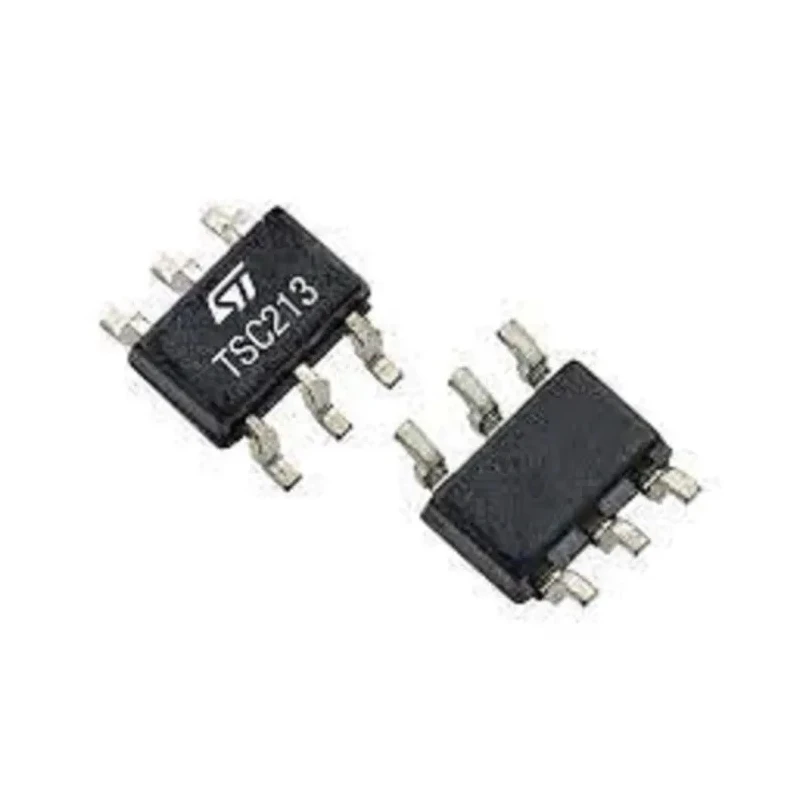

STMicroelectronics Current Sensing Amplifier Single Channel 6-Pin SC-70-6 TSC213IYCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | TSC213IYCT |
| Mount Type | Surface |
| Series | TSC213 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70-6 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 5mA |
| GBP - Gain Bandwidth Product | 100kHz |
| CMRR - Common Mode Rejection Ratio | 105dB |
Key Features
- Operates over a supply voltage range from 2.7V to 26V.
- Supports a wide common mode voltage range from -0.3V to 26V for versatile applications.
- Features low quiescent current consumption of 5mA for energy efficiency.
- High common mode rejection ratio (CMRR) of 105dB enhances measurement accuracy.
- Stable performance across operating temperatures from -40°C to 125°C.
- Compact size with dimensions of 2.2mm length and 1.1mm height supports space-constrained designs.
- Designed with zero-drift architecture for minimal gain error and offset drift.
- Meets automotive standard AEC-Q100 for reliability in automotive environments.
Product Description
STMicroelectronics TSC213IYCT is a precision current sensing amplifier featuring a single channel in a 6-pin SC-70-6 surface-mount package. It operates efficiently over a supply voltage range of 2.7V to 26V and offers a wide common mode voltage measurement range from -0.3V up to 26V irrespective of the supply voltage. This device employs a zero-drift architecture to minimize gain error, offset drift, and gain drift, delivering highly accurate current measurements essential in modern industrial and automotive systems.
With a low supply current of 5mA and a high common mode rejection ratio of 105dB, the TSC213IYCT ensures energy-efficient and stable operations even in noisy electrical environments. Its compact dimensions of 2.2mm by 1.1mm accommodate space-sensitive circuit designs. Functioning reliably across a broad temperature range from -40°C to 125°C and qualified to automotive standard AEC-Q100, this amplifier is suitable for demanding applications including telecommunications equipment and automotive current monitoring.
The STMicroelectronics TSC213 series amplifiers are optimized for sensing current via shunt resistors, supporting high precision in current measurement tasks. The SC-70-6 package facilitates easy surface mounting, improving production efficiency and integration.
Operates with supply voltages between 2.7V and 26V. Measures common mode voltages from -0.3V to 26V. Quiescent current of 5mA minimizes power consumption. 105dB common mode rejection ratio enhances signal quality. Compact surface mount SC-70-6 package with 6 pins.
Temperature operation range from -40°C to 125°C supports harsh environments. AEC-Q100 qualification ensures automotive-grade reliability. Designed for accurate current sensing in telecom and automotive systems. Explore the Electronics & Electricals category on EnvMart for additional current sensing and amplifier components from leading manufacturers to support your design requirements.
Explore more products in our Current Sensing Amplifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a supply voltage range from 2.7V to 26V.
The amplifier supports a wide common mode voltage range from -0.3V to 26V.
The quiescent current consumption is 5mA, which enhances energy efficiency.
It features a high common mode rejection ratio (CMRR) of 105dB, which enhances measurement accuracy.
This model operates reliably across a temperature range from -40°C to 125°C.
It has compact dimensions of 2.2mm in length and 1.1mm in height, suitable for space-constrained designs.
This current sensing amplifier features a single channel.
It comes in a SC-70-6 surface-mount package.
Yes, it meets the automotive standard AEC-Q100, ensuring reliability in automotive environments.
The gain bandwidth product (GBP) is 100kHz.
It is designed with a zero-drift architecture to minimize gain error and offset drift.
This model is optimized for current sensing in telecommunications equipment and automotive current monitoring.
