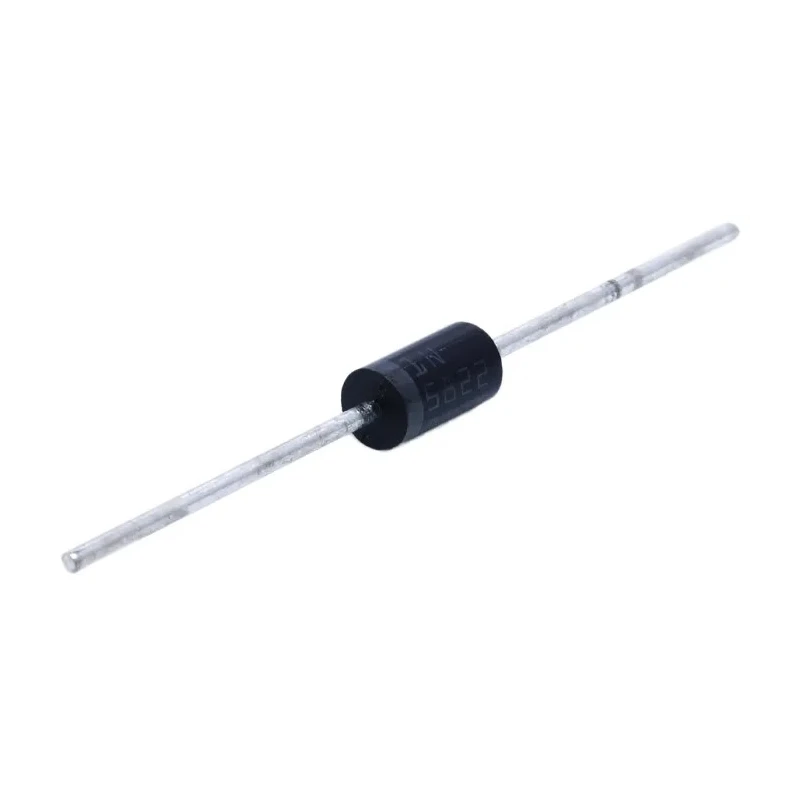

STMicroelectronics 40 V 3 A Through Hole Schottky Diode 2-Pin DO-201AD 1N5822RL
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1N5822RL |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1N582x |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 0.95V |
Key Features
- Maximum continuous forward current of 3 amperes.
- Peak reverse repetitive voltage rated at 40 volts.
- Very low forward voltage drop of 0.95 volts.
- Operates reliably from -65°C up to 150°C.
- Compact DO-201AD 2-pin package measuring 9.5 mm in length.
- Designed for rectification and switching applications with single diode configuration.
- Peak non-repetitive forward surge current capability of 80 amperes.
- Maximum peak reverse current of 2 milliamperes enhances efficiency.
Product Description
STMicroelectronics 1N5822RL is a 40 V, 3 A Schottky diode designed for through hole mounting with a DO-201AD 2-pin package. This diode is characterized by a low forward voltage, making it ideal for power rectification and high efficiency switching applications in electronic circuits.
The component operates reliably across a wide temperature range from a minimum of -65°C to a maximum of 150°C, ensuring durability in demanding industrial environments. Its peak non-repetitive forward surge current of 80 A provides enhanced robustness during transient conditions.
The diode features a small form factor with precise dimensions - 9.5 mm length and 5.3 mm diameter and width - allowing compact installation on printed circuit boards while maintaining excellent electrical performance.
With a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 40 V, it is well suited for discrete semiconductor applications requiring efficient power rectification and fast switching performance.
Additional characteristics include a maximum forward voltage drop of 0.95 V and a peak reverse current of 2 mA. The diode configuration is single, aligning with standard Schottky barrier diode uses. There are no specific automotive certifications for this model.
Maximum continuous forward current of 3 amperes. Peak reverse repetitive voltage of 40 volts. Low forward voltage drop of 0.95 volts. Temperature range from -65°C to 150°C. Compact DO-201AD package with 2 pins. Peak non-repetitive forward surge current of 80 amperes.
Peak reverse current limited to 2 milliamperes. Single diode configuration for discrete semiconductor use. Designed by STMicroelectronics for reliable power and connector applications.
This Schottky diode is suitable for industrial, electronic manufacturing, power supply design, and equipment requiring efficient rectification and voltage clamping. It supports applications in power conversion, automotive subsystems (non-certified), and semiconductor discrete device requirements.
Explore more semiconductors and Diode components in our Electronics & Electricals category for specialized industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 3 amperes.
It has a peak reverse repetitive voltage rating of 40 volts.
The maximum forward voltage drop is 0.95 volts.
This diode operates reliably from -65°C to 150°C.
The 1N5822RL comes in a DO-201AD package type with a 2-pin configuration.
It can handle a peak non-repetitive forward surge current of 80 amperes.
The peak reverse current is limited to 2 milliamperes.
The diode measures 9.5 mm in length and has a diameter of 5.3 mm.
This model is a Schottky rectifier.
It is suitable for power rectification and high efficiency switching applications in electronic circuits.
The 1N5822RL is manufactured in India.
This diode belongs to the 1N582x series.
