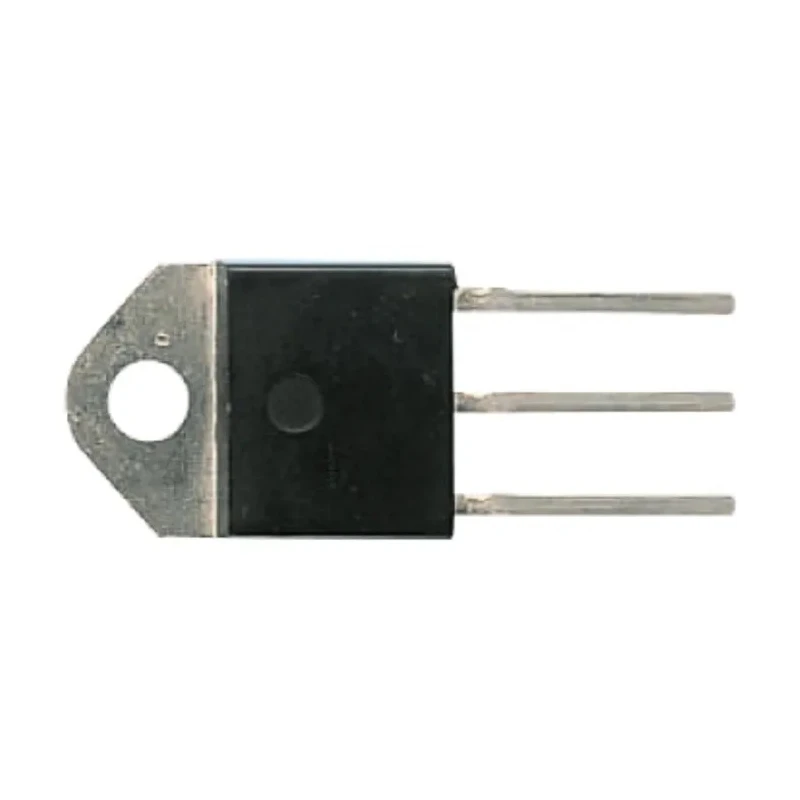

STMicroelectronics Thyristor 1200 V 610 A 32 A 80 mA 1.9 V TOP3 3-Pin BTW69-1200RG

STMicroelectronics BTW69-1200RG Thyristor 1200 V 610 A 32 A 80 mA 1.9 V TOP3 3-Pin is a silicon controlled rectifier designed for effective power switching and control in industrial and electronic applications. The device features a through-hole TOP3 package with three pins, making it easy to integrate into various circuits requiring reliable on-state current and voltage ratings.

The device supports a repetitive peak reverse voltage (VDRM) of 1200V and a surge current rating of 610A, ensuring it can handle demanding peak power conditions. Its rated average on-state current is 32A, paired with a peak on-state voltage of 1.9V, which results in efficient operation with minimal power dissipation.

With a maximum operating temperature of 125°C, the BTW69-1200RG Thyristor maintains performance under elevated thermal conditions. It features a maximum gate trigger current of 80mA and a maximum gate trigger voltage of 1.3V, providing precise and sensitive triggering necessary for power control applications. The maximum holding current of 150mA helps ensure the device maintains conduction once triggered.

The thyristor is widely used in industrial electronics, power rectification, motor control, and other semiconductor switching applications requiring high current and voltage handling capability. The package and pin configuration facilitate easy through-hole mounting for both prototype and production environments.

It is compliant with no special automotive or standards approvals and is suitable for general power control applications. Rated average on-state current of 32A enables robust current handling. Repetitive peak reverse voltage rating is 1200V for high voltage applications.

Surge current rating of 610A ensures capacity to handle transient surges. Through-hole TOP3 package type simplifies mounting processes. Operates reliably at temperatures up to 125°C. Supports a maximum gate trigger current of 80mA for sensitive control.

Contains 3 pins for straightforward circuit integration. Maximum holding current of 150mA ensures stable conduction after triggering. Maximum gate trigger voltage of 1.3V for precise activation. Low peak on-state voltage of 1.9V reduces conduction losses during operation.
