STMicroelectronics Brushed DC Motor Driver IC 48 V 1 A Full Bridge 20-Pin SOIC L6201

Free Delivery in India | Lowest Global Shipping Charges

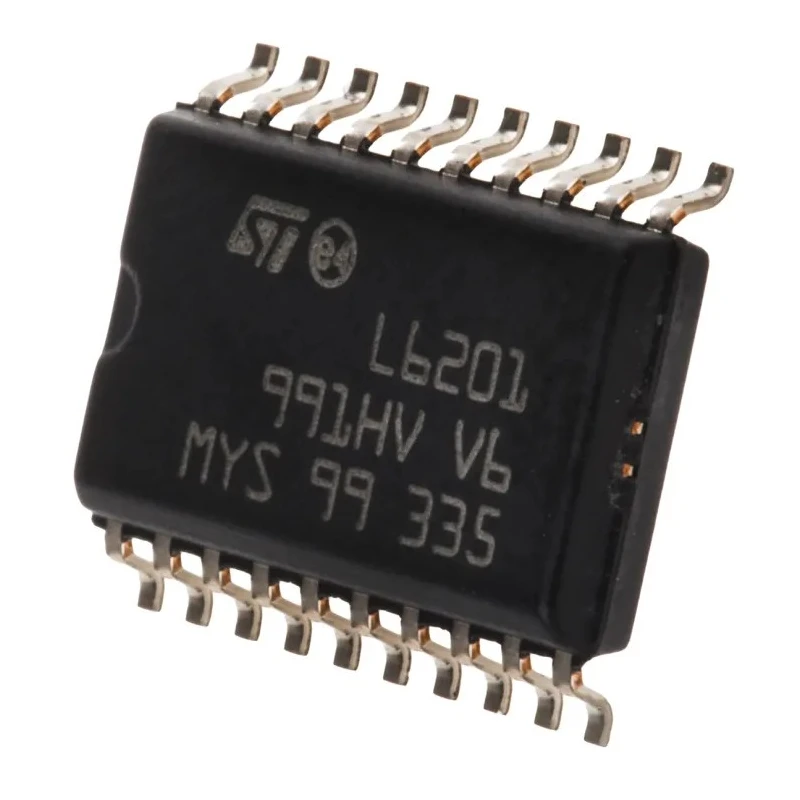

STMicroelectronics Brushed DC Motor Driver IC 48 V 1 A Full Bridge 20-Pin SOIC L6201

Name: STMicroelectronics Brushed DC Motor Driver IC 48 V 1 A Full Bridge 20-Pin SOIC L6201
Brand: STMicroelectronics
SKU: 219140
Price: 12.7 USD
Availability: InStock



Category Motor Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.35mm
Length	13mm
Model	L6201
Width	7.6mm
Motor Type	Brushed DC Motor
Mount Type	Surface
Series	L6201
Configuration	Full Bridge
Output Current	1A
Maximum Operating Temperature	150°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Pin Count	20
Maximum Collector Emitter Voltage Vceo	48V
Maximum Supply Voltage	48V
Minimum Supply Voltage	12V
Supply Current	30μA
Maximum IGBT Collector Current	1A
Typical Switching Frequency	100kHz
Inverter Power Rating	4W

Key Features

Supports brushed DC motors with full bridge configuration for versatile motor control.
Operates within a supply voltage range of 12V to 48V for flexible application use.
Maximum collector emitter voltage rating is 48V ensuring robust operation.
Tolerates operating temperatures from -40°C up to 150°C for industrial environments.
Typical switching frequency of 100 kHz for efficient motor driving performance.
Compact SOIC package with 20 pins and dimensions 13 mm x 7.6 mm x 2.35 mm.
Low quiescent supply current of 30 μA to optimize power consumption.
Inverter power rating of 4 W suitable for moderate power motor applications.

Product Description

STMicroelectronics L6201 is a brushed DC motor driver IC with full bridge configuration, designed to efficiently drive motors within a 12V to 48V supply voltage range and deliver up to 1A output current. It is housed in a compact 20-pin SOIC surface mount package, measuring 13 mm length, 7.6 mm width, and 2.35 mm height.

This IC is optimized for industrial and embedded applications requiring robust motor control, including use with microcontrollers, digital signal processors (DSPs), and field-programmable gate arrays (FPGAs). It supports motor control in applications such as automation, robotics, industrial machinery, HVAC control systems, and other electromechanical devices.

Key electrical features include a maximum collector emitter voltage of 48V, a typical switching frequency of 100 kHz, and low supply current consumption (30 μA). The device operates reliably in extended temperature ranges from -40°C up to 150°C, making it suitable for harsh environmental conditions.

The use of the full bridge configuration allows bidirectional motor control, enabling forward and reverse rotation. Its power rating of 4 watts supports efficient motor driving with precise control.

Supports brushed DC motor control with full bridge topology. Wide voltage supply range from 12V to 48V for versatile use cases. High maximum operating temperature of 150°C for demanding industrial environments. Compact SOIC 20-pin package facilitates easy PCB integration.

Low quiescent current reduces overall system power consumption. Switching frequency optimized at 100 kHz for smooth motor operation. Robust surface mount mount type aids in automated assembly processes. Provides an inverter power rating of 4W to handle moderate load requirements.

This product is intended for use in electronics and electrical engineering applications requiring precise and reliable motor control. It is ideal for professionals working in motor control design, industrial automation, and embedded system integration.

Explore more Motor Driver ICs in the Power Management ICs category on EnvMart for additional components designed to meet diverse industrial motor control needs.
