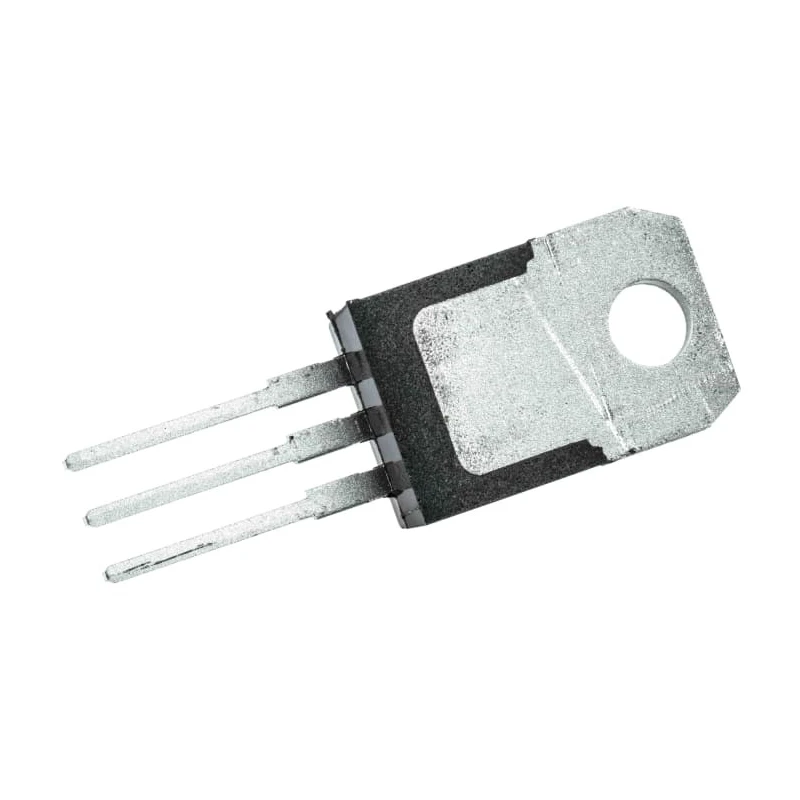

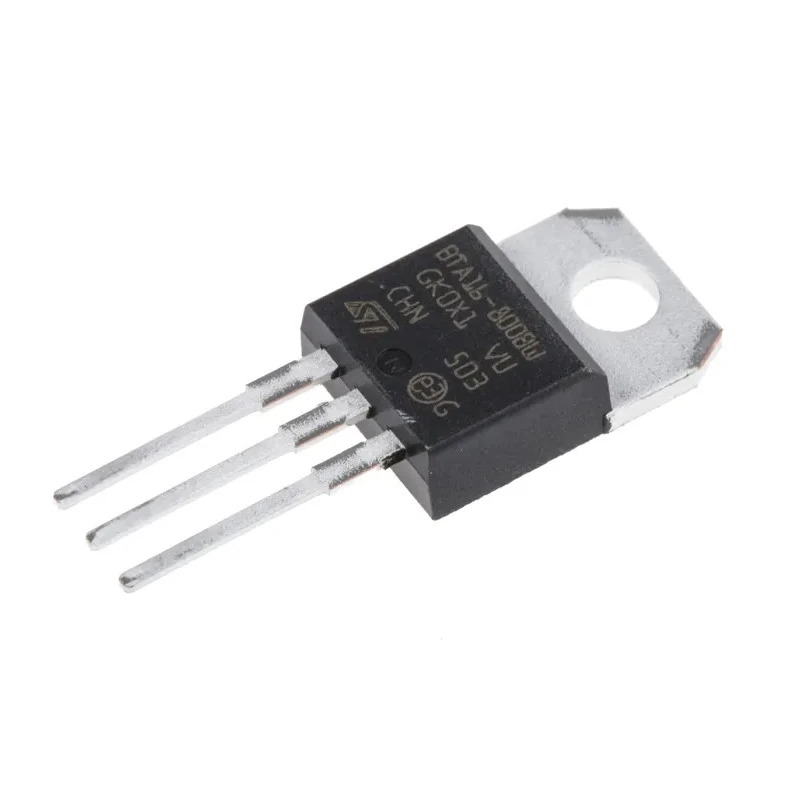

STMicroelectronics Through Hole 3-Pin TRIAC 16A 800V TO-220 Package BTA16-800BWRG

STMicroelectronics BTA16-800BWRG is a through hole 3-pin TRIAC designed for switching AC load currents with a rated average on-state current (Irms) of 16A and a repetitive peak reverse voltage of 800V. The device is housed in a TO-220 package enabling efficient thermal dissipation and easy mounting on printed circuit boards.

This TRIAC features a maximum gate trigger voltage of 1.3V and maximum gate trigger current of 50mA, making it suitable for sensitive gate trigger circuits. It can operate reliably over a wide temperature range from -40°C to 125°C, supporting diverse applications in industrial and commercial electronics.

The device supports a peak surge current of 168A, providing tolerance to transient spikes often encountered in motor control, lighting, and heating applications. With a peak on-state voltage of 1.55V and a maximum holding current of 50mA, it offers dependable switching performance.

The compact dimensions with a length of 10.4mm and height of 9.3mm facilitate low-profile circuit layouts. Its 3-pin single configuration simplifies integration in AC load control circuits.

Rated average on-state current: 16A. Repetitive peak reverse voltage: 800V. Maximum gate trigger voltage: 1.3V. Surge current rating: 168A. Operating temperature range: -40°C to 125°C. TO-220 through-hole mounting package.

Compact size for versatile PCB layouts. Reliable triggering and switching performance.

This TRIAC is ideal for industrial and consumer applications such as dimming controls, motor speed controls, and switching resistive or inductive loads. It supports use cases in manufacturing, automation, HVAC controls, and power management electronics.
