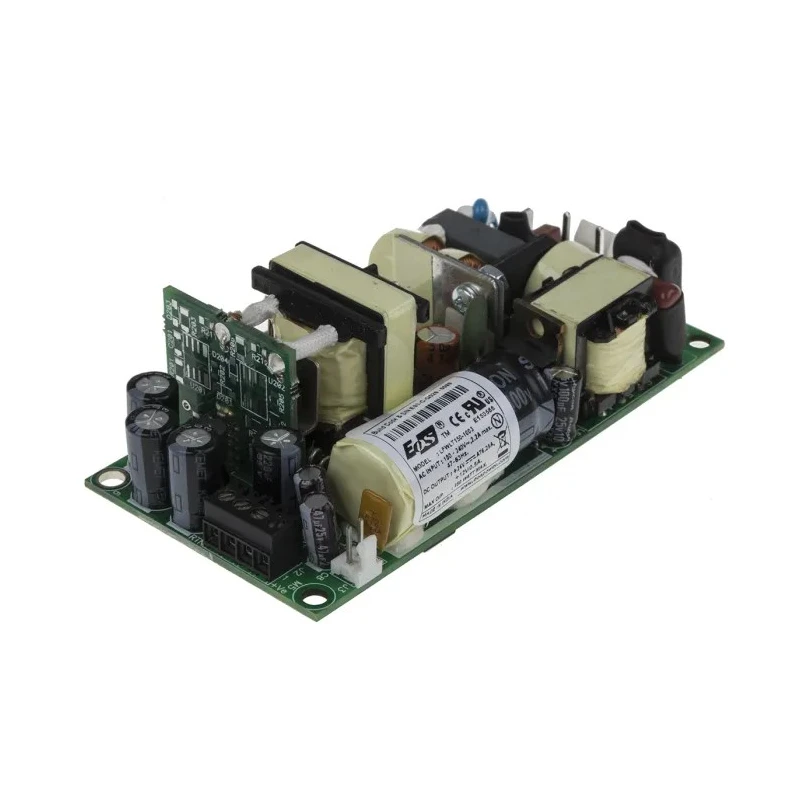

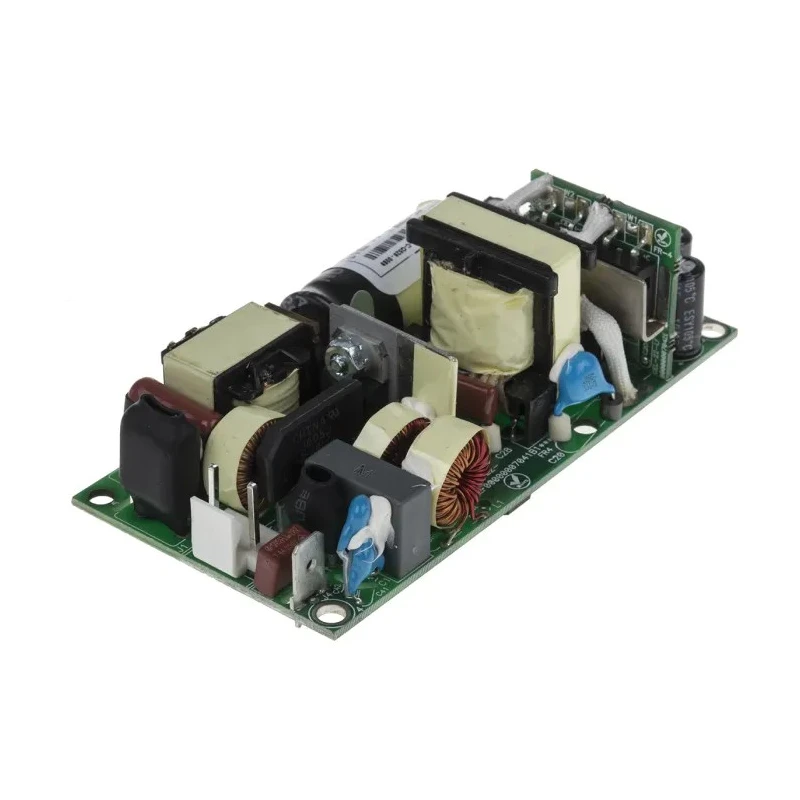

EOS Switching Power Supply 24V DC, 150 W, 390V AC Chassis Mount LFWLT150-1003

EOS LFWLT150-1003 Switching Power Supply is a versatile 150 W convection cooled device designed for reliable power conversion with universal AC input voltage ranging from 90 to 390 V. This chassis mount power supply delivers a stable 24 V DC output at a maximum current of 6.25 A, featuring overvoltage, power limit, and short circuit protections for enhanced safety and durability.

The power supply measures 101.6 mm in length, 50.8 mm in width, and 33.64 mm in depth, making it compact and suitable for space-constrained industrial and telecommunications equipment. Operating temperature spans -20°C to 70°C, with derating above 51°C to maintain performance.

The unit achieves efficiency levels greater than 86%, helping reduce power waste and operating costs. It complies with CE and IEC EN 61000 standards for electromagnetic compatibility, ensuring minimal interference in sensitive electronic environments. This lightweight 150g power supply includes screw terminal connections and is part of EOS's LFWLT series, with Class 1 and Class 2 variants available.

Typical applications include industrial automation, telecommunications systems, data networking, and process control products requiring efficient and reliable DC power. An optional accessory cover is available to enhance mechanical protection and environmental resistance.

The power supply features a compact open frame convection cooled design with a 2x4 inch chassis mount. It provides a single output with 6.25A maximum output current at 24V DC. Operating temperature range is from -20°C to 70°C, ensuring durability in harsh environments.

It offers high efficiency of approximately 86%, minimizing energy losses. Safety features include overvoltage, power limit, and short circuit protection. Lightweight construction at 150 grams allows easy integration into various systems.

Meets CE and IEC EN 61000 EMC standards, ensuring low radiated and conducted noise. Suitable for industrial, telecommunications, data networking, process control, and automation products. Optional cover accessory available for added protection.
